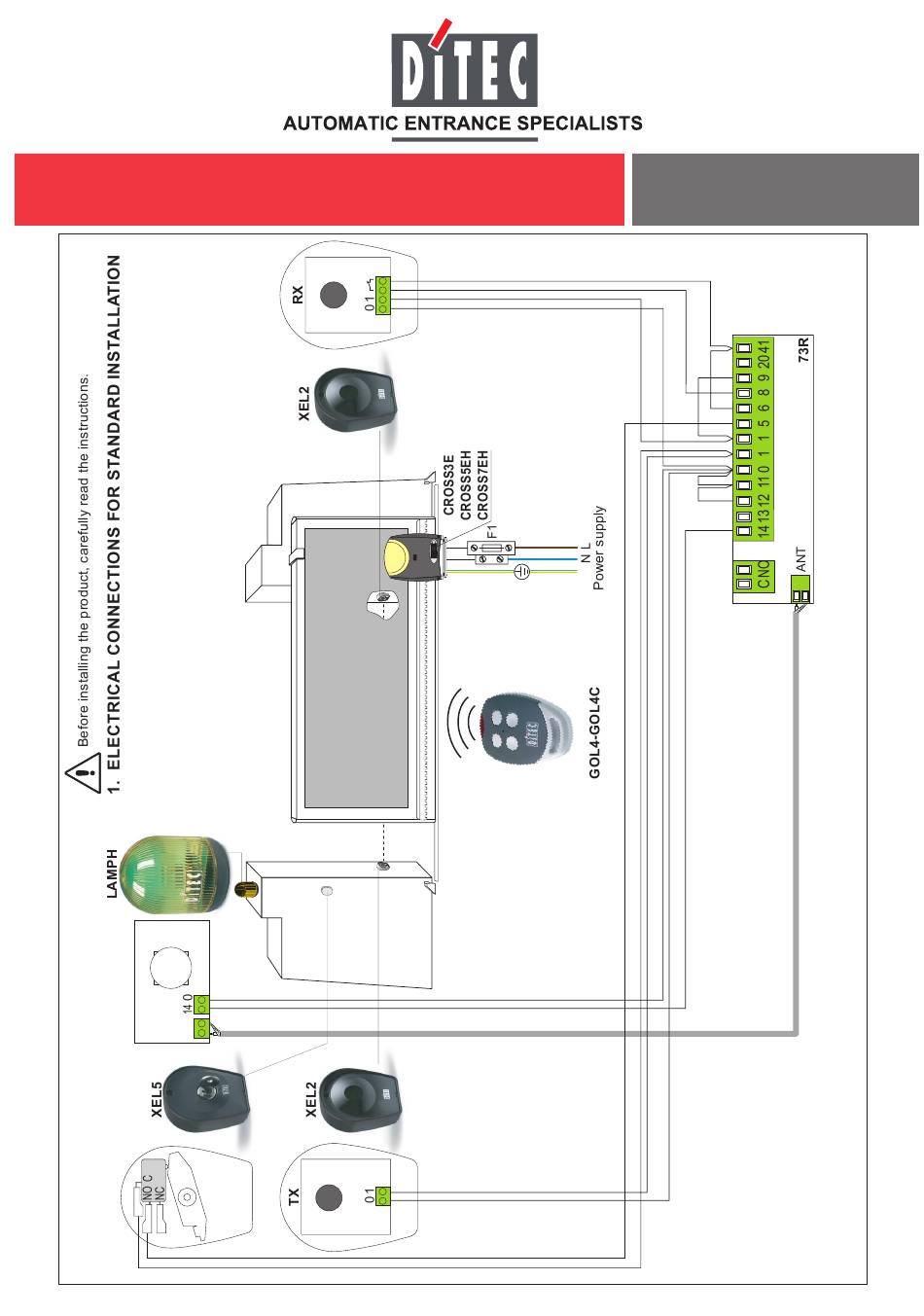

- Page 1 CROSS3E/5EH/7EH - 73R IP2006 QUICK REFERENCE rev. 2008-08-04 4x0,5 mm² 3x1,5 mm² 2x1,5 mm² RG58 (max 10 m) 4x0,5 mm² 4x0,5 mm²...
- Page 2 2. LIMIT SWITCHES CONNECTION FOR CROSS5EH - CROSS7EH ONLY (OPTIONAL) FCMCR FCMCR Adjust the limit switch brackets! Adjust the limit switch brackets! 1° Remove the bridges! 2° Connect the limit switches! CROSS3E/5EH/7EH-73R QUICK REFERENCE - IP2006...
- Page 3 3.1 USAGE WITHOUT LIMIT SWITCHES DIP2=OFF VA opening 1° speed setting CLOSING OPENING CYCLE CYCLE VC closing 2° speed setting Slow down speed CLOSING OPENING MECHANICAL STOP MECHANICAL STOP DIP2=ON OPENING CLOSING VA opening 1° CYCLE CYCLE speed setting VC closing 2°...
- Page 4 73R control panel instruction manual and BIXLR22 radio instruction manual. DITEC S.p.A. Via Mons. Banfi, 3 - 21042 Caronno Pertusella (VA) - ITALY Tel. +39 02 963911 - Fax +39 02 9650314 www.ditec.it - ditec@ditecva.com CROSS3E/5EH/7EH-73R QUICK REFERENCE - IP2006...
