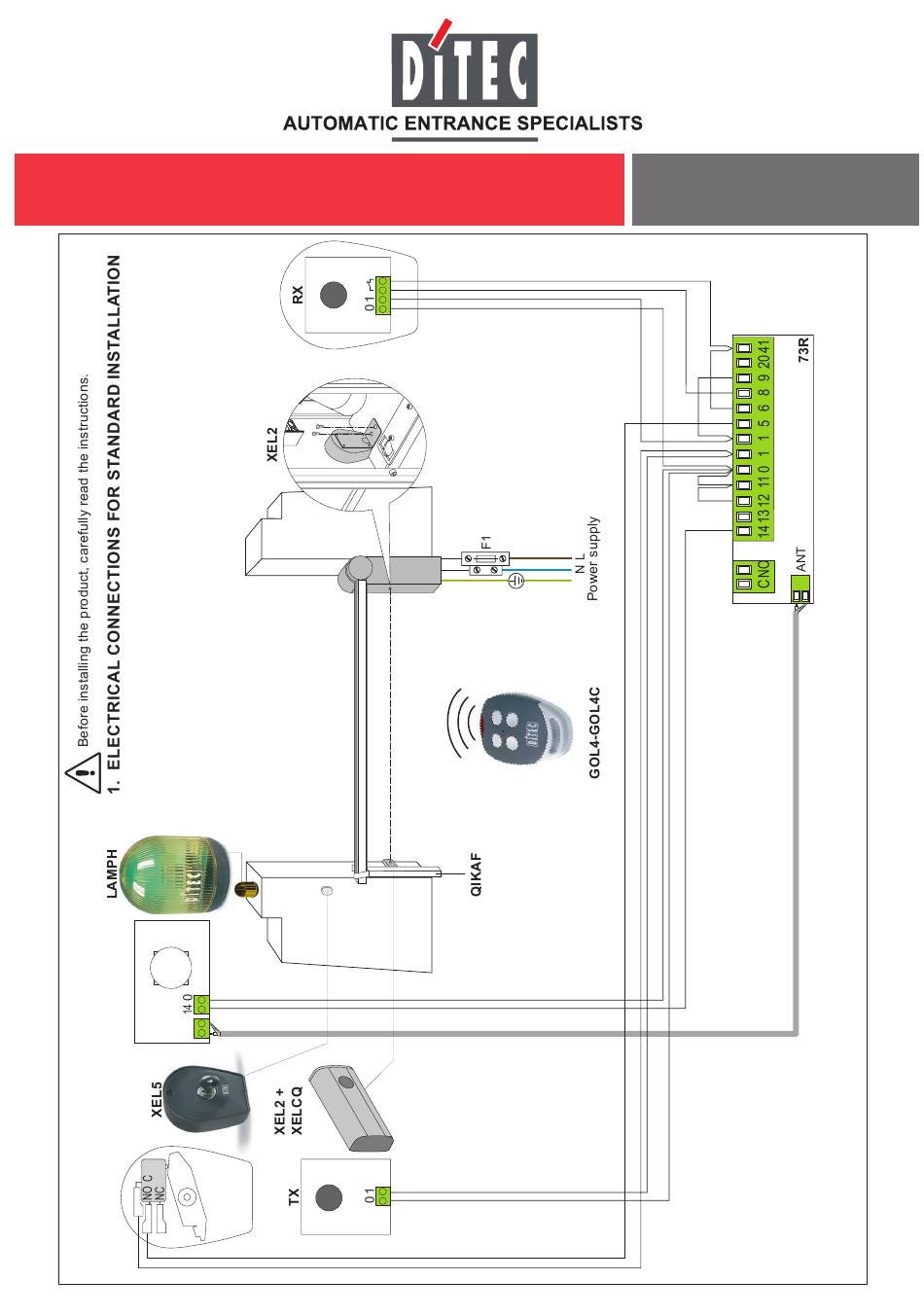

- Page 1 QIK7EH - 73R IP2007 QUICK REFERENCE rev. 2008-08-04 4x0,5 mm² 3x1,5 mm² 2x1,5 mm² RG58 (max 10 m) 4x0,5 mm² 4x0,5 mm²...
- Page 2 2. 73R STANDARD SETTING DIP2 = ON LEFT OPENING DIP1 = ON OPENING RADIO MODE 1 2 3 4 5 DIP1 = OFF STEP BY STEP RADIO MODE DIP2 = OFF VA VC TC R1 RIGHT OPENING C NO 14 13 12 11 0 1 1 5 6 8 9 20 41 3.
- Page 3 For different setting and further information consult the QIK7EH automation instruction manual, the 73R control panel instruction manual and BIXLR22 radio instruction manual. DITEC S.p.A. Via Mons. Banfi, 3 - 21042 Caronno Pertusella (VA) - ITALY Tel. +39 02 963911 - Fax +39 02 9650314 www.ditec.it - ditec@ditecva.com QIK7EH - 73R QUICK REFERENCE - IP2007...
Need help?
Do you have a question about the QIK7EH-73R and is the answer not in the manual?
Questions and answers
We have a Ditec QIK 7EH Barrier arm system, the IN arm has gone up and stayed up, we have wiped the moisture off all the sensors unlike the exit the IN has stayed up. Unlocking and manually pulling the arm down and locking again still has not worked.
A possible cause of the DITEC QIK 7EH barrier arm staying up, despite cleaning the sensors and attempting a reset, could be incorrect DIP switch settings. For example:
- DIP1 set to ON enables parking usage with immediate closing after passage.
- If DIP3 is not set to OFF in this mode, the barrier may not function correctly.
- Also, if JR3 DIP1 is OFF (step-by-step radio mode) and DIP2 is OFF (right opening), the logic may not match the intended operation.
Incorrect time setting in the automatic closing function or disabled closing (TC time = 0) may also prevent the arm from lowering.
Check and adjust DIP switch and timing settings according to the manual.
