Summary of Contents for DITEC FACIL3EH E2H

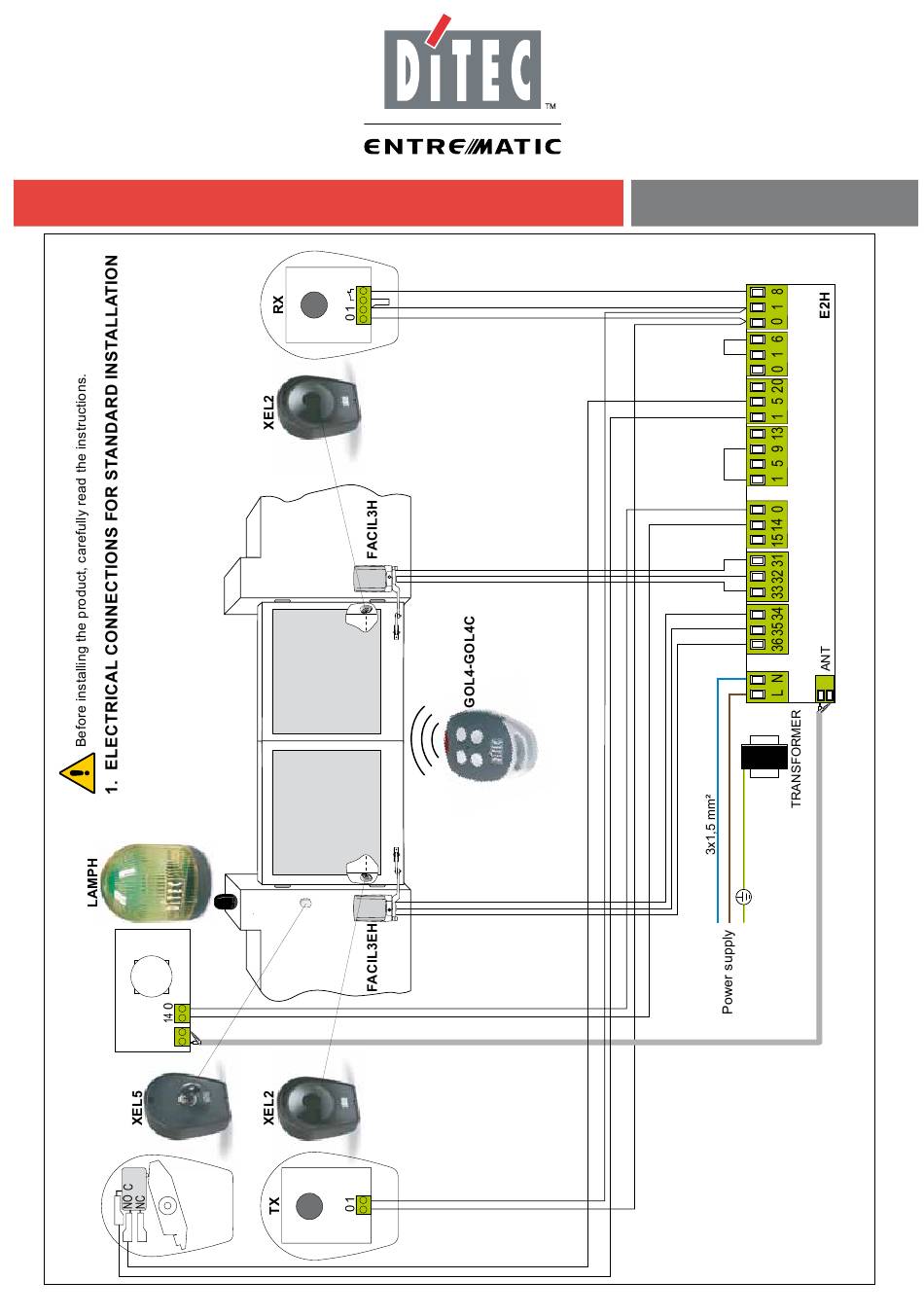

- Page 1 IP2018 FACIL3EH - E2H QUICK REFERENCE rev. 2012-09-26 4x0,5 mm² 3x1,5 mm² (max 10 m) 2x1,5 mm² RG58 (max 10 m) 4x0,5 mm² 4x0,5 mm²...
- Page 2 2. LIMIT SWITCHES CONNECTION (OPTIONAL) BOXFC1 MOTOR 24V= MOTOR 24 V= 1N4007 3. FACIL3EH MOTORS CONNECTION 36 35 33 32 MOTOR 1 MOTOR 2 MOTOR 2 MOTOR 1 24V= 24V= 33 32 36 35 MOTOR 1 MOTOR 2 MOTOR 1 MOTOR 2 24V= 24V=...
- Page 3 4.1 USAGE WITHOUT LIMIT SWITCHES CLOSING MECHANICAL STOP OPENING CYCLE MOTOR 2 MOTOR 1 OPENING OPENING MECHANICAL STOP MECHANICAL STOP CLOSING MECHANICAL STOP CLOSING CYCLE MOTOR 2 MOTOR 1 Slow down OPENING OPENING speed MECHANICAL STOP MECHANICAL STOP 4.2. USAGE WITH STOP LIMIT SWITCHES (OPTIONAL) - DEFAULT SETTING OPENING CYCLE MOTOR 2 MOTOR 1...
- Page 4 For different setting and further information consult the automation instruction manual, the control panel instruction manual and radio instruction manual. DITEC S.p.A. Via Mons. Banfi, 3 21042 Caronno Pertusella (VA) - ITALY Tel. +39 02 963911 - Fax +39 02 9650314 www.ditec.it - ditec@ditecva.com IP2018 • 2012-09-26...
