EN

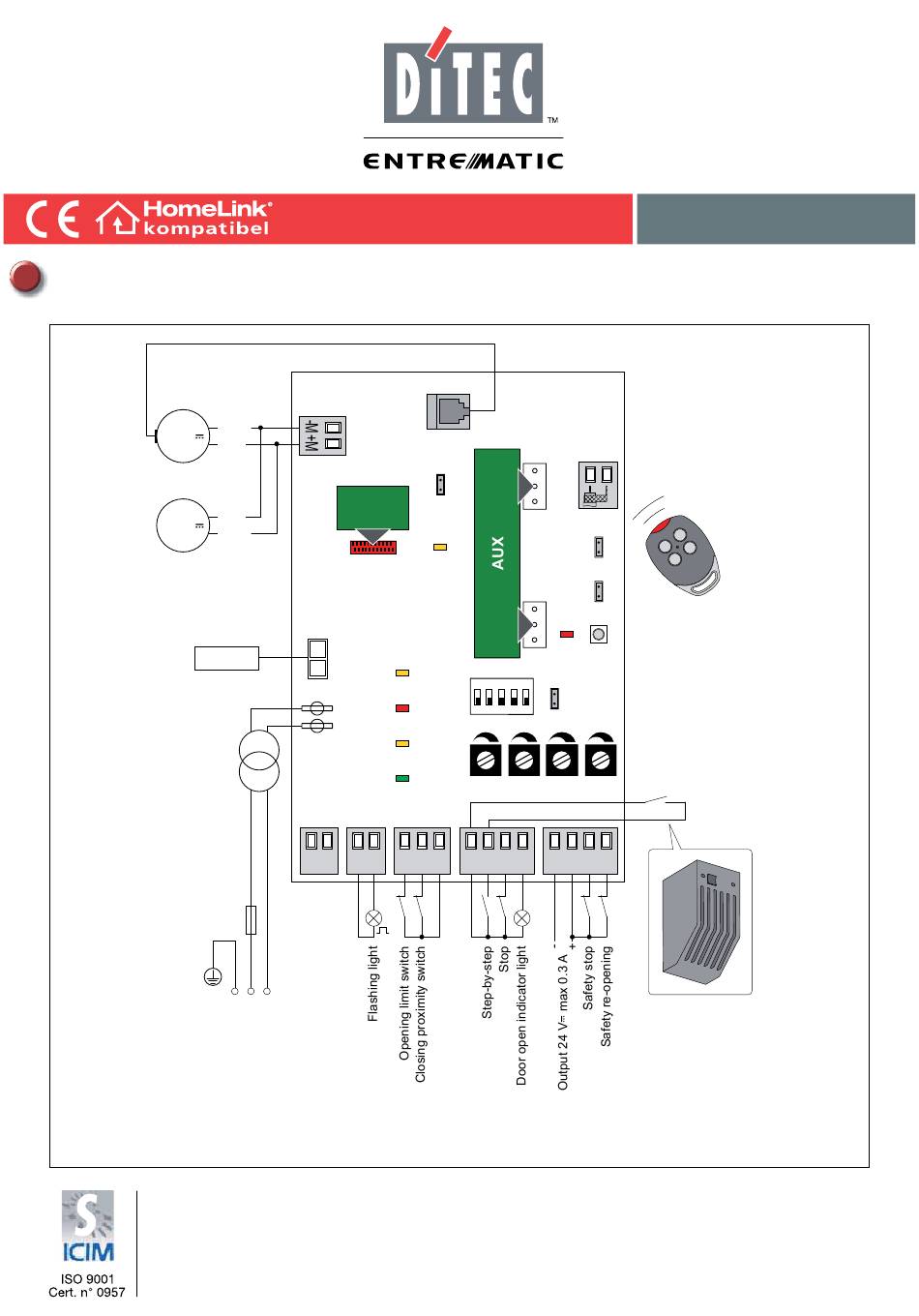

Installation manual for control panel for BOX3EH automation.
Motor 1
24V
Motor 2
24V
Transformer
DITEC S.p.A.
Via Mons. Banfi, 3 - 21042 Caronno Pertusella (VA) - ITALY
Tel. +39 02 963911 - Fax +39 02 9650314
www.ditec.it - ditec@ditecva.com
Black
Blue
BIXMR2
Blue
Black
COM
BAT
BATK4
24 V~
C NO 14 0
F1
Power supply
E1HBOX
ENC
JR4
IN
JR3
11
ON
OFF
1 2 3 4 5
SA
12
VA
VC TC
POWER
ALARM
12 11 0
1 5 9 13
0 1 6 8
IP1982EN
rev. 2012-03-22
ANT
6►4
SO
GOL4
PRG
SIG
R1
Step-by-step

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENTREMATIC E1HBOX and is the answer not in the manual?

Questions and answers

Related Manuals for DITEC ENTREMATIC E1HBOX

Summary of Contents for DITEC ENTREMATIC E1HBOX

  • Page 1 C NO 14 0 12 11 0 1 5 9 13 0 1 6 8 Power supply DITEC S.p.A. Via Mons. Banfi, 3 - 21042 Caronno Pertusella (VA) - ITALY Tel. +39 02 963911 - Fax +39 02 9650314 www.ditec.it - ditec@ditecva.com...

  • Page 2: Table Of Contents

    INDEX Subject Page General safety precautions EC declaration of conformity Technical data 3.1 Applications Connection of power supply Commands Outputs and accessories Adjustments Radio receiver operation Start-up 10. Troubleshooting CAPTION This symbol indicates instructions or notes regarding safety issues which require particular attention. This symbol indicates informations which are useful for correct product function.

  • Page 3: General Safety Precautions

    GENERAL SAFETY PRECAUTIONS This installation manual is intended for quali ed personnel only. The installation, the power connections and the settings must be completed in conformity with Good or ing Methods and with the regulations in force. Before installing the product, carefully read the instructions. Bad installation could be ha ardous. The pac aging materials (plastic, polystyrene, etc.) should not be discarded in the environment or left within reach of children, as these are a potential source of hazard.

  • Page 4: Ec Declaration Of Conformity

    Memorizable radio codes Radio frequency 433.92 MHz NOTE: the given operating and performance features can only be guaranteed with the use of DITEC accessories and safety devices. 3.1 Applications 4. CONNECTION OF POWER SUPPLY Before connecting the power supply, ma e sure the plate data correspond to that of the mains power supply.

  • Page 5: Commands

    COMMANDS Command Function Description N.O. STEP-BY-STEP With DIP1=OFF and TC<MAX, the closing of the contact acti- WITH AUTOMATIC vates opening or closing operations in the following sequence: CLOSING open-stop-close-open. NOTE: the stop is not permanent but lasts for a duration set by TC.

  • Page 6: Outputs And Accessories

    OUTPUTS AND ACCESSORIES Output Value - Accessories Description Accessories power supply. Power supply output for external ac- cessories, including automation status lamp. 24 V 0.3 A Automation status lamp (proportional). The light switches off when the automation is closed; the light 24 V 3 W switches on when the automation is open;...

  • Page 7: Adjustments

    ADJUSTMENTS Description DIP1 Command 1-5 operation. Step-by-step. Opening. NOTE: it also sets operating mode of the plugin cards connected on AUX. DIP2 Motor installation position. Central or right side. Left side. The installation position is intended by viewing the automation from the side be- ing examined.
  • Page 8 Trimmer Description VA-VC Opening speed adjustment. Adjusts the opening speed. Closing speed adjustment. Adjusts the closing speed. Setting automatic closing time. From 0 to 120 s. With DIP3=OFF, once a safety switch has been activated, the counter starts as soon as the safety switch is released (for example after passing through the photocells), and lasts for a period of time set with trimmer TC (50%).

  • Page 9: Radio Receiver Operation

    RADIO RECEIVER OPERATION 10 s The control panel is equipped with a radio receiver with a frequency of 433.92 MHz. The antenna consists of a rigid wire, 173 mm long, connected to the ANT clamp. It is possible to increase the range of the radio by connecting the antenna of the ashing lights, or by installing the tuned BIXAL antenna.

  • Page 10: Start-Up

    START-UP WARNING WARNING The operations in point 4 are performed without safety devices. The operations in point 4 are performed without safety devices. The trimmer can only be adjusted with the automation idle. The trimmer can only be adjusted with the automation idle. Ma e a jumper for the N.C.

  • Page 11: Troubleshooting

    10. TROUBLESHOOTING Problem Possible causes Remedy The automation does not No power. Chec that the control panel is pow- open or close. (POWER ALARM led off). ered correctly. Short circuited accessories. Disconnect all accessories from termi- (POWER ALARM led off). nals 0-1 (voltage must be 24 V ) and reconnect one at a time.
  • Page 12 DITEC S.p.A. Via Mons. Ban , 3 21042 Caronno P.lla (VA) Italy Tel. +39 02 963911 Fax +39 02 9650314 www.ditec.it ditec@ditecva.com DITEC BELGIUM LOKEREN Tel. +32 9 3560051 Fax +32 9 3560052 www.ditecbelgium.be DITEC DEUTSCHLAND OBERURSEL Tel. +49 6171 914150 Fax +49 6171 9141555 www.ditec-germany.de...
