Control Techniques Commander SK Getting Started Manual page 46

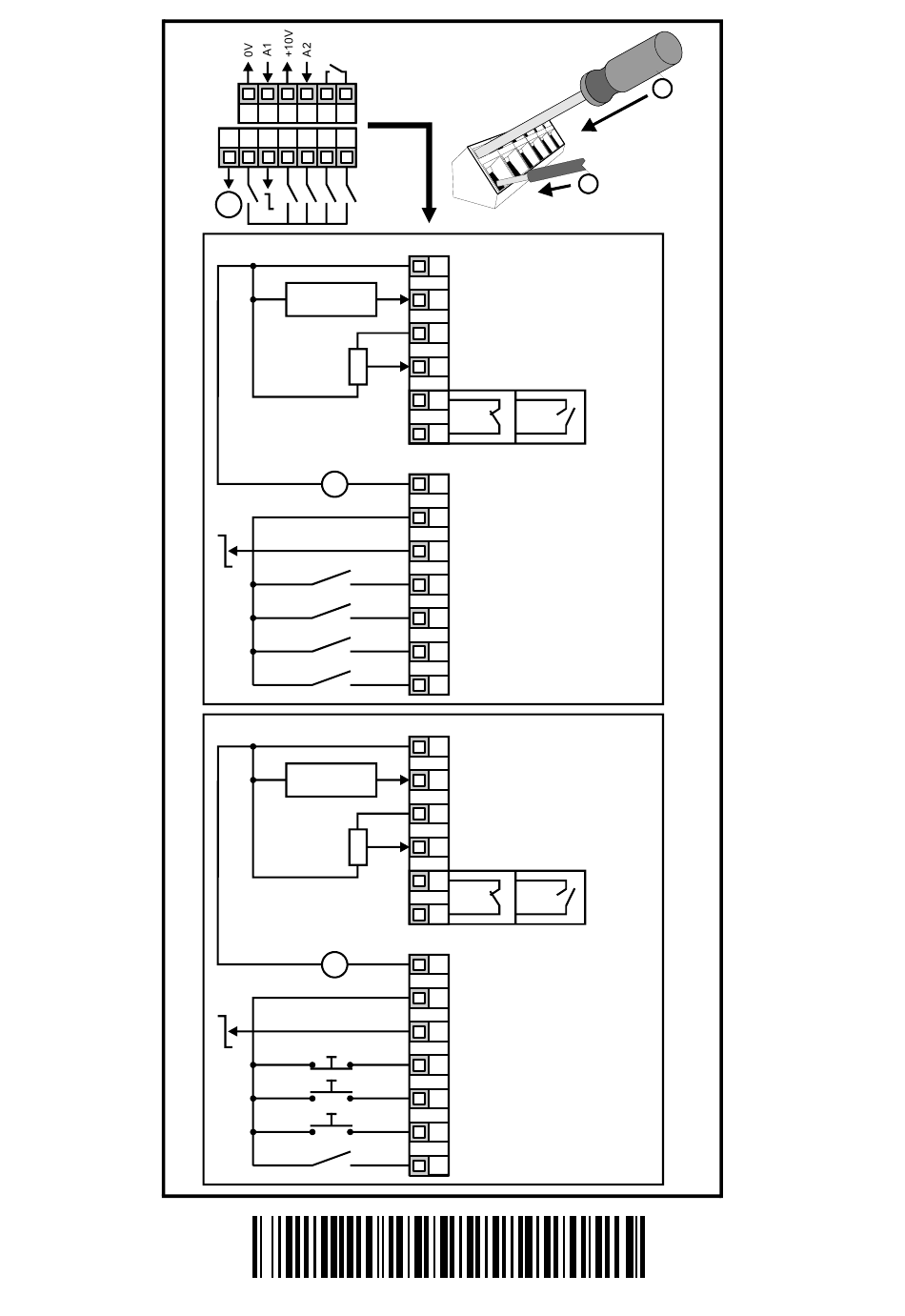

T1 T2 T3 T4 T5 T6
B1 B2 B3 B4 B5 B6 B7
V
Pr 29 = Eur
Remote speed
reference input
10k
(2kmin)
_
+
V
+24V
0V
Pr 29 = USA
Remote speed
reference input
10k
(2kmin)
_
+
V
+24V
0V
0472-0000-01
2
T1 0V
Remote current speed
T2
reference input (A1)
T3 +10V reference output
Local voltage speed
T4
reference input (A2)
T5
OK Fault
T6
Analog output
B1
(motor speed)
B2 +24V output
Digital output
B3
(zero speed)
B4 Drive Enable/Reset
B5 Run Forward
B6 Run Reverse
Local (A2)/Remote (A1)
B7
speed reference select
T1 0V
Remote current speed
T2
reference input (A1)
T3 +10V reference output
Local voltage speed
T4
reference input (A2)
T5
OK Fault
T6
Analog output
B1
(motor speed)
B2 +24V output
Digital output
B3
(zero speed)
B4 Not stop
B5 Run
B6 Jog
Local (A2)/Remote (A1)
B7
speed reference select
1
