Quick Start Commissioning

This procedure is written from default parameter settings as the drive would be
delivered from the factory.
7.1

Terminal control

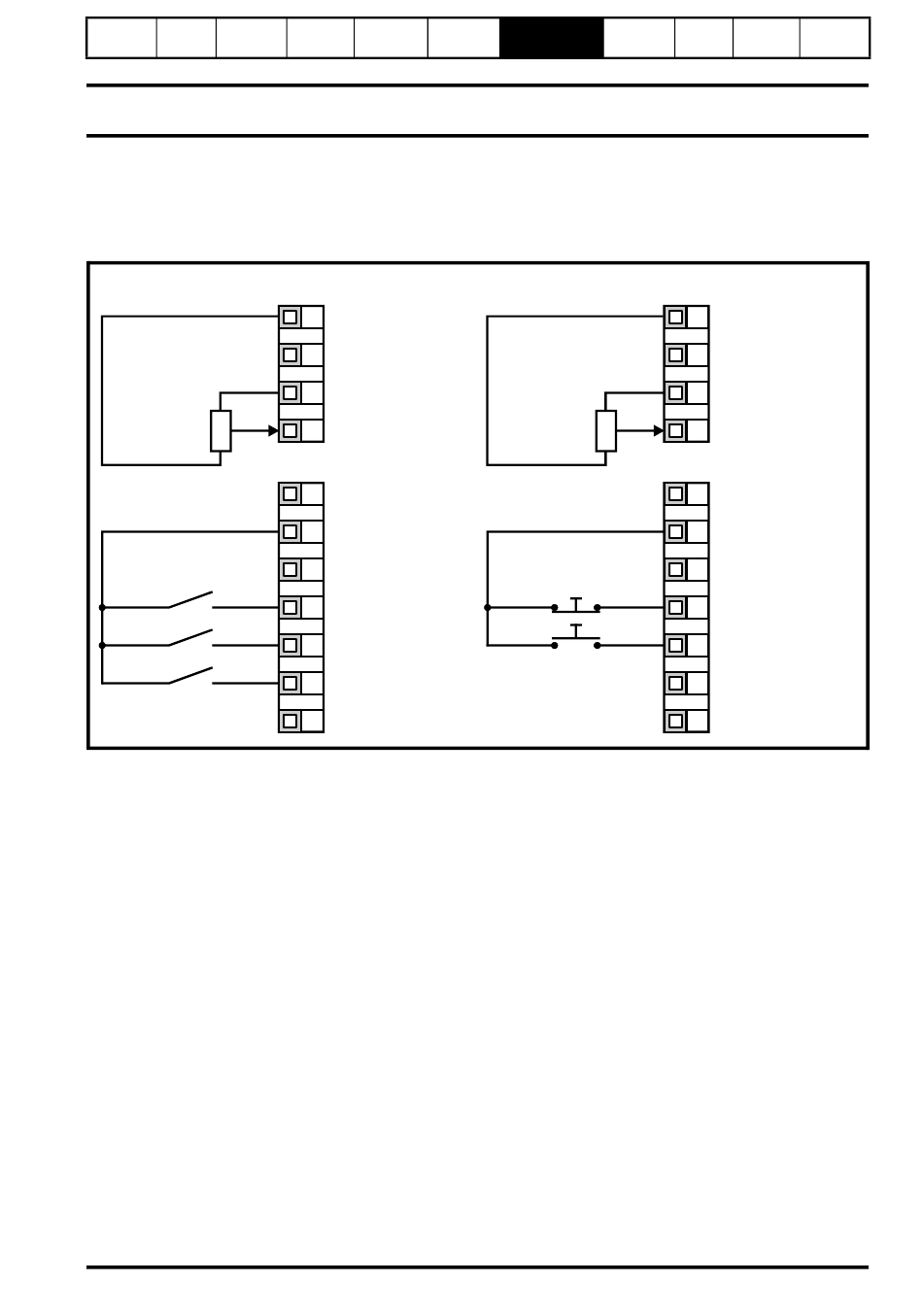

Figure 7-1 Minimum required control terminal connections
EUR
10k
(2kmin)
Speed
potentiometer
Commander SK Getting Started Guide
Issue Number: 1
Electrical Keypad and
Parameters
Installation Display
T1 0V
Remote current speed
T2
reference input (A1)
T3 +10V reference output
Low voltage speed
T4
reference input (A2)
Analog output
B1
(motor speed)
B2 +24V output
Digital output
B3
(zero speed)
B4 Drive Enable/Reset
B5 Run Forward
B6 Run Reverse
Local (A2)/Remote (A1)
B7
speed reference select
www.controltechniques.com
Quick Start
Diagnostics Options
Commissioning
USA
10k
(2kmin)
Speed
potentiometer
Parameter UL Listing
List Information
T1 0V
Remote current speed
T2
reference input (A1)
T3 +10V reference output
Low voltage speed
T4
reference input (A2)
Analog output
B1
(motor speed)
B2 +24V output
Digital output
B3
(zero speed)
B4 Not Stop
B5 Run
B6 Jog
Local (A2)/Remote (A1)
B7
speed reference select
