7.2

Keypad control

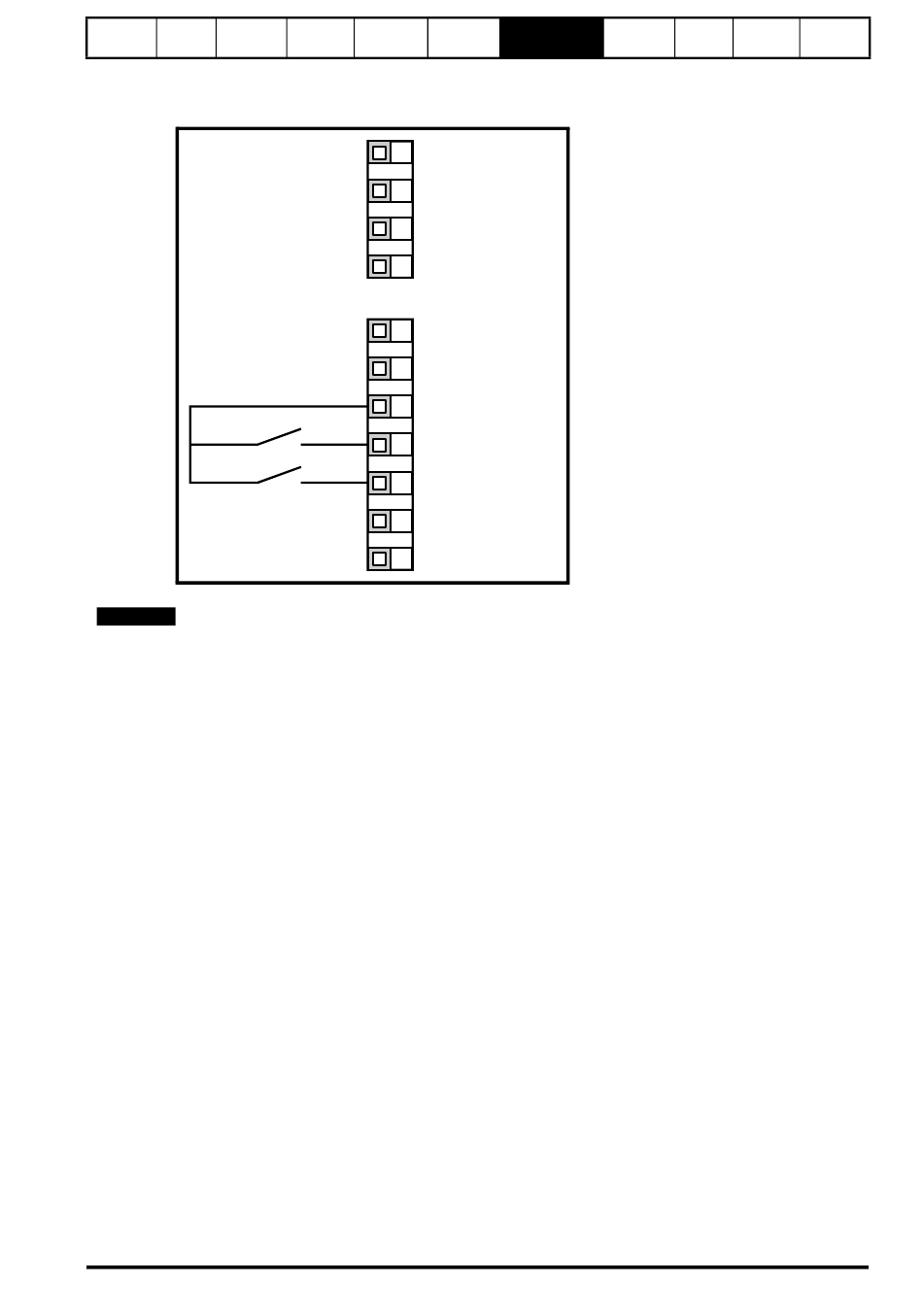

Figure 7-2 Minimum required control terminal connections
To implement a Forward/Reverse switch, see the Commander SK Advanced User Guide.
NOTE
Commander SK Getting Started Guide
Issue Number: 1
Electrical Keypad and
Parameters
Installation Display
T1 0V
T2 Not used
T3 +10V reference output
T4 Not used
Analog output
B1
(motor speed)
B2 +24V output
Digital output
B3
(zero speed)
B4 Drive Enable/Reset
B5 Forward/Reverse
B6 Not used
B7 Not used
