65EP / 65EP+

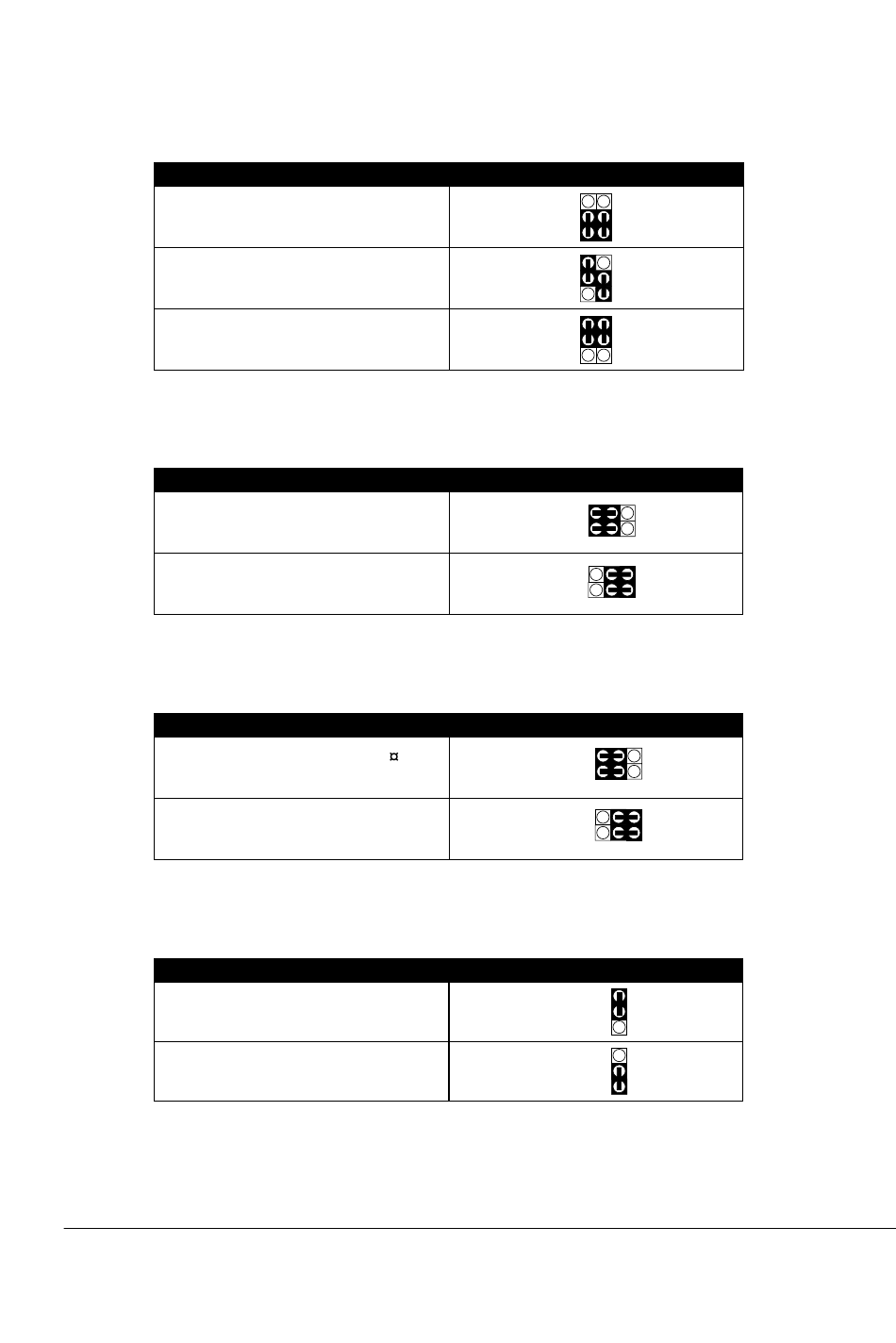

2-7.3 BUS CLOCK SELECT (JP5/JP6)

JP5/JP6: BUS CLOCK SELECT
66MHz / 100MHz / 133MHz
Auto Select (default)
100MHz
133MHz

2-7.4 USB PORT SELECT(1) (JP2/JP8)

JP2/JP8: USB PORT SELECT (1)
Redirect USB port 0 to USB
connector (default)
Redirect USB1 to AGP port

2-7.5 USB PORT SELECT(2) JP9/JP10)

JP9/JP10: USB PORT SELECT (2)
Redirect USB port 1 to USB
connector (default)
Redirect USB1 to CNR port

2-7.6 USB WAKE UP FUNCTION (JP11)

JP11: USB WAKE UP FUNCTION
Disabled (default)
Enabled
NOTE : This Function allows you to use USB mouse or keyboard to wake up the
system and it also allows "USB keyboard wake up from S3 (Suspend To
RAM). The function must be set in junction with "USB keyboard wake
up from S3" that states in BIOS setup "Power Management Setup" section.
22
3
3
JP5 JP6
1
1
3
3
JP5 JP6
1
1
3
3
JP5 JP6
1
1
JP2
JP8
1 3
JP2
JP8
1 3
JP9
JP10
1 3
JP9
JP10
1 3
1
JP11
3
1
JP11
3
