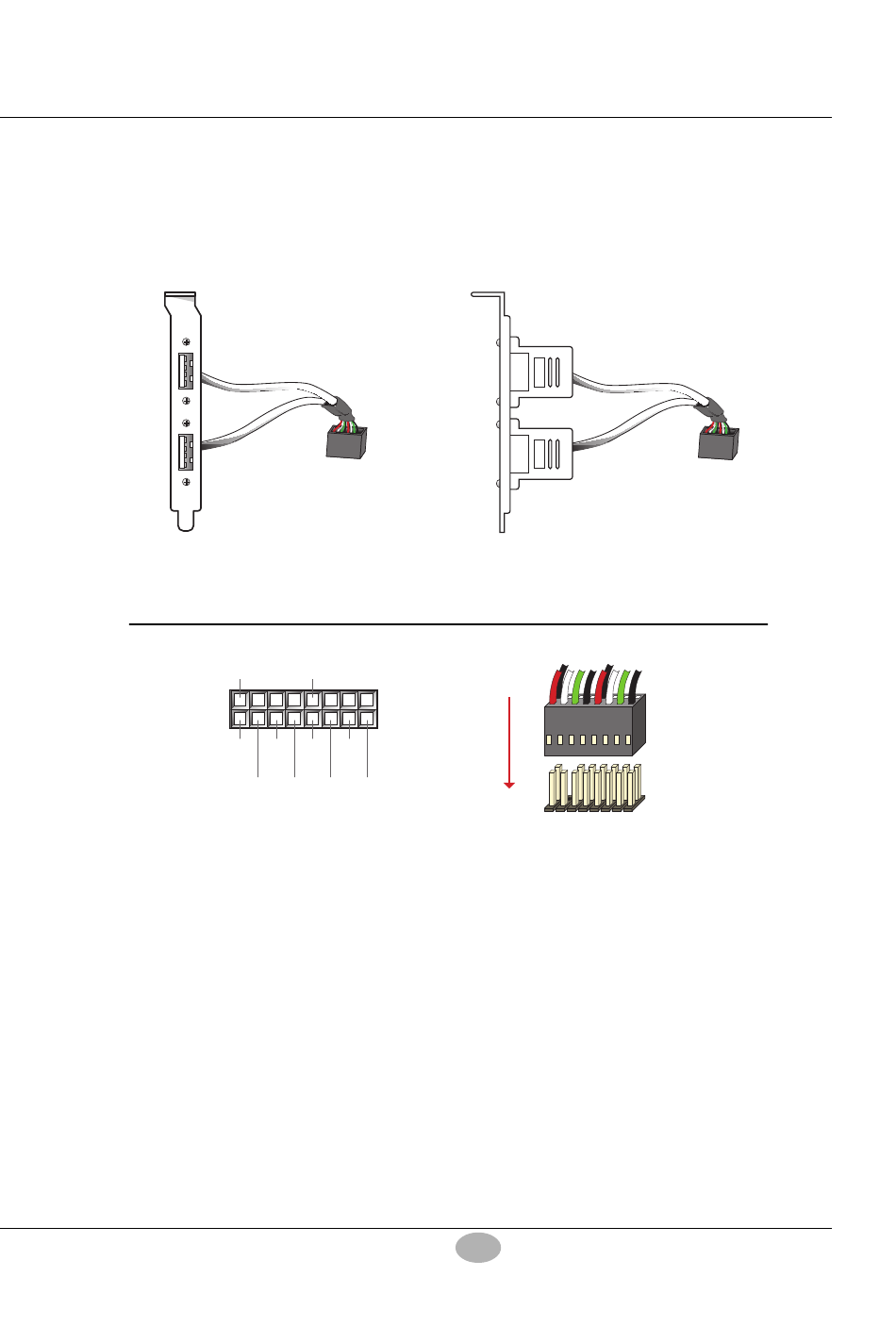

2-6-10 SECOND USB HEADER (USB2)

• This header is for the additional USB cable to provide you two additional
USB ports. Users can order the additional USB cable from your mainboard
dealers or venders.
Additional USB Cable (Optional)
GND
Black
1
Red Green
VCC DO+
White
DO-
• When plugging the USB cable to USB2 header, users must make sure the
red wire is connected to the first pin.
GND
Black
16
Red Green
DO+
VCC
Black White Black
GND DO- GND
USB 2
USB2 HEADER
