Step 6: Configure Network Printer
Attaching Your
Printer to the
Network
Printing a Network
Setup Page
If your Optra T printer is a network model or if you have installed a network option
on a Optra T616, T614, T612, or T610, you can use the instructions in this step to
attach and set up your printer on a network.
1
Turn the printer power off.
2

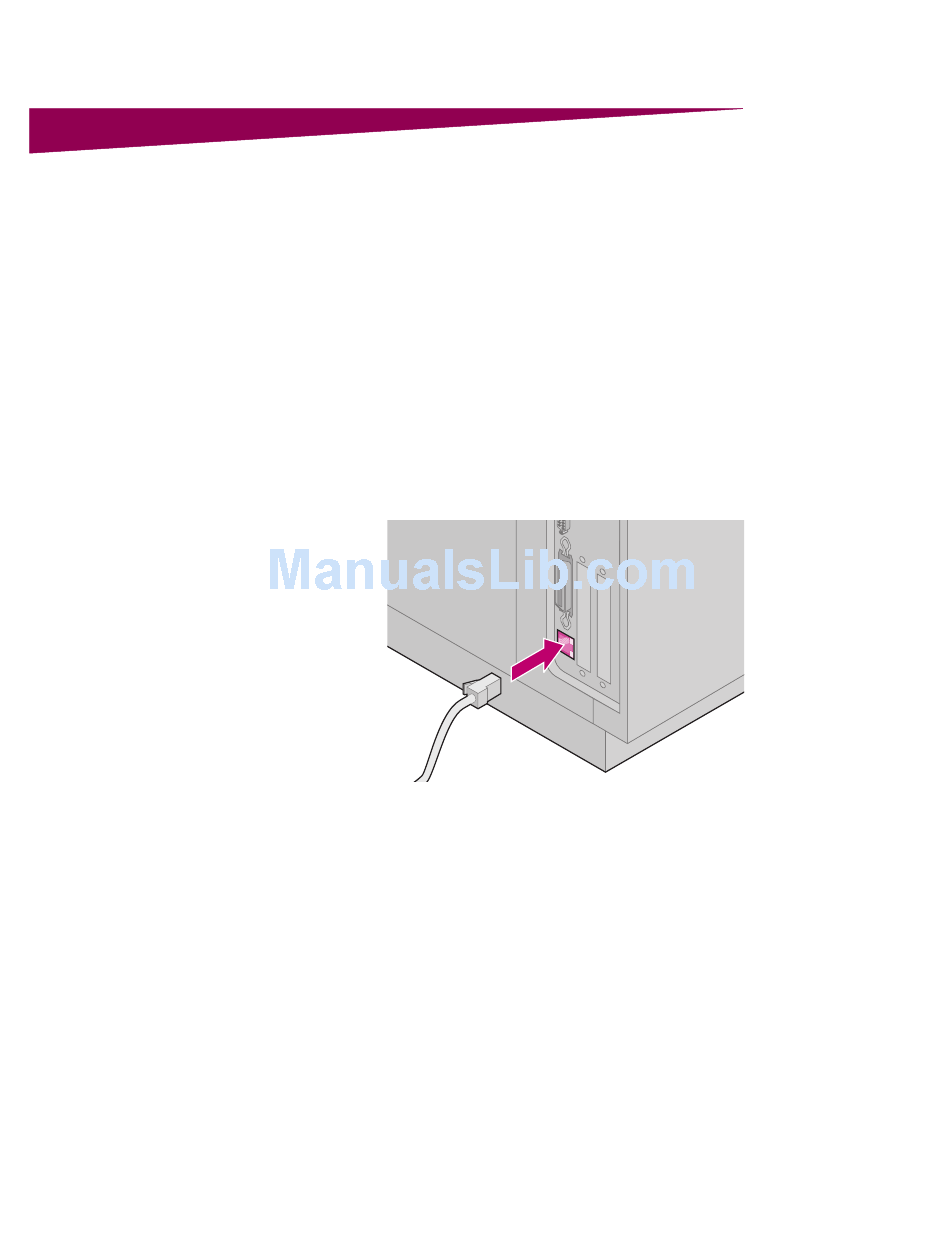

Plug the network cable into the network port.
3
Turn the printer power back on.
Note: If you installed a MarkNet™ print server that has more than one network
port, use only one of the ports.
Use the printer operator panel to print the network setup page. (Hint: Network
Menu, Standard Network, STD Net Setup, Print, Print Setup Page. Or, if you have
a MarkNet card in slot x: Network Menu, Network Option x, Network x Setup,
Print, Print Setup Page.)
The network setup page shows the printer physical address, known as the univer-
sally administered address (UAA), of the print server and other important data.
Look for the UAA under the Network heading on the setup page.
The UAA is a 12-digit number. The left column shows the address in MSB form
and the right column shows the address in canonical form. Save this page to use
later.
Note: The UAA is preset at the factory. However, you can override it with an
optional locally administered address (LAA) if you want some particular
physical address for this printer.
Configure Network Printer 23
