Duplex unit for Optra T610(n)
Back cover
Tab
6 Install Paper Options and Printer

Installing a Duplex Unit

Duplex unit for Optra T616(n),
T614(n) and T612(n)
(back cover curves inward)
Optra T label
(colored triangle)
The duplex unit attaches under the printer, below
the standard input tray and above any paper
drawers.
Refer to the printer User's Guide, available on the
Optra T Publications CD, for information on using
the duplex unit.
1

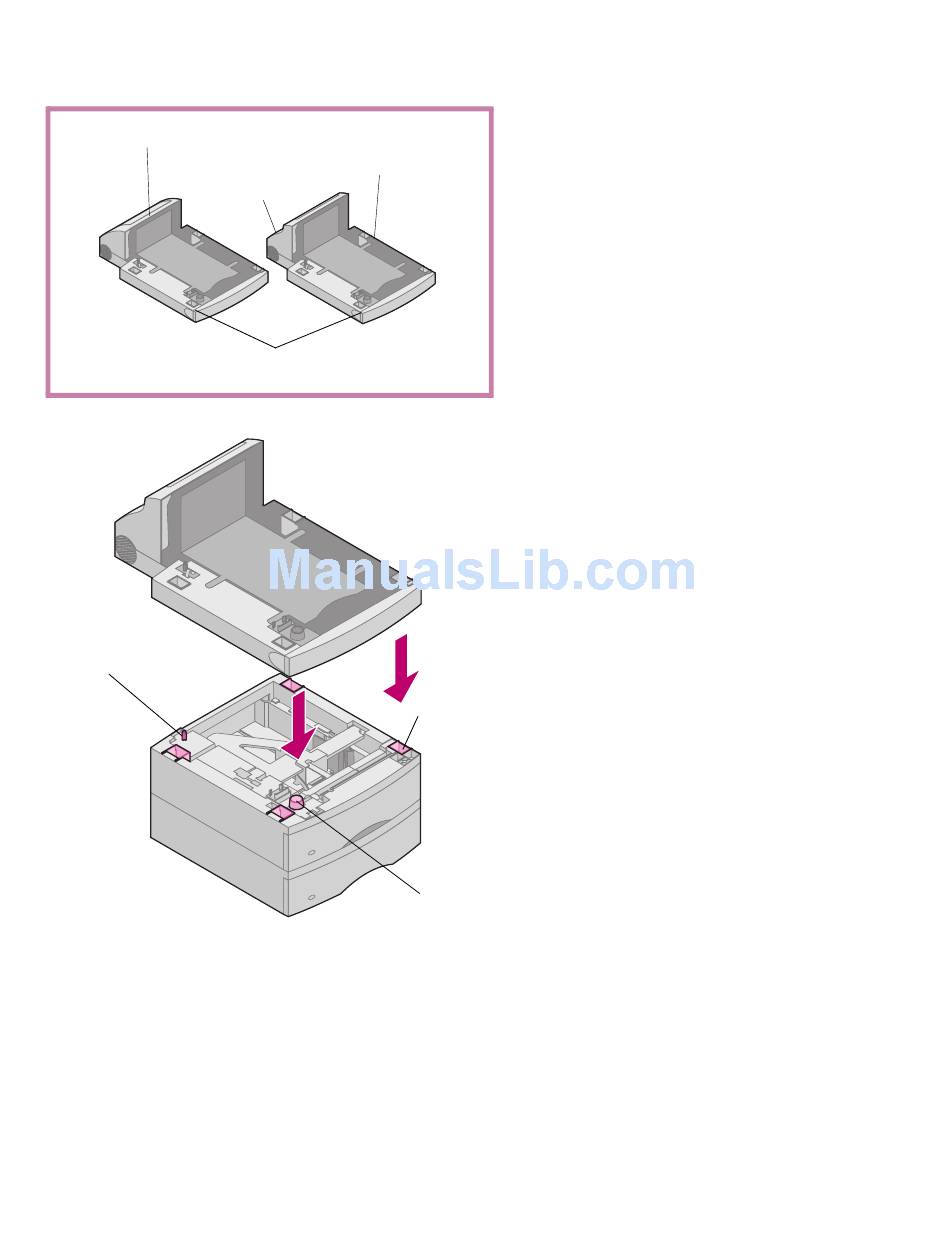

Place the duplex unit on top of any installed
paper drawers, or the table or printer cabinet
where you plan to use the printer.
The tab, round hole and square holes on top
of any drawer will help you seat the duplex
unit so the edges are aligned properly. Make
sure it is securely in place.
To attach the printer, see "Placing the Printer" on
page 7.
Square hole
Round hole
