Step 2: Install Memory and

Accessing the Printer System Board

Screws

You must access the printer system board to install

printer memory, flash memory, or an optional card.

Make sure the printer power is off, the

printer power cord is unplugged, and all

cables are disconnected from the back of

the printer.

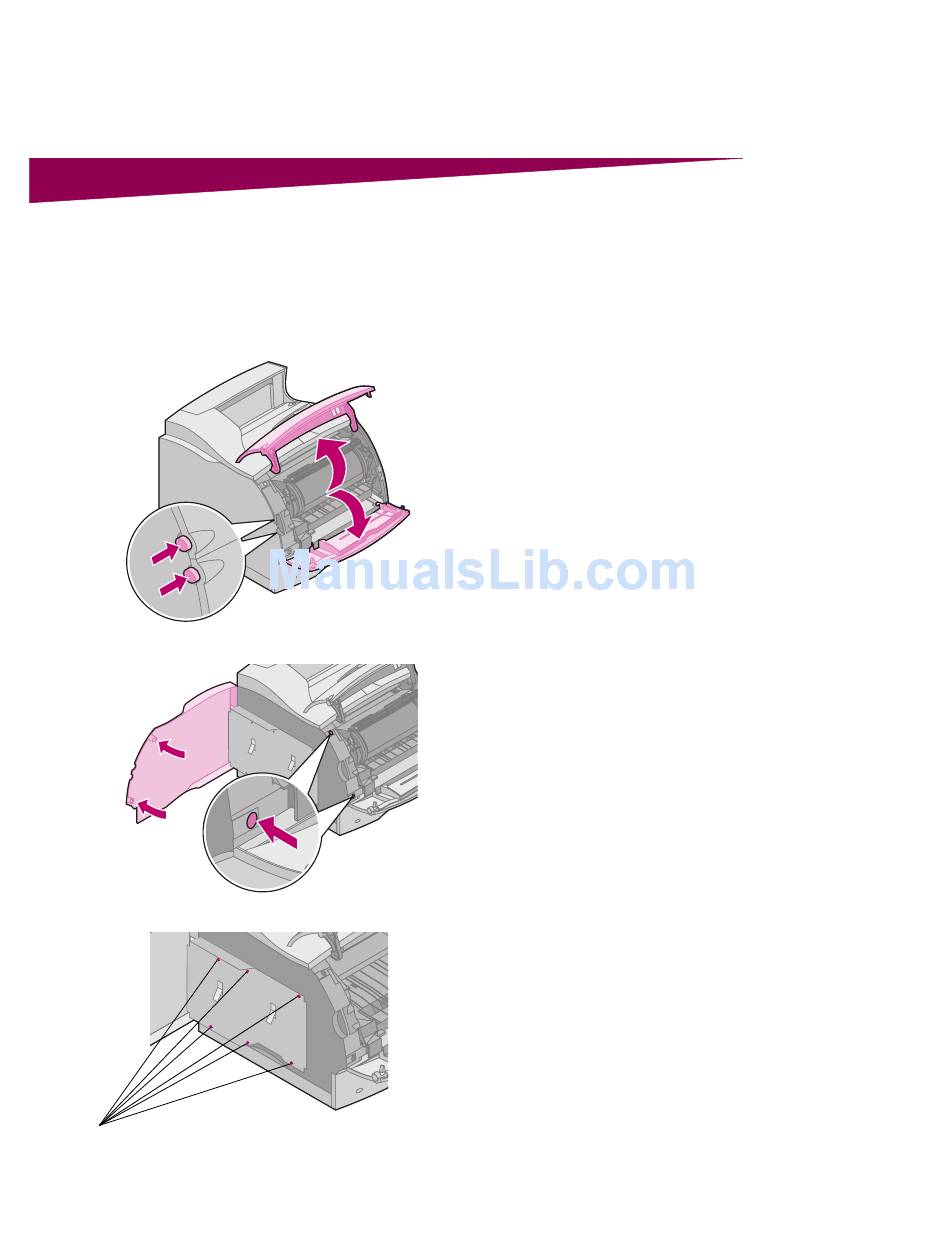

Press the release latches to open the upper

and lower front doors.

Press down on the side door latches and

open the side door.

Loosen, but do not remove, the six screws

as shown.

Install Memory and Optional Cards
