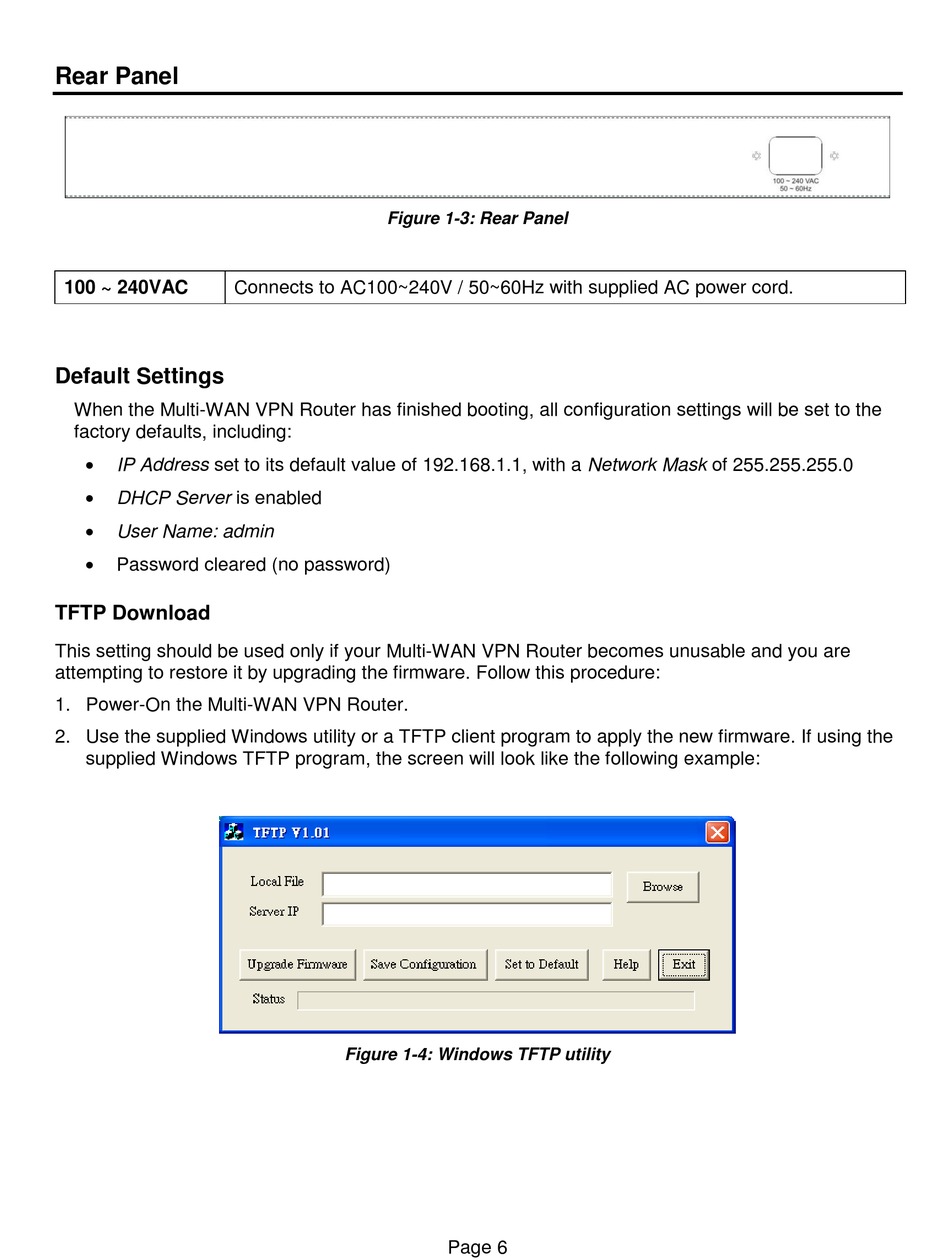

Rear Panel

100 ~ 240VAC
Default Settings
When the Multi-WAN VPN Router has finished booting, all configuration settings will be set to the
factory defaults, including:

IP Address set to its default value of 192.168.1.1, with a Network Mask of 255.255.255.0

DHCP Server is enabled

User Name: admin

Password cleared (no password)
TFTP Download
This setting should be used only if your Multi-WAN VPN Router becomes unusable and you are
attempting to restore it by upgrading the firmware. Follow this procedure:
1. Power-On the Multi-WAN VPN Router.
2. Use the supplied Windows utility or a TFTP client program to apply the new firmware. If using the
supplied Windows TFTP program, the screen will look like the following example:
Figure 1-3: Rear Panel
Connects to AC100~240V / 50~60Hz with supplied AC power cord.
Figure 1-4: Windows TFTP utility
Page 6
