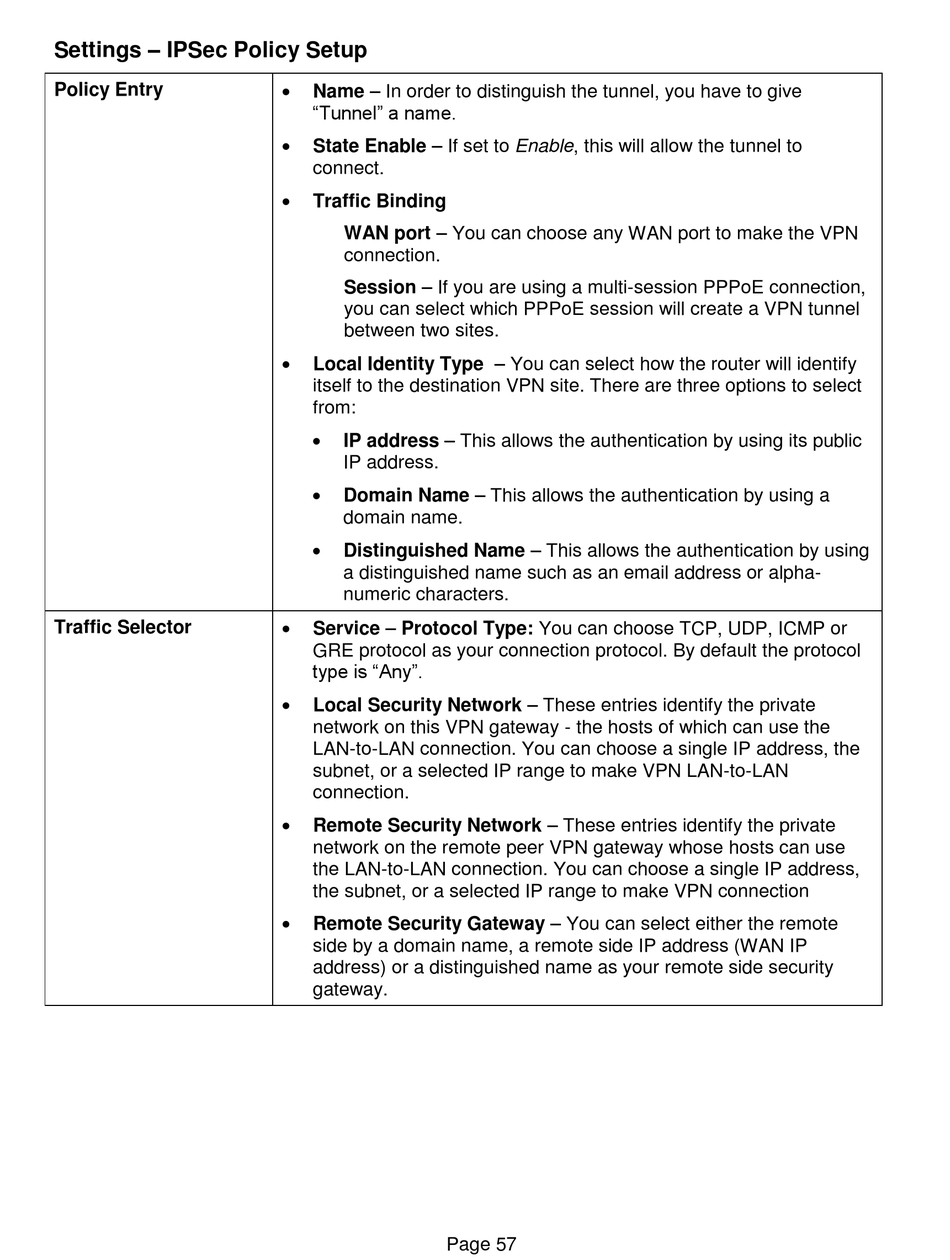

Settings – IPSec Policy Setup
Policy Entry
Traffic Selector

Name – In order to distinguish the tunnel, you have to give
"Tunnel" a name.

State Enable – If set to Enable, this will allow the tunnel to
connect.

Traffic Binding
WAN port – You can choose any WAN port to make the VPN
connection.
Session – If you are using a multi-session PPPoE connection,
you can select which PPPoE session will create a VPN tunnel
between two sites.

Local Identity Type – You can select how the router will identify
itself to the destination VPN site. There are three options to select
from:

IP address – This allows the authentication by using its public
IP address.

Domain Name – This allows the authentication by using a
domain name.

Distinguished Name – This allows the authentication by using
a distinguished name such as an email address or alpha-
numeric characters.

Service – Protocol Type: You can choose TCP, UDP, ICMP or
GRE protocol as your connection protocol. By default the protocol
type is "Any".

Local Security Network – These entries identify the private
network on this VPN gateway - the hosts of which can use the
LAN-to-LAN connection. You can choose a single IP address, the
subnet, or a selected IP range to make VPN LAN-to-LAN
connection.

Remote Security Network – These entries identify the private
network on the remote peer VPN gateway whose hosts can use
the LAN-to-LAN connection. You can choose a single IP address,
the subnet, or a selected IP range to make VPN connection

Remote Security Gateway – You can select either the remote
side by a domain name, a remote side IP address (WAN IP
address) or a distinguished name as your remote side security
gateway.
