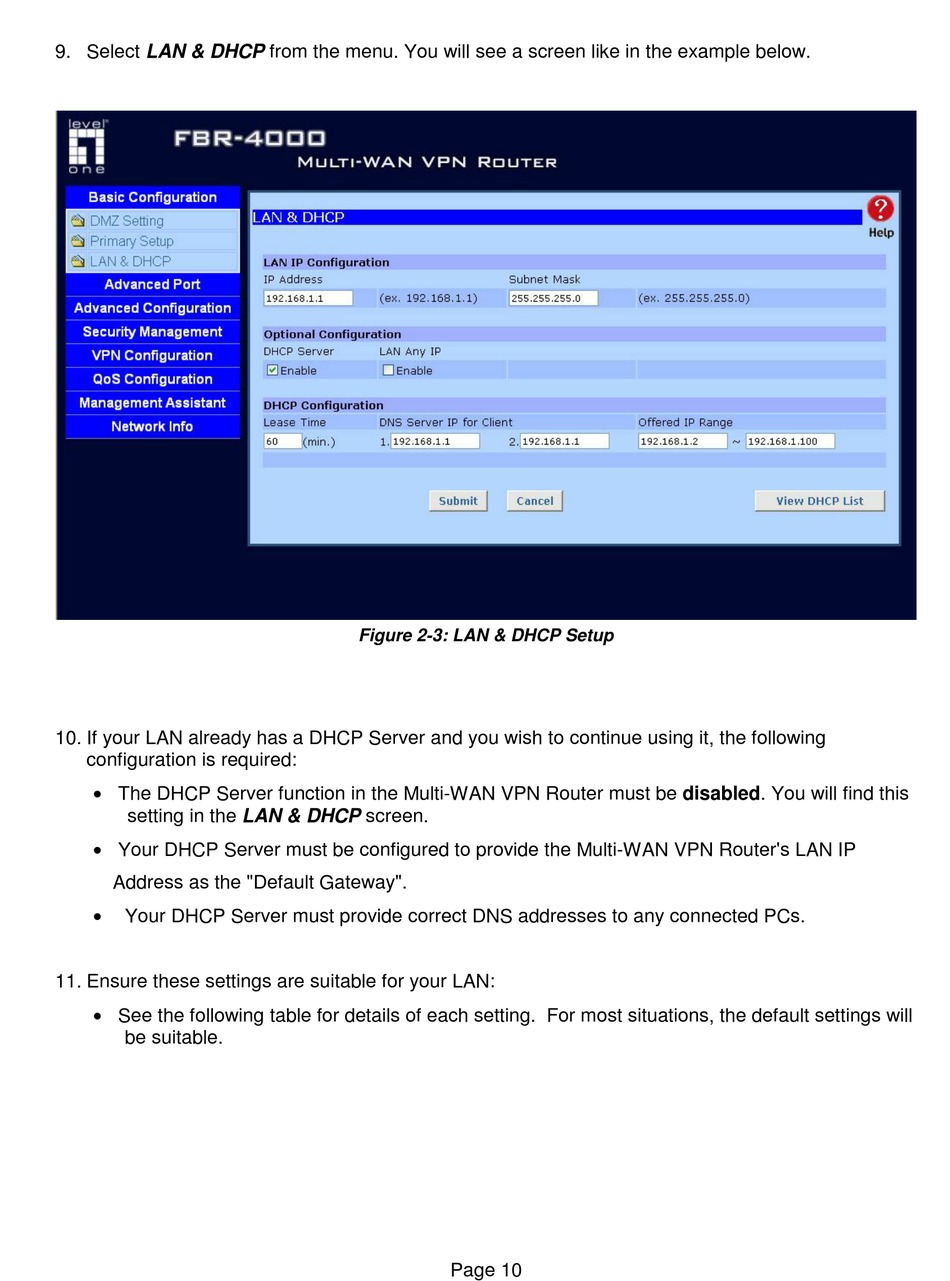

9. Select LAN & DHCP from the menu. You will see a screen like in the example below.

10. If your LAN already has a DHCP Server and you wish to continue using it, the following

configuration is required:

 The DHCP Server function in the Multi-WAN VPN Router must be disabled. You will find this

setting in the LAN & DHCP screen.

 Your DHCP Server must be configured to provide the Multi-WAN VPN Router's LAN IP

Address as the "Default Gateway".



Your DHCP Server must provide correct DNS addresses to any connected PCs.

11. Ensure these settings are suitable for your LAN:

 See the following table for details of each setting. For most situations, the default settings will

be suitable.

Figure 2-3: LAN & DHCP Setup

Page 10
