WAN Status

Use the WAN Status link on the main menu to view this screen.
Data – WAN Status
NAT This section displays data for each WAN port.
Statistics








Interface This section displays cumulative statistics.
Statistics
Use the "Restart Counter" button to restart these counters when required.

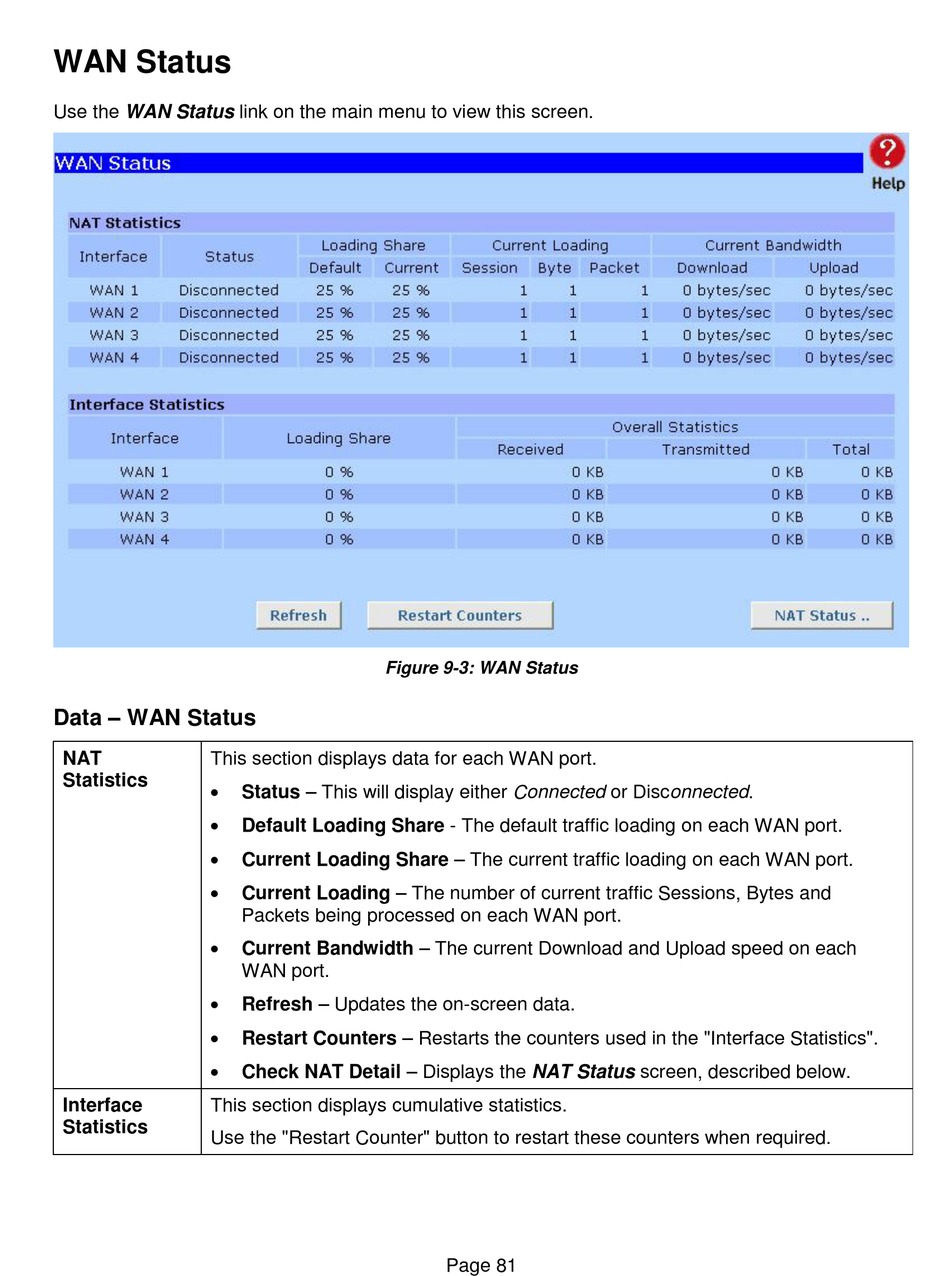

Figure 9-3: WAN Status
Status – This will display either Connected or Disconnected.
Default Loading Share - The default traffic loading on each WAN port.
Current Loading Share – The current traffic loading on each WAN port.
Current Loading – The number of current traffic Sessions, Bytes and
Packets being processed on each WAN port.
Current Bandwidth – The current Download and Upload speed on each
WAN port.
Refresh – Updates the on-screen data.
Restart Counters – Restarts the counters used in the "Interface Statistics".
Check NAT Detail – Displays the NAT Status screen, described below.
Page 81
