2. Installing the Router in your LAN

1. Ensure that the Multi-WAN VPN Router and any DSL/Cable modem(s) are powered-OFF.
Leave the modem or modems connected to their data lines.
2. Connect the Broadband modem(s) to the Multi-WAN VPN Router.

If using only one (1) Broadband modem, connect it to port 1.

Use the cable supplied with your DSL/Cable modem. If no cable was supplied, use a standard
cable.
3. Use standard LAN cables to connect PCs to the LAN ports on the Multi-WAN VPN Router.

Both 10BaseT and 100BaseT connections can be used simultaneously.

If you need to connect the Multi-WAN VPN Router to another Hub, just use a standard LAN
cable to connect any LAN port on the Multi-WAN VPN Router to a standard port on another
hub. Any LAN port on the Multi-WAN VPN Router will automatically act as an "Uplink" port
when required.

If devices are connected to the 4 WAN ports (1,2,3 & 4), the remaining ports (5 ~ 16), are
LAN ports. (You can enable Port 15 and Port 16 as dedicated DMZ ports)
4. Power-Up

Power-on the Cable or DSL modem(s).

Connect the supplied power cord to the Multi-WAN VPN Router and power-up.
5. Check the LEDs

The Power LED should be ON.

The Link/ACT LED should be ON if the corresponding WAN port is connected to a
broadband modem.

For each PC connected to the LAN ports, the corresponding LAN LED (either 10/Yellow or
100/Green) should be ON.

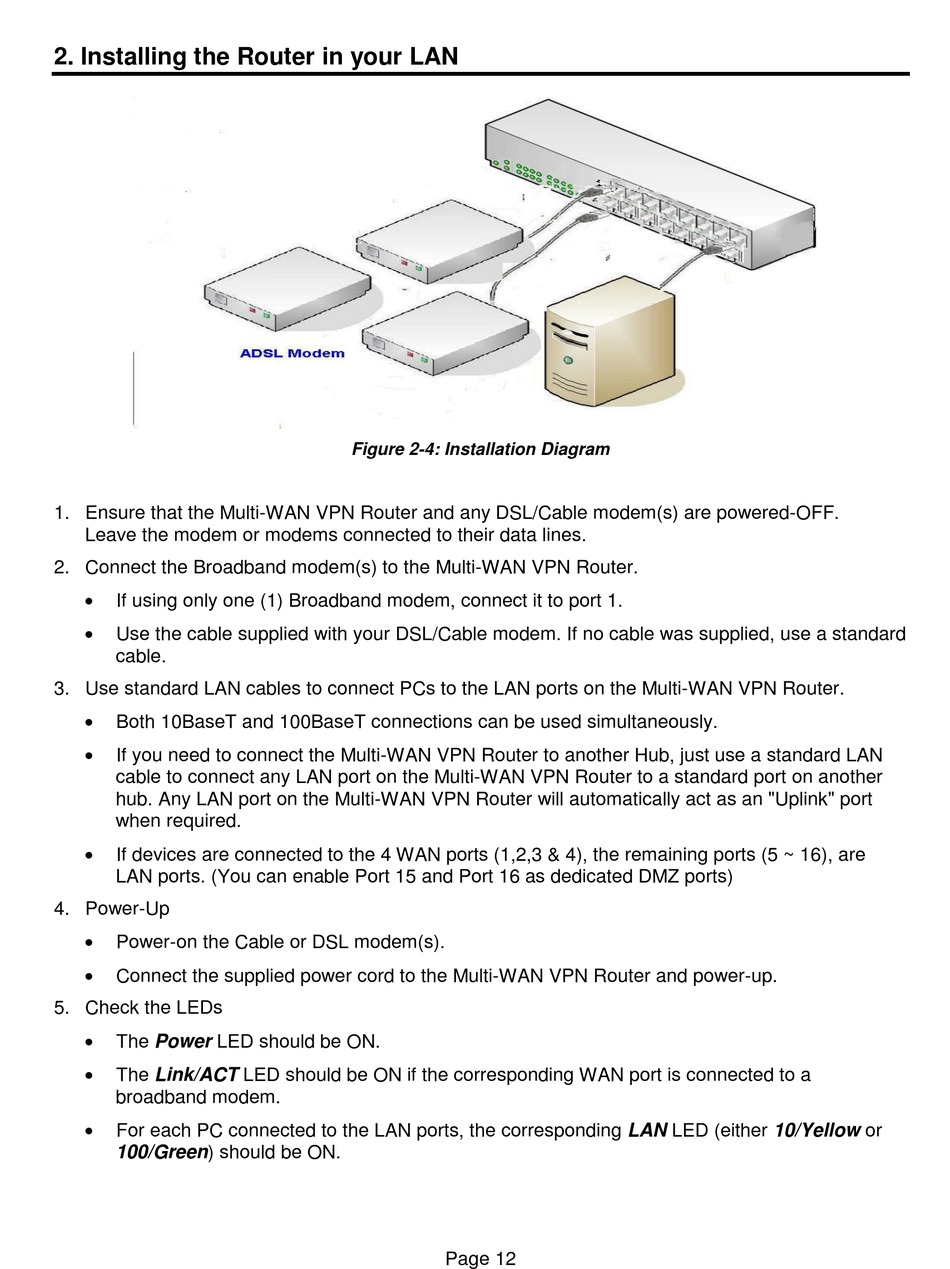

Figure 2-4: Installation Diagram
