Settings –Mesh Group Configuration
Aggregation Group This will display all the VPN connections that are using for VPN load

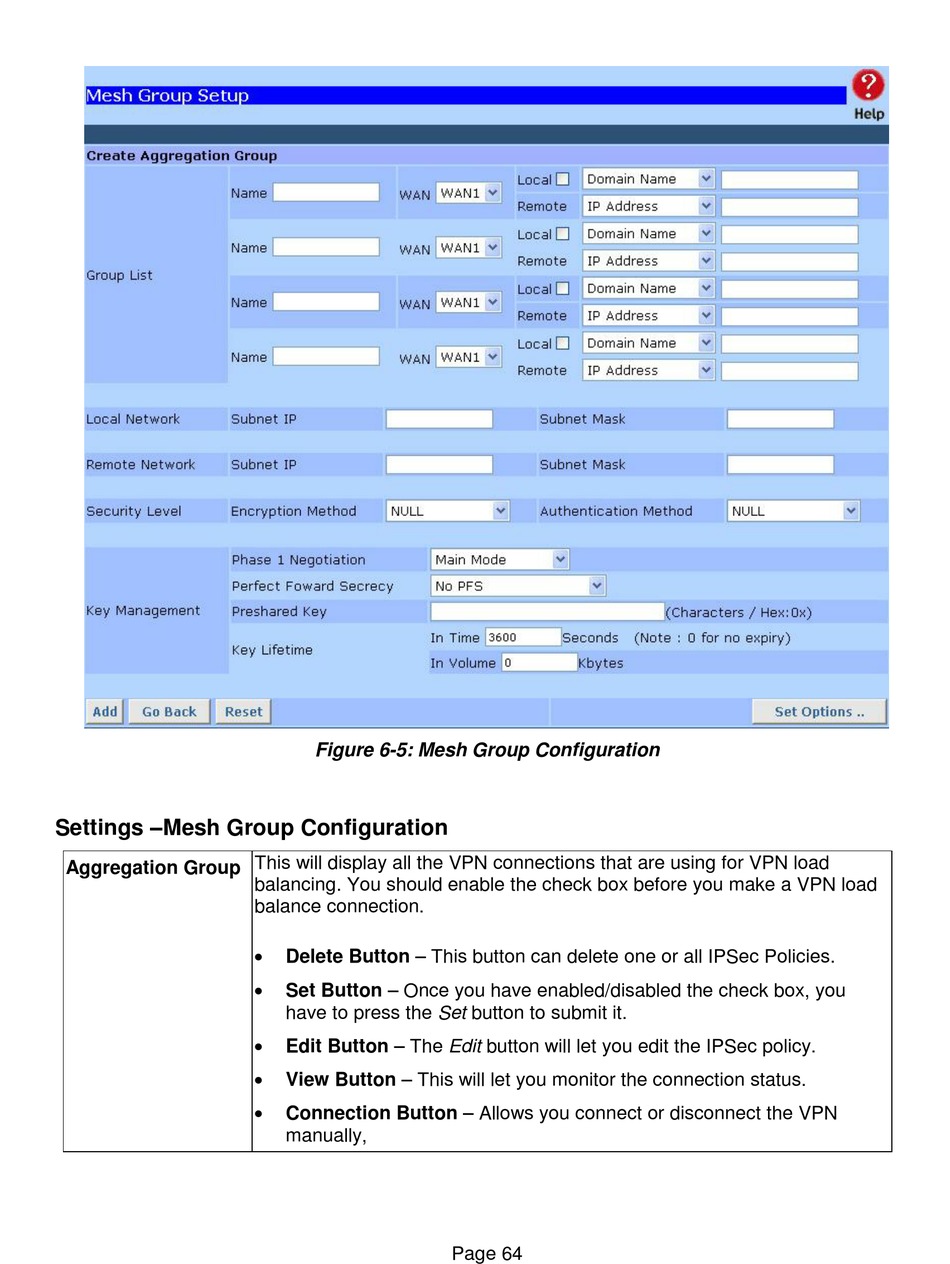

Figure 6-5: Mesh Group Configuration
balancing. You should enable the check box before you make a VPN load
balance connection.
Delete Button – This button can delete one or all IPSec Policies.
Set Button – Once you have enabled/disabled the check box, you
have to press the Set button to submit it.
Edit Button – The Edit button will let you edit the IPSec policy.
View Button – This will let you monitor the connection status.
Connection Button – Allows you connect or disconnect the VPN
manually,
Page 64
