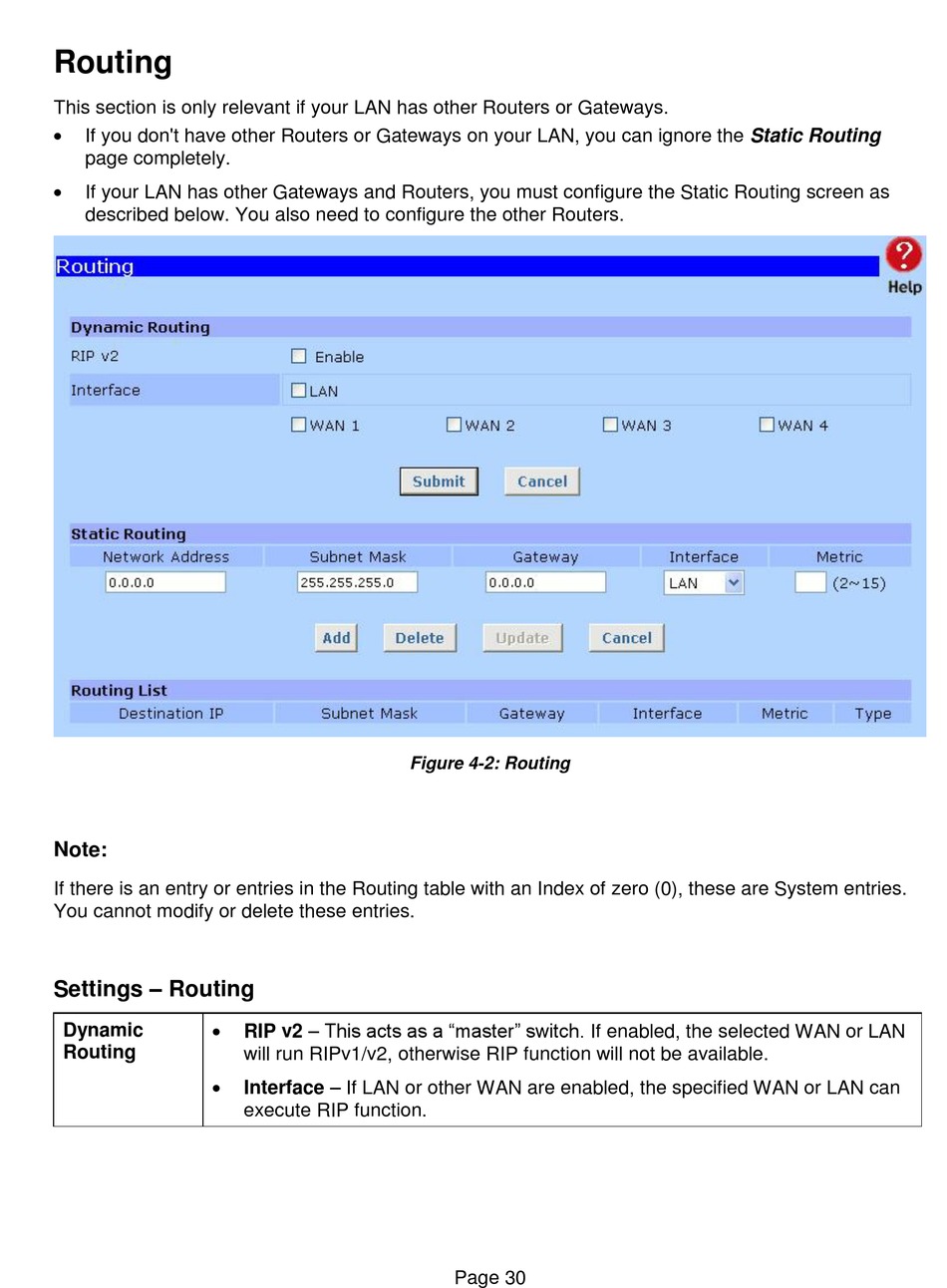

Routing
This section is only relevant if your LAN has other Routers or Gateways.
If you don't have other Routers or Gateways on your LAN, you can ignore the Static Routing
page completely.
If your LAN has other Gateways and Routers, you must configure the Static Routing screen as
described below. You also need to configure the other Routers.
Note:
If there is an entry or entries in the Routing table with an Index of zero (0), these are System entries.
You cannot modify or delete these entries.
Settings – Routing
Dynamic
Routing
Figure 4-2: Routing
RIP v2 – This acts as a "master" switch. If enabled, the selected WAN or LAN
will run RIPv1/v2, otherwise RIP function will not be available.
Interface – If LAN or other WAN are enabled, the specified WAN or LAN can
execute RIP function.
Page 30
