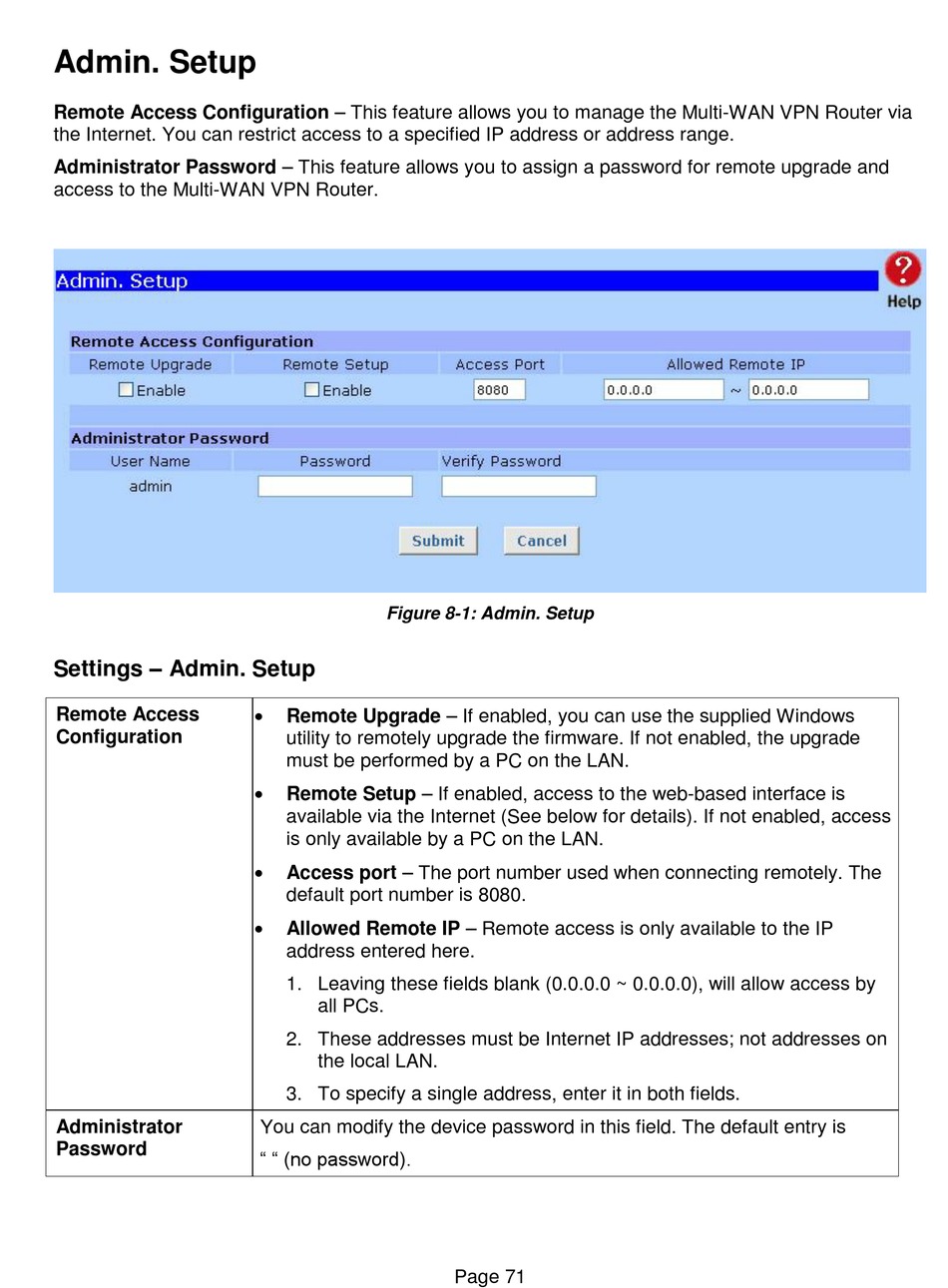

Admin. Setup

Remote Access Configuration – This feature allows you to manage the Multi-WAN VPN Router via
the Internet. You can restrict access to a specified IP address or address range.
Administrator Password – This feature allows you to assign a password for remote upgrade and
access to the Multi-WAN VPN Router.
Settings – Admin. Setup
Remote Access
Configuration
Administrator
Password
Figure 8-1: Admin. Setup

Remote Upgrade – If enabled, you can use the supplied Windows
utility to remotely upgrade the firmware. If not enabled, the upgrade
must be performed by a PC on the LAN.

Remote Setup – If enabled, access to the web-based interface is
available via the Internet (See below for details). If not enabled, access
is only available by a PC on the LAN.

Access port – The port number used when connecting remotely. The
default port number is 8080.

Allowed Remote IP – Remote access is only available to the IP
address entered here.
1. Leaving these fields blank (0.0.0.0 ~ 0.0.0.0), will allow access by
all PCs.
2. These addresses must be Internet IP addresses; not addresses on
the local LAN.
3. To specify a single address, enter it in both fields.
You can modify the device password in this field. The default entry is
" " (no password).
Page 71
