2 Getting started

2.1

Assembly instructions

Assembling the iTero Element 2 scanner – wheel-stand configuration
2.1.1

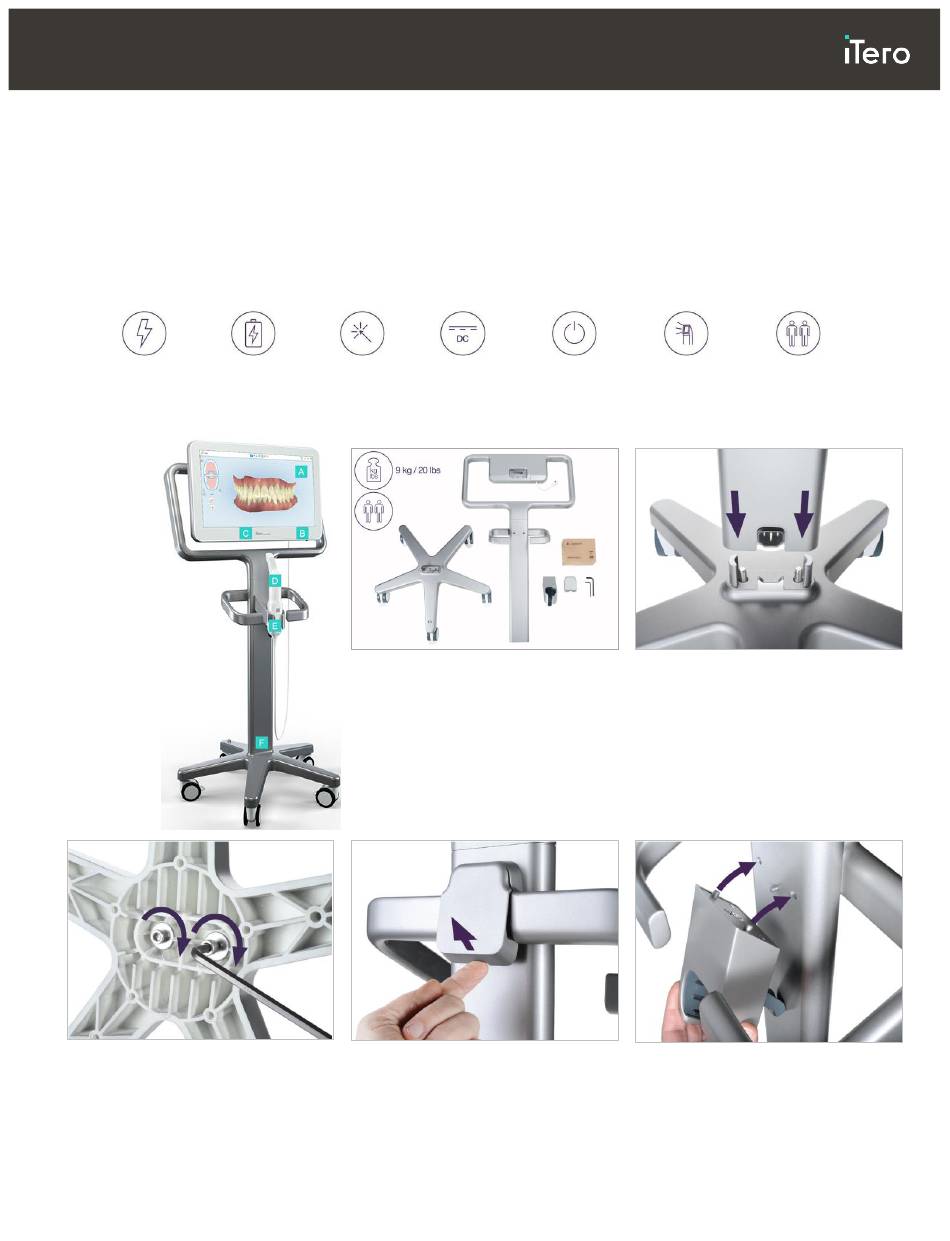

Follow the instructions below to assemble the iTero Element 2 scanner.
AC power
A Touch
screen
B Power
switch
C Power
LED
D Wand
E Cradle
F Wheel
base
3. Tighten the two Allen screws
using the larger Allen key.
© 2019 Align Technology, Inc. All rights reserved.
Battery Click
1. Check the contents of the boxes.
4. Remove the cover from the back
of the handle.
DC power Power
button
Wand 2 people are
required for
installation
2. Connect the post to the wheel
base.
5. Attach the wand cradle to the
front of the wheel stand.
