iTero Element 5D Configuration Operation Manual
Laptop
Hide thumbs
Also See for Element 5D:
- Instructions for use manual (32 pages) ,
- Configuration operation manual (36 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for iTero Element 5D
Summary of Contents for iTero Element 5D
- Page 1 Laptop configuration operation manual...
- Page 3 Element 5D laptop configuration operation manual English Copyright Trademarks © 2018 Align Technology, Inc. All Rights Reserved. The following are trademarks and/or service marks of Align Technology, Inc. or one of its subsidiaries or affiliated companies The information contained in this manual is subject to change and may be registered in the U.S.
- Page 4 Element 5D laptop configuration operation manual English Class 1 laser compliance FCC warning This device complies with: “21 CFR 1040.10” and “EN 60825-1”. Modifications to the device that are not expressly approved by the manufacturer may void your authority to operate the device under FCC Rules.
- Page 5 Manuel d’utilisation de iTero Element 5D laptop configuration Français Conformité laser de classe 1 Avertissement de la FCC Cet appareil est conforme aux normes : « 21 CFR 1040.10 » et Les modifications apportées à l'appareil qui ne sont pas « EN 60825-1 ». expressément approuvées par le fabricant peuvent révoquer votre droit d'utiliser l'appareil en vertu des règles de la FCC.
- Page 6 Element 5D laptop configuration operation manual English Symbols The following symbols may appear on iTero Element 5D hardware components, and may also appear within this document and other iTero Element 5D literature. Wherever this symbol appears on the device, it...
- Page 7 Français Symboles Les symboles suivants peuvent apparaître sur les composants matériels iTero Element 5D, ainsi que dans ce document et dans d’autres documents relatifs à iTero Element 5D. Partout où ce symbole apparaît sur l'appareil, il Indique les limites de température auxquelles est recommandé...
- Page 8 • To avoid risk of electric shock, iTero Element 5D laptop Unpacking & installing configuration must only be connected to a supply mains with The system should be unpacked and installed following Align protective grounding.
- Page 9 L'appareil ne contient aucune pièce réparable par l'utilisateur. • Pour éviter toute contamination croisée, jetez les gants déchirés, • Pour éviter tout risque d'électrocution, le iTero Element 5D laptop contaminés ou retirés pour une raison quelconque. configuration doit uniquement être connecté à une prise de courant avec une prise terre de protection.
-
Page 10: Table Of Contents
Table of contents Chapter 1: Introduction About this document Intended use / indication for use Benefits of the iTero Element 5D laptop configuration system The iTero Element 5D laptop configuration user interface Chapter 2: Basic hardware features Front view of system... -
Page 11: Chapter 1: Introduction
Chapter 1: Introduction About this operation manual The iTero Element 5D laptop configuration system is delivered as a proprietary, laptop based workstation for performing intra-oral scans in the doctor’s office. This operational manual describes how to start and shut down the system, how to correctly handle the Scanning Unit/Wand and cable, and how to clean the Scanning Unit and replace its sleeves between patients. -
Page 12: The Itero Element 5D Laptop Configuration User Interface
Element 5D laptop configuration operation manual English The iTero Element 5D laptop configuration user interface The iTero Element 5D laptop configuration system provides an intuitive user interface for performing digital scans for Restorative or Orthodontic use. The doctor is guided through the scanning sequence by means of visual and text assistance. -
Page 13: Chapter 2: Basic Hardware Features
Element 5D laptop configuration operation manual English Chapter 2: Basic hardware features Front view of the system Laptop with touch screen Flex hub Wand and cradle... -
Page 14: Scanning Unit (Wand)

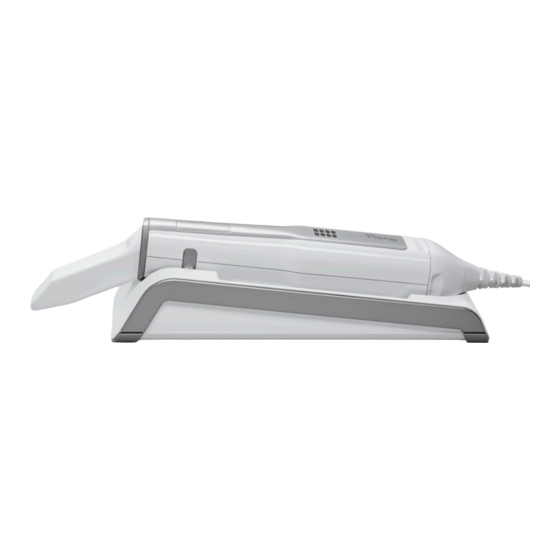

Element 5D laptop configuration operation manual English Scanning unit (wand) Touchpad Air vents Disposable sleeve Detachable scanning Side buttons: Scan, on/off, unit cable with touchpad activation USB connector... -
Page 15: Mobile System Packaging (For Transport)
Element 5D laptop configuration operation manual English Mobile system packaging (for transport) Transportation Use the supplied case to move the system between offices. Moving the system To ensure maximum system protection, it is recommended to move the system with care. Follow these instructions for relocating the system: 1. -
Page 16: Chapter 3: Assembly Instructions
Element 5D laptop configuration operation manual English Chapter 3: Assembly and software installation Step 1: Assembly Please follow the instructions below to assemble your iTero Element 5D laptop configuration scanner: USB port AC power Wand (scanning unit) Hub and hub power cord... -
Page 17: Step 2: Download Itero Element 5D Laptop Configuration Software
Please make sure your laptop is plugged Before installing the iTero Element 5D software for the first into the AC wall socket during the entire software installation. -
Page 18: Step 3: Make It Mine Process
Element 5D laptop configuration operation manual English Step 3: Make it Mine process Select language of preference and tap on the Make it Mine button to start the Wizard. Follow the Wizard instructions on the screen to complete the... -
Page 19: Chapter 4: Operating Instructions
Element 5D laptop configuration operation manual English Chapter 4: Operating instructions Make sure the laptop is connected to an AC wall outlet, to ensure the battery level does not reach its low battery status, at which time scanning will no longer be possible. -
Page 20: Chapter 5: Scanner Handling, Cleaning, And Disinfection Instructions
Element 5D laptop configuration operation manual English Chapter 5: Scanner handling, cleaning, and disinfection instructions Handling of the scanning unit (wand) The scanning unit contains delicate components and should be handled with care. Handling of the scanning unit cable •... -
Page 21: Chapter 6: Changing Sleeves Between Patients
Chapter 6: Changing sleeves between patients iTero Element 5D laptop configuration sleeve is intended for single patient use and shall be replaced after each patient with the purpose to avoid cross contamination. For sleeve replacement proceed with the steps below. -
Page 22: Scanner Sleeves
Please dispose of the white sleeve after safe place so that it does not get lost or damaged. every patient. Scanner sleeves packaging box Scanner sleeves may be ordered online in boxes of 25 from the iTero store. www.store.itero.com... -
Page 23: Chapter 7: Clinic Lan Network Guidelines
Clinic LAN network guidelines Introduction The iTero Element 5D scanner uses the Wi-Fi internet connectivity in order to send and retrieve scans to and from the iTero cloud. As a recommendation, it is always best to have the state-of-art available technology. Here are some helpful guidelines for the best... -
Page 24: Preparations
(.3ds and.3dc/.3dm). 9. Keep your iTero product away (at least 3-6 feet or 1-2 meters) 3. Disable any proxy client for data communication through TCP/IP. from electrical devices or appliances that generate RF noise. -
Page 25: Appendix A: Emc Declaration
Element 5D laptop configuration operation manual English Appendix A: EMC declaration Summary of EMC test results for iTero Element 5D laptop configuration Test Standard Class / Severity level Test result Documentation (IEC 60601-1-2 sections 4 and 5) General requirements for EMC section 4.1... -
Page 26: Appendix B: System Specifications
Depth: 52 mm (~2 in) Depth: 184 mm (~7 in) Depth: 36.5 mm (~1.4 in) Depth: 68 mm (2.7 in) iTero Element 5D laptop configuration hub: ~0.5 kg (~1 lbs) Net weight Scanning Unit: 0.47 kg (~1 lbs) Empty Case: ~2 kg (~4.5 lbs) Shipping weight ~8 kg (~17.6 lbs) - Page 28 1043HS Amsterdam The Netherlands Align, Invisalign, iTero, and iTero Element among others, are trademarks and/or service marks of Align Technology, Inc. or one of its subsidiaries or a ffiliated companies and may be registered in the U.S. and/or other countries.
