iTero Element 2 and iTero Element Flex User Manual

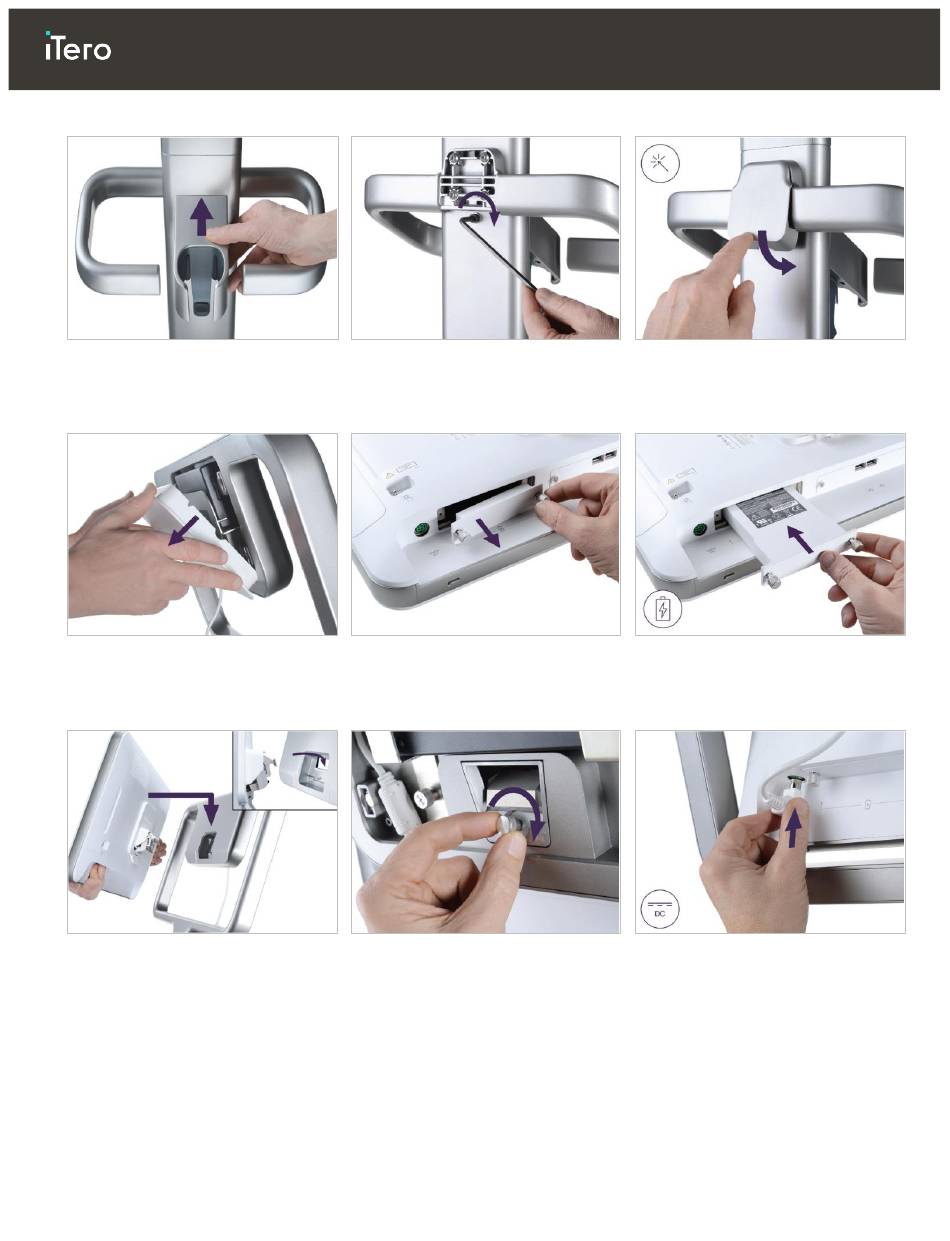

6. Hold the cradle.
9. Remove the magnetic cover from
the back of the wheel stand
frame.
12. Lift the touch screen to mount it.
8
iTero Element 2 and iTero Element Flex User Manual
7. Tighten the back of the wand
cradle with the Allen screw using
the smaller Allen key.
10. Loosen the thumbscrews and
remove the battery cover.
13. Turn the scanner around and
tighten the thumbscrew to
secure the screen.
8. Reattach the cover behind the
handle.
11. Slide the battery into the battery
slot and tighten the
thumbscrews.
14. Connect the power cable to the
port labeled DC, as shown in the
next image.
