  • Page 1 Wheel stand configuration operation manual...
  • Page 3 Element 5D operation manual English Copyright Trademarks © 2018 Align Technology, Inc. All Rights Reserved. The following are trademarks and/or service marks of Align Technology, Inc. or one of its subsidiaries or affiliated companies The information contained in this manual is subject to change and may be registered in the U.S.
  • Page 4 Element 5D operation manual English Class 1 laser compliance FCC warning This device complies with: “21 CFR 1040.10” and “EN 60825-1”. Modifications to the device that are not expressly approved by the manufacturer may void your authority to operate the device under FCC Rules.
  • Page 5 Manuel d’utilisation iTero Element 5D Français Conformité laser de classe 1 Avertissement de la FCC Cet appareil est conforme aux normes : « 21 CFR 1040.10 » et Les modifications apportées à l'appareil qui ne sont pas « EN 60825-1 ». expressément approuvées par le fabricant peuvent révoquer votre droit d'utiliser l'appareil en vertu des règles de la FCC.
  • Page 6 Element 5D operation manual English Symbols The following symbols may appear on iTero Element 5D hardware components, and may also appear within this document and other iTero Element 5D literature. Wherever this symbol appears on the device, it Indicates a medical device that needs to be is recommended to refer to this document for protected from moisture.
  • Page 7 Français Symboles Les symboles suivants peuvent apparaître sur les composants matériels iTero Element 5D, ainsi que dans ce document et dans d’autres documents relatifs à iTero Element 5D. Partout où ce symbole apparaît sur l'appareil, il Indique un dispositif médical qui doit être protégé...
  • Page 8 • The system should be moved between rooms with utmost care to user-serviceable parts inside. avoid damage. • To avoid risk of electric shock, iTero Element 5D must only be • WARNING: Do not block the air vents on the Scanning Unit and connected to a supply mains with protective grounding.
  • Page 9 • Le système doit être déballé et installé conformément aux l'utilisateur. instructions fournies par Align Technology. • Pour éviter tout risque d'électrocution, le iTero Element 5D doit uniquement être connectée à une prise de courant avec une Environnement de travail prise terre de protection.

  • Page 11: Table Of Contents

    Table of contents Chapter 1: Introduction About this document Intended use / indication for use Benefits of the iTero Element 5D system The iTero Element 5D user interface Chapter 2: Basic hardware features Front view of system Back view of system...

  • Page 12: Chapter 1: Introduction

    Chapter 1: Introduction About this document The iTero Element 5D system is delivered as a proprietary, PC- based workstation for performing intra-oral scans in the doctor’s office. This document describes how to start and shut down the system, how to correctly handle the Scanning Unit/Wand and cable, and how to clean the Scanning Unit and replace its sleeves between patients.

  • Page 13: The Itero Element 5D User Interface

    Element 5D operation manual English The iTero Element 5D user interface The iTero Element 5D system provides an intuitive user interface for performing digital scans for Restorative or Orthodontic use. The doctor is guided through the scanning sequence by means of visual and text assistance.

  • Page 14: Chapter 2: Basic Hardware Features

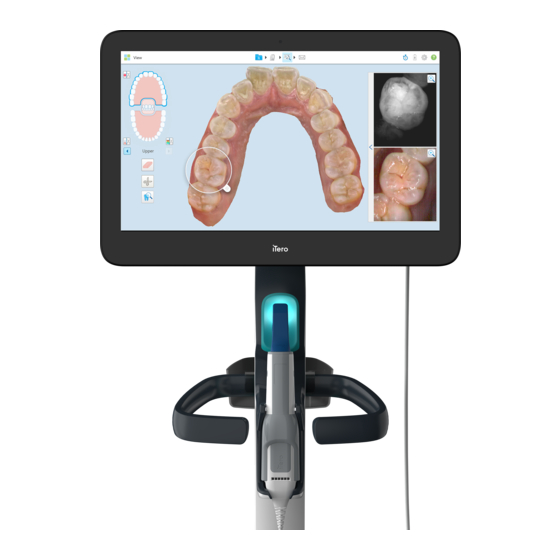

    Element 5D operation manual English Chapter 2: Basic hardware features Custom wheel stand hardware features: Front view of the system Touch screen Power switch Power LED Scanning unit (wand) Scanning unit (cradle) Wheel base...

  • Page 15: Back View Of System

    Element 5D operation manual English Custom wheel stand hardware features: Back view of the system Scanning unit connector Wand cable Panel PC connection power cord...

  • Page 16: Scanning Unit (Wand)

    Element 5D operation manual English Scanning unit (wand) Touchpad Air vents Disposable sleeve Side buttons: Scan, on/off, touchpad activation Detachable scanning unit cable with USB connector...

  • Page 17: Chapter 3: Assembly Instructions

    Element 5D operation manual English Chapter 3: Assembly instructions AC power Battery Click DC power Step 1: Assembly Please follow the instructions below to assemble your iTero Element 5D scanner: Power button Wand 2 people are required (scanning unit)
  • Page 18 Element 5D operation manual English Remove the magnetic cover from the back of Remove the battery cover Slide the battery into the battery slot and the wheel stand frame tighten the thumb screws Lift the HD screen to mount it...
  • Page 19 Element 5D operation manual English Attach the wand cable on the back of the HD Attach the power cable on the bottom of the On the bottom of the wheel stand, post and screen wheel stand secure the cable with the clip...

  • Page 20: Assembly Of Itero Element 5D Counter Stand

    Element 5D operation manual English Assembly of iTero Element 5D counter stand Please follow the instructions below to assemble your iTero Element 5D counter stand: Insert post into frame. Tighten the post using the allen wrench Remove cover Install new cover Lift the HD screen to mount it.
  • Page 21 Element 5D operation manual English Plug in the webcam to the USB port at the Plug in the power cable Position the web camera on the HD screen bottom of the HD screen for remote training or support sessions...

  • Page 22: Step 2: Make It Mine Process

    Element 5D operation manual English Step 2: Make it Mine process Select language of preference and tap on the Make it Mine button to start the Wizard. Follow the Wizard instructions on the screen to complete the customization of the iTero Element 5D.

  • Page 23: Chapter 4: Operating Instructions

    Element 5D operation manual English Chapter 4: Operating instructions It is recommended to keep the system in operation during office hours to allow background file transfers between the doctor’s office, the doctor’s partnered labs, and the Align Technology Center. It is recommended to shut down the system at the end of the day, and to reboot in the morning.

  • Page 24: Chapter 5: Scanner Handling, Cleaning, And Disinfection Instructions

    Element 5D operation manual English Chapter 5: Scanner handling, cleaning, and disinfection instructions Handling of the scanning unit (wand) The scanning unit contains delicate components and should be handled with care. Handling of the scanning unit cable • The scanner cable should be treated with care to avoid possible damage.

  • Page 25: Chapter 6: Changing Sleeves Between Patients

    English Chapter 6: Changing sleeves between patients iTero Element 5D sleeve is intended for single patient use and shall be replaced after each patient with the purpose to avoid cross contamination. For sleeve replacement proceed with the steps below. CAUTION: Dispose of scanner sleeves according to standard operating procedures or local regulations for the disposal of contaminated medical waste.

  • Page 26: Scanner Sleeves

    Element 5D operation manual English Scanner sleeves There are two types of sleeves intended for use with the scanner unit (wand): Disposable sleeve Protective sleeve The white sleeve is a single use sleeve for patient scanning. Always The blue protective sleeve is used to protect the optical surface replace the white sleeve on the scanning unit between patients to lens when the scanning unit is not in use.

  • Page 27: Chapter 7: Accessories (Options)

    Element 5D operation manual English Chapter 7: Accessories (optional) Counter stand and cradle Back view Front view Articulator The articulator is intended to use as a mechanical device that simulates movements of a patient’s upper and lower jaws. Plaster casts of the patient’s teeth and gums are placed in the device to...

  • Page 28: Chapter 8: Clinic Lan Network Guidelines

    Introduction The iTero Element 5D scanner uses the Wi-Fi internet connectivity in order to send and retrieve scans to and from the iTero cloud. As a recommendation, it is always best to have the state-of-art available technology. Here are some helpful guidelines for the best...

  • Page 29: Preparations

    • Diagnostic tool under “Settings”, or the Connectivity Tool are suggested below. • Test the local Wi-Fi connection with any PC computer, using the iTero connectivity tool (run the test as near as possible to the scanner location). • Connectivity Tool Download at fc1.orthocad.com\download\ AlignSupport\ConnectivityCheck2.0.exe...

  • Page 30: Wi-Fi Tips

    (aquariums), mirrors, file cabinets, brick, and concrete may reduce your wireless signal. 4. Keep your iTero product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF noise.

  • Page 31: Align Hostname Recommendations

    Element 5D operation manual English Align hostname recommendations Align constantly improves its products and services. Hence, can rather commit to a Hostname, though not to a certain IP. The following hostnames list was created to provide Align’s scanners the proper operation functions, in order to be able to utilize all the advanced capabilities of the scanner performance.

  • Page 32: Appendix A: Emc Declaration

    Element 5D operation manual English Appendix A: EMC declaration Summary of EMC test results for iTero Element 5D Test Standard Class / Severity level Test result Documentation (IEC 60601-1-2 sections 4 and 5) General requirements for EMC section 4.1...

  • Page 33: Appendix B: System Specifications

    Scanner emits red laser light (680nm Class 1) as well as white LED emissions, and 850nm LED emissions. Wireless LAN LAN card provides local network communications with wireless connectivity. The iTero password is unique for each user and should not be shared with others. The iTero password policy requires Security high level of password strength.
  • Page 36 1043HS Amsterdam The Netherlands Align, Invisalign, iTero, and iTero Element among others, are trademarks and/or service marks of Align Technology, Inc. or one of its subsidiaries or a ffiliated companies and may be registered in the U.S. and/or other countries.
