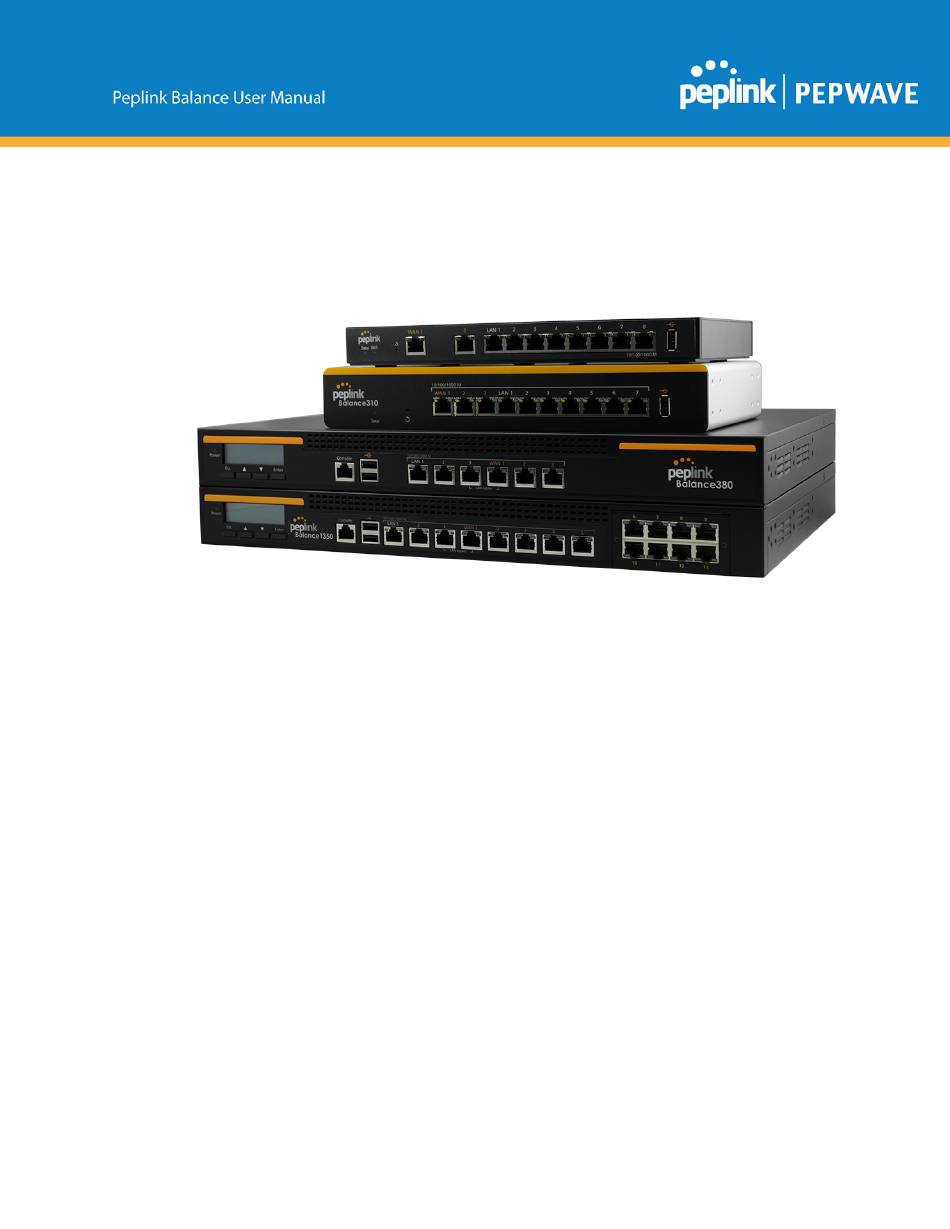

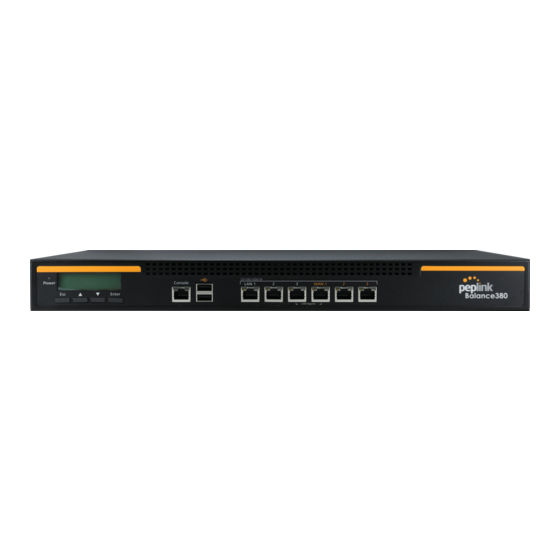

Peplink Balance and MediaFast
User Manual

Peplink Products:
ONE/One Core/20/30 LTE/30 Pro/210/305/380/580/710/1350/2500/EPX/
MediaFast 200/500/750

Peplink Balance Firmware 8.0
April 2019




https://www.peplink.com
Copyright @ 2019 Peplink


Advertisement

Table of Contents
loading

Summary of Contents for peplink ONE One

  • Page 1               Peplink Balance and MediaFast  User Manual    Peplink Products:  ONE/One Core/20/30 LTE/30 Pro/210/305/380/580/710/1350/2500/EPX/  MediaFast 200/500/750    Peplink Balance Firmware 8.0  April 2019          https://www.peplink.com  1  Copyright @ 2019 Peplink   ...
  • Page 2: Table Of Contents

    Product Features 13  Advanced Feature Summary 17  Drop­in Mode and LAN Bypass: Transparent Deployment 17  QoS: Clearer VoIP 17  Per­User Bandwidth Control 18  High Availability via VRRP 18  USB Modem and Android Tethering 19  Built­In Remote User VPN Support 19  LACP NIC Bonding 20  Package Contents 21  Peplink Balance One 21  Peplink Balance 20/30/30 LTE/50 21  Peplink Balance 210/310 21  Peplink Balance 305/380/580/710/1350/2500 21  Peplink MediaFast 200 21  Peplink MediaFast 500 21  Peplink EPX 22  Peplink Balance Overview 22  Peplink Balance One 22  Peplink Balance 20 24 ...
  • Page 3   Peplink Balance 310 29  Peplink Balance 305 31  Peplink Balance 380 32  Peplink Balance 580 33  Peplink Balance 710 35  Peplink Balance 1350 36  Peplink Balance 2500 38  Peplink MediaFast Overview 39  Peplink MediaFast 200 39  Peplink MediaFast 500 41  Peplink MediaFast 750 42  Peplink EPX Overview 44  Peplink EPX 44  Main Chassis 44  Expansion Modules 47  LCD Display Menu 50  Installation 51  Preparation 51  Constructing the Network 51  Basic Configuration 52 ...
  • Page 4 Captive Portal 139  142  User Groups 142  Bandwidth Control 143  Application 144  Prioritization for Custom Application 144  DSL/Cable Optimization 146  Firewall 146  Access Rules 146  Intrusion Detection and DoS Prevention 150  Content Blocking 151  Application Blocking 152  Web Blocking 152  Customized Domains 152  Exempted User Groups 152  Exempted Subnets 152  URL Logging 153  OSPF & RIPv2 153    https://www.peplink.com  4  Copyright @ 2019 Peplink   ...
  • Page 5 171  Wireless SSID   1 73  AP > Profiles 177  AP Controller Status 181  Info 181  Access Points (Usage) 182  Wireless SSID 184  Wireless Client 185  Nearby Device 186  Event Log 187  Toolbox 188  System Tab 189  System 189  Admin Security 189  Firmware 193  Web admin interface : install  updates manually   1 94    https://www.peplink.com  5  Copyright @ 2019 Peplink   ...
  • Page 6 211  Device 211  Active Sessions 213  Client List 215  WINS Clients 216  OSPF & RIPv2 216  MediaFast 216  SpeedFusion Status 217  Event Log 222  Device Event Log 223  IPsec Event Log 223  Bandwidth 224  Real­Time 224  Hourly 225  Daily 225  Monthly 228  Harrington Industrial Plastics 235  PLUSS 238    https://www.peplink.com  6  Copyright @ 2019 Peplink   ...
  • Page 7: IntroductionĀ AndĀ Scope

    Designed with education and entertainment in mind, Mediafast downloads and accelerates video, iTunes  iOS updates, app downloads, and other content for uninterrupted learning and fun anytime.   The MediaFast can prefetch content during off­peak hours, saving connectivity costs and reducing  network burden during busy times.    This manual applies to the following Peplink Balance products:  ● Peplink Balance One  ● Peplink Balance 20  ● Peplink Balance 30 LTE/Pro  ● Peplink Balance 210  ● Peplink Balance 380  ● Peplink Balance 580  ● Peplink Balance 710  ● Peplink Balance 1350  ● Peplink Balance 2500   ● Peplink MediaFast 200/500/750  ● Peplink EPX    The manual covers setting up your Peplink Balance or MediaFast and provides a collection of case  studies detailing the advanced features of the Peplink Balance.            https://www.peplink.com  7  Copyright @ 2019 Peplink   ...
  • Page 8: Glossary

    High­Speed Downlink Packet Access  HTTP  Hyper­Text Transfer Protocol  ICMP  Internet Control Message Protocol  IP  Internet Protocol  LAN  Local Area Network  MAC Address  Media Access Control Address  MTU  Maximum Transmission Unit  MSS  Maximum Segment Size  NAT  Network Address Translation  PPPoE  Point to Point Protocol over Ethernet  QoS  Quality of Service  SNMP  Simple Network Management Protocol  TCP  Transmission Control Protocol  UDP  User Datagram Protocol  VPN  Virtual Private Network  VRF  Virtual Routing and Forwarding  VRRP  Virtual Router Redundancy Protocol  WAN  Wide Area Network    https://www.peplink.com  8  Copyright @ 2019 Peplink   ...
  • Page 9   WINS  Windows Internet Name Service  WLAN  Wireless Local Area Network  210+  Refers to Peplink Balance 210/310/380/580/710/1350/2500  380+  Refers to Peplink Balance 380/580/710/1350/2500            https://www.peplink.com  9  Copyright @ 2019 Peplink   ...
  • Page 10: ProductĀ ComparisonĀ Charts

    426 x  426 x  426 x  426 x 550  Dimensions  160 x 30  133 x 35  133 x 35  273 x 44  278 x 44  278 x 44  278 x 44  365 x 44  395 x 44  x 44 mm  mm  mm  mm  mm  mm  mm  mm  mm  mm  Gross Weight  1 kg  1.6 kg  1.6 kg  2 kg  6.4 kg  6.4 kg  6.4 kg  6.4 kg  6.6 kg  16.4 kg    https://www.peplink.com  10  Copyright @ 2019 Peplink   ...
  • Page 11: MediafastĀ Routers

        A full product comparison for Balance routers is available at:   http://www.peplink.com/products/balance/model­comparison/    MediaFast Routers          ­ MediaFast 200 MediaFast 500 MediaFast 750         Product Code MFA­200­W MFA­500­B MFA­750­B 2x GE         WAN Interface 5x GE 7x GE   (Only WAN 1 is activated.) Simultaneous Dual­Band        Wi­Fi Interface ­ ­   802.11a/b/g/n Access Point  ...
  • Page 12: ProductĀ Features

          A full product comparison for MediaFast routers is available at:   https://www.peplink.com/products/mediafast­specifications/       Product Features  Peplink Balance Series products enable all LAN users to share broadband Internet connections and  provide advanced features to enhance Internet access. The following is a list of supported features:    WAN    ● Multiple public IP support (DHCP, PPPoE, static IP address)  ● Static IP support for PPPoE  ● 10/100/1000Mbps Ethernet connection in full/half duplex  ● Built­in HSPA and EVDO cellular modems   ● USB mobile connection   ( only one USB modem can be connected at a time)  ● Drop­in mode on selectable WAN port with MAC address passthrough   n   e twork address  translation (NAT) / port address translation (PAT)  ● Inbound and outbound NAT mapping  ● Multiple static IP addresses per WAN connection  ● MAC address clone  ● Customizable MTU and MSS values ...
  • Page 13 ● Multi­Site PepVPN Profile  ● IPsec VPN for network­to­network connections  ● L2TP / PPTP and IPsec passthrough  ● Simultaneous L2 & L3 VPN tunnel between the same pair of devices    Inbound Traffic Management    ● TCP/UDP traffic redirection to dedicated LAN server(s)  ● Inbound link load balancing by means of DNS     Outbound Policy    ● Link load distribution per TCP/UDP service   ● Persistent routing for specified source and/or destination IP addresses per TCP/UDP service  ● Prioritize and route traffic to VPN tunnels with Priority and Enforced algorithms  ● Time­based scheduling    AP Controller    ● Configure and manage Pepwave AP devices  ● Review the status of connected AP        https://www.peplink.com  13  Copyright @ 2019 Peplink   ...
  • Page 14 Captive Portal    ● Social Wi­Fi Hotspot Support  ● Splash screen of open networks, login page for secure networks  ● Customizable built­in captive portal  ● Supports linking to outside page for captive portal    Other Supported Features    ● Easy­to­use web administration interface  ● HTTP and HTTPS support for web administration interface  ● Configurable web administration port and administrator password  ● Read­only user for web admin  ● Shared­IP drop­in mode   ● Authentication and accounting by RADIUS server for web admin   ● Firmware upgrades, configuration backups, ping, and traceroute via web administration interface  ● Remote web­based configuration (via WAN and LAN interfaces)  ● Remote reporting to Peplink Balance reporting server  ● Hardware high availability via VRRP, with automatic configuration synchronization   ● Real­time, hourly, daily and monthly bandwidth usage reports and charts    https://www.peplink.com  14  Copyright @ 2019 Peplink   ...
  • Page 15   ● Hardware backup via LAN bypass   ● Built­in WINS server  ● Time server synchronization  ● SNMP  ● Email notification  ● Syslog  ● SIP passthrough  ● PPTP packet passthrough  ● Active sessions  ● Active client list  ● WINS client list  ● UPnP / NAT­PMP  ● Event log is persistent across reboots  ● IPv6 support  ● Support for USB tethering on Android phones        https://www.peplink.com  15  Copyright @ 2019 Peplink   ...
  • Page 16: AdvancedĀ FeatureĀ Summary

        Advanced Feature Summary    Drop­in Mode and LAN Bypass: Transparent Deployment     As your organization grows, it needs more bandwidth. But modifying your network would require effort  better spent elsewhere. In   D rop­in Mode  ,  you can conveniently install your Peplink router without making  any changes to your network. And if the Peplink router loses power for any reason,   L AN Bypass    will  safely and automatically bypass the Peplink router to resume your original network connection.    QoS: Clearer VoIP     VoIP and videoconferencing are highly sensitive to latency. With QoS, Peplink routers can detect VoIP  traffic and assign it the highest priority, giving you crystal­clear calls.        https://www.peplink.com  16  Copyright @ 2019 Peplink   ...
  • Page 17: PerĀ­userĀ BandwidthĀ Control

      Per­User Bandwidth Control     With per­user bandwidth control, you can define bandwidth control policies for up to 3 groups of users to  prevent network congestion. Define groups by IP address and subnet, and set bandwidth limits for every  user in the group.    High Availability via VRRP     When your organization has a corporate requirement demanding the highest availability with no single  point of failure, you can deploy two Peplink routers in   H igh Availability mode  .  With High Availability mode,  the second device will take over when needed.    https://www.peplink.com  17  Copyright @ 2019 Peplink   ...
  • Page 18: UsbĀ ModemĀ AndĀ AndroidĀ Tethering

        USB Modem and Android Tethering     For increased WAN diversity, plug in a USB LTE modem as backup. Peplink routers are compatible with  over   2 00 modem types  .  You can also tether to smartphones running Android 4.1.X and above.  Built­In Remote User VPN Support     Use OpenVPN or  L2TP with IPsec to safely and conveniently connect remote clients to your private  network. L2TP with IPsec is supported by most devices, but legacy devices can also connect using  PPTP.   Click here for the full instructions on setting up L2TP with IPsec.  Click here for the full instructions on setting up OpenVPN connections        https://www.peplink.com  18  Copyright @ 2019 Peplink   ...
  • Page 19: LacpĀ NicĀ Bonding

      LACP NIC Bonding     Use 802.3ad to combine multiple LAN connections into a virtual LAN connection. This virtual connection  has higher throughput and redundancy in case any single link fails.        https://www.peplink.com  19  Copyright @ 2019 Peplink   ...
  • Page 20: PackageĀ Contents

      Package Contents  The contents of Peplink Balance product packages are as follows:  Peplink Balance One  ● Peplink Balance One  ● Power adapter  ● Information slip  Peplink Balance 20/30/30 LTE/50  ● Peplink Balance 20/30/30 LTE/50  ● Power adapter  ● Information slip  Peplink Balance 210/310  ● Peplink Balance 210/310  ● Power adapter  ● Information slip  ● Rackmount kit  Peplink Balance 305/380/580/710/1350/2500  ● Peplink Balance 305/380/580/710/1350/2500  ● Power cord  ● Information slip  ● Rackmount kit  Peplink MediaFast 200  ● Peplink MediaFast 200  ● Power adapter ...
  • Page 21: PeplinkĀ Epx

      Peplink EPX  ● Wireless SD­WAN Powerhouse  ● EPX Chassis with LCD  ● Optional x LTE­A modules  ● Optional x Copper ETH module  ● Optional x Fiber ETH module  ● Rack mounting kit with brackets and slide                  Peplink Balance Overview  Peplink Balance One  6.1.1 Panel Appearance      https://www.peplink.com  21  Copyright @ 2019 Peplink   ...
  • Page 22   – Booting up or busy  Status  Blinking red   –  Boot up error  Green    – Ready         LAN and WAN Ports   Green LED  ON – 10 / 100 / 1000 Mbps  Blinking – Data is transferring    Orange LED OFF – No data is being transferred or port is not connected  Port Type  Auto MDI/MDI­X ports    USB Port  USB Ports  For future functionality                          https://www.peplink.com  22  Copyright @ 2019 Peplink   ...
  • Page 23: PeplinkĀ Balance

      Peplink Balance 20  6.2.1 Panel Appearance        6.2.2 LED Indicators  The statuses indicated by the front panel LEDs are as follows    Power and Status Indicators  OFF – Power off  Power  Green    – Power on  OFF – Upgrading firmware  Red    – Booting up or busy  Status  Blinking red   –  Boot up error  Green    – Ready     LAN and WAN Ports   Green LED  ON – 10 / 100 / 1000 Mbps  Blinking – Data is transferring  Orange LED  OFF – No data is being transferred or port is not connected    https://www.peplink.com  23  Copyright @ 2019 Peplink   ...
  • Page 24: PeplinkĀ BalanceĀ 30Ā Lte

      Port Type  Auto MDI/MDI­X ports    USB Port  USB Ports  For connecting a 4G/3G USB modem    Peplink Balance 30 LTE  6.3.1 Panel Appearance      6.3.2 LED Indicators  The statuses indicated by the front panel LEDs are as follows:  Power and Status Indicators  OFF – Power off  Power  Green    – Power on  OFF – Upgrading firmware  Red    – Booting up or busy  Status  Blinking red   –  Boot up error  Green    – Ready     https://www.peplink.com  24  Copyright @ 2019 Peplink   ...
  • Page 25: PeplinkĀ Balance

          LAN and WAN Ports   Green LED  ON – 10 / 100 /1000 Mbps  Blinking – Data is transferring  Orange LED  OFF – No data is being transferred or port is not connected  Port Type  Auto MDI/MDI­X ports    USB Port  USB Ports  For connecting a 4G/3G USB modem      Peplink Balance 50  6.4.1 Front Panel Appearance          https://www.peplink.com  25  Copyright @ 2019 Peplink   ...
  • Page 26   – Power on  OFF – Upgrading firmware  Red    – Booting up or busy  Status  Blinking red   –  Boot up error  Green    – Ready     LAN and WAN Ports   Green LED  ON – 10 / 100 /1000 Mbps  Blinking – Data is transferring  Orange LED  OFF – No data is being transferred or port is not connected  Port Type  Auto MDI/MDI­X ports    USB Port  USB Ports  For connecting a 4G/3G USB modem                      https://www.peplink.com  26  Copyright @ 2019 Peplink   ...
  • Page 27: PeplinkĀ Balance

      Peplink Balance 210  6.5.1 Front Panel Appearance        6.5.2 LED Indicators  The statuses indicated by the front panel LEDs are as follows:  Power and Status Indicators  OFF – Upgrading firmware  Red    – Booting up or busy  Status  Blinking red   –  Boot up error  Green    – Ready                 https://www.peplink.com  27  Copyright @ 2019 Peplink   ...
  • Page 28: PeplinkĀ Balance

      LAN and WAN Ports   Green LED  ON – 10 / 100 / 1000 Mbps  Blinking – Data is transferring  Orange LED  OFF – No data is being transferred or port is not connected  Port Type  Auto MDI/MDI­X ports    USB Port  USB Ports  For connecting a 4G/3G USB modem    Peplink Balance 310  6.6.1 Front Panel Appearance                https://www.peplink.com  28  Copyright @ 2019 Peplink   ...
  • Page 29 Red    – Booting up or busy  Status  Blinking red   –  Boot up error  Green    – Ready     LAN and WAN Ports   Green LED  ON – 10 / 100 / 1000 Mbps  Blinking – Data is transferring  Orange LED  OFF – No data is being transferred or port is not connected  Port Type  Auto MDI/MDI­X ports    USB Port  USB Ports  For connecting a 4G/3G USB modem                            https://www.peplink.com  29  Copyright @ 2019 Peplink   ...
  • Page 30: PeplinkĀ Balance

      Peplink Balance 305  6.7.1 Front Panel Appearance      6.7.2 LED Indicators  The statuses indicated by the front panel LEDs are as follows:  Power and Status Indicators  OFF – Power off  Power LED  GREEN   –  Power on    LAN Port, WAN 1 – 3 Ports  ORANGE   –  1000 Mbps  Right LED  GREEN   –  100 Mbps  OFF – 10 Mbps  Solid – Port is connected without traffic  Left LED  Blinking – Data is transferring  OFF – Port is not connected  Port Type  Auto MDI/MDI­X ports      https://www.peplink.com  30  Copyright @ 2019 Peplink   ...
  • Page 31   Console and USB Ports  Console Port  Reserved for engineering use  USB Ports  For connecting a 4G/3G USB modem    Peplink Balance 380  6.8.1 Panel Appearance      6.8.2 LED Indicators  The statuses indicated by the front panel LEDs are as follows:     Power and Status Indicators  OFF – Power off  Power LED  GREEN   –  Power on                https://www.peplink.com  31  Copyright @ 2019 Peplink   ...
  • Page 32: ConfigureĀ AĀ WebsiteĀ ToĀ BeĀ PublishedĀ FromĀ TheĀ Contenthub 1

      LAN Port, WAN 1 – 3 Ports  ORANGE   –  1000 Mbps  Right LED  GREEN   –  100 Mbps  OFF – 10 Mbps  Solid – Port is connected without traffic  Left LED  Blinking – Data is transferring  OFF – Port is not connected  Port Type  Auto MDI/MDI­X ports      Console and USB Ports  Console Port  Reserved for engineering use  USB Ports  For connecting a 4G/3G USB modem    Peplink Balance 580  6.9.1 Panel Appearance             https://www.peplink.com  32  Copyright @ 2019 Peplink   ...
  • Page 33 –  Power on    LAN Port, WAN 1 – 5 Ports  ORANGE    – 1000 Mbps  Right LED  GREEN   –  100 Mbps  OFF – 10 Mbps  Solid – Port is connected without traffic  Left LED  Blinking – Data is transferring  OFF – Port is not connected  Port Type  Auto MDI/MDI­X ports    Console and USB Ports  Console Port  Reserved for engineering use  USB Ports  For connecting a 4G/3G USB modem                            https://www.peplink.com  33  Copyright @ 2019 Peplink   ...
  • Page 34   6.10 Peplink Balance 710  6.10.1 Front Panel Appearance        6.10.2 LED Indicators  Status indicated in the front panel is as follows:  LED Indicator  OFF – Power off  Power LED  GREEN    – Power on    LAN Port, WAN 1 – 7 Ports  ON – 1000 Mbps  Green LED  OFF – 100/10 Mbps  Solid – Port is connected without traffic  Orange LED  Blinking – Data is transferring  OFF – Port is not connected  Port Type  Auto MDI/MDI­X ports      https://www.peplink.com  34  Copyright @ 2019 Peplink   ...
  • Page 35: PeplinkĀ BalanceĀ 1350

      Console & USB Ports  Console Port  Reserved for engineering use  USB Ports  For connecting a 4G/3G USB modem    6.11 Peplink Balance 1350  6.11.1 Panel Appearance          6.11.2 LED Indicators  Status indicated in the front panel is as follows:  LED Indicator  OFF – Power off  Power LED  GREEN   –  Power on                https://www.peplink.com  35  Copyright @ 2019 Peplink   ...
  • Page 36   LAN Port, WAN 1 – 13 Ports  ORANGE    – 1000 Mbps  Right LED  GREEN   –  100 Mbps  OFF – 10 Mbps  Solid – Port is connected without traffic  Left LED  Blinking – Data is transferring  OFF – Port is not connected  Port Type  Auto MDI/MDI­X ports    Console & USB Ports  Console Port  Reserved for engineering use  USB Ports  For connecting a 4G/3G USB modem            https://www.peplink.com  36  Copyright @ 2019 Peplink   ...
  • Page 37: PeplinkĀ BalanceĀ 2500

      6.12 Peplink Balance 2500  6.12.1 Panel Appearance          6.12.2 LED Indicators  Status indicated in the front panel is as follows:  LED Indicator  OFF – Power off  Power LED  GREEN   –  Power on                    https://www.peplink.com  37  Copyright @ 2019 Peplink   ...
  • Page 38: PeplinkĀ MediafastĀ Overview

      LAN and WAN Ports  ORANGE    – 1000 Mbps  Right LED  GREEN   –  100 Mbps  OFF – 10 Mbps  Solid – Port is connected without traffic  Left LED  Blinking – Data is transferring  OFF – Port is not connected  Port Type  Auto MDI/MDI­X ports    Console & USB Ports  Console Port  Reserved for engineering use  USB Ports  For connecting a 4G/3G USB modem    Peplink MediaFast Overview    Peplink MediaFast 200  7.1.1 Panel Appearance        https://www.peplink.com  38  Copyright @ 2019 Peplink   ...
  • Page 39 7.1.2 LED Indicators  Status indicated in the front panel is as follows:  LED Indicator  OFF – Power off  Power LED  GREEN   –  Power on    LAN 1­3 Ports, WAN 1­5 Ports  ORANGE    – 1000 Mbps  Right LED  GREEN   –  100 Mbps  OFF – 10 Mbps  Solid – Port is connected without traffic  Left LED  Blinking – Data is transferring  OFF – Port is not connected  Port Type  Auto MDI/MDI­X ports    Console & USB Ports  Console Port  Reserved for engineering use  USB Ports  For connecting 4G/3G USB modems            https://www.peplink.com  39  Copyright @ 2019 Peplink   ...
  • Page 40: PeplinkĀ Mediafast

      Peplink MediaFast 500  7.2.1 Panel Appearance             7.2.2 LED Indicators  Status indicated in the front panel is as follows:  LED Indicator  OFF – Power off  Power LED  GREEN   –  Power on    LAN 1­3 Ports, WAN 1­5 Ports  ORANGE    – 1000 Mbps  Right LED  GREEN   –  100 Mbps  OFF – 10 Mbps  Solid – Port is connected without traffic  Left LED  Blinking – Data is transferring  OFF – Port is not connected  Port Type  Auto MDI/MDI­X ports    https://www.peplink.com  40  Copyright @ 2019 Peplink   ...
  • Page 41     Console & USB Ports  Console Port  Reserved for engineering use  USB Ports  For connecting 4G/3G USB modems    Peplink MediaFast 750  7.3.1 Panel Appearance        7.3.2 LED Indicators  Status indicated in the front panel is as follows:  LED Indicator  OFF – Power off  Power LED  GREEN   –  Power on                    https://www.peplink.com  41  Copyright @ 2019 Peplink   ...
  • Page 42     LAN 1­3 Ports, WAN 1­5 Ports  ORANGE    – 1000 Mbps  Right LED  GREEN   –  100 Mbps  OFF – 10 Mbps  Solid – Port is connected without traffic  Left LED  Blinking – Data is transferring  OFF – Port is not connected  Port Type  Auto MDI/MDI­X ports    Console & USB Ports  Console Port  Reserved for engineering use  USB Ports  For connecting 4G/3G USB modems        https://www.peplink.com  42  Copyright @ 2019 Peplink   ...
  • Page 43: PeplinkĀ EpxĀ Overview

        Peplink EPX Overview  Peplink EPX  The EPX is a rapidly deployable, powerful, and versatile SD­WAN router that connects a wide range of  WAN options from LTE­A, satellite modems, to fixed line networks which can be used simultaneously to  allow bonding using our SpeedFusion technology.  With its modular construction, the EPX is suitable for any deployment.  8.1.1 Main Chassis    EPX Main Chassis  Power Input  AC Input 100V ­ 240V  Power Consumption  220W  Throughput  30Gbps  PepVPN/SpeedFusion Throughput  2Gbps  (256­bit AES)  Dimensions  18.9 x 21.7 x 3.6 inches ­ 480 x 550 x 90 mm  Weight (No Modules)  31.3 pounds  ­ 14.2 kilograms  Operating Temperature  32° – 113°F (0° – 45°C)  Humidity  5% – 90% (non­condensing)  FCC, IC, CE­RED  EN 50155: Railway Applications  EN 61373:1999 IEC 61373:1999 : Shock and Vibration  Certifications  Resistance  EN 50121: Rolling Stock EMC, Signalling and Telecom  Apparatus    https://www.peplink.com  43  Copyright @ 2019 Peplink ...
  • Page 44   Warranty  1­Year Limited Warranty      8.1.2 Panel Appearance                      https://www.peplink.com  44  Copyright @ 2019 Peplink   ...
  • Page 45 8.1.3 LED Indicators    Status indicated in the LAN/WAN port module is as follows:  Note: some EPX configurations are not  shipped with this module    LED Indicator  OFF – Power off   Power LED  GREEN – Power on    LAN Port, WAN Ports  ORANGE – Enabled as WAN port   Right LED  GREEN – PoE enabled  OFF – Port is not connected  Solid – Port is connected without traffic   Left LED  Blinking – Data is transferring  OFF – Port is not connected   Port Type  Auto MDI/MDI­X ports    Console & USB Ports   Console Port  Reserved for engineering use   USB Ports  For connecting a 4G/3G USB modem                  https://www.peplink.com  45  Copyright @ 2019 Peplink   ...
  • Page 46: ExpansionĀ Modules

      8.1.4 Expansion Modules      3x LTE­A Module  Interface  3x Embedded LTE­A Cellular Modems with Redundant SIM Slots  6x SMA Cellular Antenna Connectors  Antenna Connectors  1x SMA GPS Antenna Connector  Power Consumption  20W  Weight  0.83 pounds ­ 375 grams        https://www.peplink.com  46  Copyright @ 2019 Peplink   ...
  • Page 47     8x GE PoE Module  Interface  8x 10/100/1000M Ethernet Ports Capable of PoE+  Power Consumption  20W (260W max. with 802.3at/af PoE+ Output)  Weight  1.1 pounds 475 grams            https://www.peplink.com  47  Copyright @ 2019 Peplink   ...
  • Page 48     4x SFP+ Module  Interface  4x SFP+ Ports  Power Consumption  20W  Weight  0.83 pounds ­ 375 grams        https://www.peplink.com  48  Copyright @ 2019 Peplink   ...
  • Page 49: LcdĀ DisplayĀ Menu

    > VPN status (shows Connected/Disconnected)  >  V PN Profile 1  >  V PN Profile 2  >  …   >  V PN Profile n  > Link usage   > Throughput in (shows transfer rate in Kbps)  > WAN1   > WAN2  > WAN3*  > Throughput out (shows transfer rate in Kbps)  > WAN1   > WAN2  > WAN3*  > Data Transfered (shows volume transferred since last reboot in MB)  > WAN1  > WAN2  > WAN3*  > Maintenance     https://www.peplink.com  49  Copyright @ 2019 Peplink   ...
  • Page 50: Installation

    (to reboot the unit)  > Factory default > Factory default? (Yes/No) (to restore factory defaults)   > LAN config   > Port speed (shows port speed: Auto, 10baseT­FD, 10baseT­HD,  > LAN 100baseTx­FD, 100baseTx­HD, 1000baseTx­FD)  > WAN1   > WAN2  > WAN3*      *Layout continues as such for all available WAN ports   10 Installation  The following section details connecting the Peplink Balance to your network:  10.1 Preparation  Before installing your Peplink Balance, please prepare the following:  ● At least one Internet/WAN access account  ● For each network connection, one 10/100BaseT UTP cable with RJ45 connector, one 1000BaseT  Cat5E UTP cable for the Gigabit port, or one USB modem for the USB WAN port  ● A computer with the TCP/IP network protocol and a web browser installed— Supported browsers  include Microsoft Internet Explorer 11 or above, Mozilla Firefox 24 or above, Apple Safari 7 or  above, and Google Chrome 18 or above.  10.2 Constructing the Network  At the high level, construct the network according to the following steps:  With an Ethernet cable, connect a computer to one of the LAN ports on the Peplink Balance. For  Peplink Balance models that support multiple connections, repeat with different cables for up to four  computers to be connected.  With another Ethernet cable, connect the WAN/broadband modem to one of the WAN ports on the ...
  • Page 51: BasicĀ Configuration

              access the web admin interface.    Username  :  admin  Password  :  admin    (This is the default admin user login of the Peplink Balance. The admin and read­only user                    ...
  • Page 52: ConfigurationĀ WithĀ TheĀ SetupĀ Wizard

    Setup Wizard, the WAN port to be configured in drop­in mode                                     will be checked by default.    https://www.peplink.com  52  Copyright @ 2019 Peplink   ...
  • Page 53 If you are not using drop­in mode, select the connection method for the WAN connection(s) from the                                   following screen:    https://www.peplink.com  53  Copyright @ 2019 Peplink   ...
  • Page 54                 Configuring the WAN Interface(s)    for details on setting up DHCP, static IP, and PPPoE.  If   M obile Internet Connection   i s checked, the setup wizard will move on to   O perator Settings  .     If   C ustom Mobile Operator Settings   i s selected, APN parameters are required. Some service providers  may charge a fee for connecting to a different APN. Please consult your service provider for the correct  settings.    Click on the appropriate check box(es) to select the preferred WAN connection(s). Connection(s) not  selected in this step will be used as a backup only. Click   N ext >>    to continue.    https://www.peplink.com  54  Copyright @ 2019 Peplink   ...
  • Page 55 Check in the following screen to make sure all settings have been configured correctly, and then click                                   “  S ave Settings”   t o confirm.    After finishing the last step in the setup wizard, click   A pply Changes   o n the page header to allow the  configuration changes to take effect.      https://www.peplink.com  55  Copyright @ 2019 Peplink   ...
  • Page 56: NetworkĀ Tab

      12 Network Tab  12.1 WAN  From   N etwork>WAN  ,    c hoose a WAN connection by clicking it.    You can also enable IPv6 support in this section    WAN Connection Settings (Ethernet)    Clicking an Ethernet WAN connection will result in the following screen:             https://www.peplink.com  56  Copyright @ 2019 Peplink   ...
  • Page 57: L2TpĀ WithĀ Ipsec 1

    If   B ackup    is chosen, the WAN connection will depend on other WAN connections. It will not  be used when one or more higher priority dependent WAN connections are connected.  Independent  If this is checked, the connection will be working independent from other Backup WAN  from Backup  connections. Those in Backup Priority will ignore the status of this WAN connection, and  will be used when none of the other higher priority connections are available.  WANs  If the checkbox is   u nticked  ,  this option is disabled and the system will not reply to any  Reply to ICMP  ICMP ping echo requests to the WAN IP addresses of this WAN connection.  PING  Default:    ticked    (enabled)  This field refers to the maximum upload speed.  Upload  This value is referenced when default weight is chosen for outbound traffic and traffic  Bandwidth  prioritization. A correct value can result in effective traffic prioritization and efficient use of  upstream bandwidth.  This field refers to the maximum download speed.  Download  Bandwidth  Default weight control for outbound traffic will be adjusted according to this value.    https://www.peplink.com  57  Copyright @ 2019 Peplink   ...
  • Page 58     WAN Connection Settings (Cellular)    Clicking an Ethernet WAN connection will result in the following screens:                                       https://www.peplink.com  58  Copyright @ 2019 Peplink   ...
  • Page 59 Connection  If   A lways­on    is chosen, the WAN connection will be kept on continuously, regardless of the  priority of other WAN connections.  Priority  If   B ackup    is chosen, the WAN connection will depend on other WAN connections. It will not be  used when one or more higher priority dependent WAN connections are connected.  Independent  If this is checked, the connection will be working independent from other Backup WAN  from Backup  connections. Those in Backup Priority will ignore the status of this WAN connection, and will  be used when none of the other higher priority connections are available.  WANs  If this is checked, the connection will disconnect when idle after the configured Time value.  Idle Disconnect  This option is disabled by default.  Each ISP may provide a set of DNS servers for DNS lookups. This setting specifies the  DNS (Domain Name System) servers to be used when a DNS lookup is routed through this  connection.     Selecting Obtain DNS server address automatically results in the DNS servers   DNS Servers  assigned by the WAN DHCP server being used for outbound DNS lookups over the  connection. (The DNS servers are obtained along with the WAN IP address assigned by  the DHCP server.) When Use the following DNS server address(es) is selected, you may enter  custom DNS server addresses for this WAN connection into the DNS server 1 and DNS server  2 fields.      https://www.peplink.com  59  Copyright @ 2019 Peplink   ...
  • Page 60       Cellular Settings  Indicate which SIM card this cellular WAN will use. Only applies to cellular WAN with  SIM Card  redundant SIM cards.  Preferred SIM  If both cards were enabled on the above field, then you can designate the priority of the SIM  card slots here.  Card  This drop­down menu allows restricting cellular to particular band. Click the   button to  LTE/3G  enable the selection of specific bands.  Cellular WAsN by default will only handover from 3G to LTE network when there is no active  Optimal Network  data traffic, enable this option will make it run the handover procedures after fallback to 3G for  Discovery  a defined effective period, even this may interrupt the connectivity for a short while.    https://www.peplink.com  60  Copyright @ 2019 Peplink   ...
  • Page 61 SIM PIN  Bandwidth  Check the box Enable to enable bandwidth usage monitoring on this WAN connection for  Allowance  each billing cycle. When this option is not enabled, bandwidth usage of each month is still  being tracked but no action will be taken.  Monitor      If  e mail notification is enabled, you will be notified by email when usage hits 75% and 95% of  the monthly allowance. If   D isconnect when usage hits 100% of monthly allowance    is  Action  checked, this WAN connection will be disconnected automatically when the usage hits the  monthly allowance. It will not resume connection unless this option has been turned off or the  usage has been reset when a new billing cycle starts.  Start Day  This option allows you to define which day of the month each billing cycle begins.   Monthly  This field is for defining the maximum bandwidth usage allowed for the WAN connection each  Allowance  month.                    https://www.peplink.com  61  Copyright @ 2019 Peplink   ...
  • Page 62   Signal Threshold Settings      If signal threshold is defined, this connection will be treated as down when a weaker than threshold signal  is determined.    The following values are used by the threshold scale:   To define the threshold manually using  specific signal strength values, please click on the question Mark    and the following field will be visible.     WAN Connection Settings (Common)  The remaining WAN­related settings are common to both Ethernet and cellular WAN            https://www.peplink.com  62  Copyright @ 2019 Peplink   ...
  • Page 63 When a static speed is set, you may choose whether to advertise its speed to the peer  Speed  device or not. Advertise Speed is selected by default. You can choose not to advertise the  port speed if the port has difficulty in negotiating with the peer device.  Default: Auto  This field is for specifying the Maximum Transmission Unit value of the WAN connection. An  MTU  excessive MTU value can cause file downloads stall shortly after connected. You may  consult your ISP for the connection's MTU value. Default value is 1440.  This field is for specifying the Maximum Segment Size of the WAN connection.  When Auto is selected, MSS will be depended on the MTU value. When Custom is selected,  you may enter a value for MSS. This value will be announced to remote TCP servers for  maximum data that it can receive during the establishment of TCP connections.  Some Internet servers are unable to listen to MTU setting if ICMP is filtered by firewall  MSS  between the connections.  Normally, MSS equals to MTU minus 40. You are recommended to reduce the MSS only if  changing of the MTU value cannot effectively inform some remote servers to size down data  size.  Default: Auto  Some service providers (e.g. cable network) identify the client's MAC address and require  client to always use the same MAC address to connect to the network. If it is the case, you  MAC Address  may change the WAN interface's MAC address to the client PC's one by entering the PC's  Clone  MAC address to this field. If you are not sure, click the Default button to restore to the default  value.  VLAN  Check the box to assign a VLAN to the interface.                https://www.peplink.com  63  Copyright @ 2019 Peplink   ...
  • Page 64   DHCP Settings   If your service provider's DHCP server requires you to supply a hostname value upon  Hostname  acquiring an IP address, you may enter the value here. If your service provider does not  (Optional)  provide you with a hostname, you can safely bypass this option.  Each ISP may provide a set of DNS servers for DNS lookups. This setting specifies the  DNS (Domain Name System) servers to be used when a DNS lookup is routed through this  connection.     Selecting    Obtain DNS server address automatically   r esults in the DNS servers   DNS Servers  assigned by the WAN DHCP server being used for outbound DNS lookups over the  connection. (The DNS servers are obtained along with the WAN IP address assigned by  the DHCP server.) When   U se the following DNS server address(es)    is selected, you may  enter custom DNS server addresses for this WAN connection into the   D NS server 1    and  DNS server 2    fields.          https://www.peplink.com  64  Copyright @ 2019 Peplink   ...
  • Page 65: HealthĀ CheckĀ Settings 6

      Health Check Settings  To ensure traffic is routed to healthy WAN connections only, the Peplink Balance can periodically check  the health of each WAN connection.  Health Check settings for each WAN connection can be independently configured via  Network>Interfaces>WAN>*Connection name*>Health Check Settings.    Enable Health Check by selecting PING, DNS Lookup, or HTTP from the Health Check Method  drop­down menu.  Health Check Settings  This setting specifies the health check method for the WAN connection. This value can be  configured as   D isabled  ,    P ING  ,    D NS Lookup  ,  or   H TTP  .  The default method is   D NS  Method  Lookup  .  For mobile Internet connections, the value of   M ethod    can be configured as  Disabled   o r   S martCheck  .  ...
  • Page 66 If   I nclude public DNS servers    is selected and no response is received from all specified  DNS Servers  DNS servers, DNS lookups will also be issued to some public DNS servers. A WAN  connection will be treated as down only if there is also no response received from the public  DNS servers.  Connections will be considered as up if DNS responses are received from any one of the  health check DNS servers, regardless of a positive or negative result. By default, the first  two DNS servers of the WAN connection are used as the health check DNS servers.  Health Check Method: HTTP      HTTP connections will be issued to test connectivity with configurable URLs and strings to match.  WAN Settings>WAN Edit>Health Check Settings>URL1  The URL will be retrieved when performing an HTTP health check. When   S tring to Match  is left blank, a health check will pass if the HTTP return code is between 200 and 299  URL1  (Note: HTTP redirection codes 301 or 302 are treated as failures). When   S tring to Match    is  filled, a health check will pass if the HTTP return code is between 200 and 299 and if the  HTTP response content contains the string.  WAN Settings>WAN Edit>Health Check Settings>URL2  URL 2  If   U RL2    is also provided, a health check will pass if either one of the tests passed.          https://www.peplink.com  66  Copyright @ 2019 Peplink   ...
  • Page 67 5  seconds  .   Health Check  This setting specifies the time interval in seconds between ping or DNS lookup requests.  Interval  The default health check interval is   5  seconds  .   This setting specifies the number of consecutive ping/DNS lookup timeouts after which the  Health Check  Peplink Balance will treat the corresponding WAN connection as down. Default health  Retries  retries is set to   3   .  Using the default   H ealth Retries    setting of   3   ,  the corresponding WAN  connection will be treated as down after three consecutive  timeouts.  This setting specifies the number of consecutive successful ping/DNS lookup responses  that must be received before the Peplink Balance treats a previously down WAN connection  Recovery  as up again. By default,   R ecover Retries   i s set to   3   .  Using the default setting, a WAN ...
  • Page 68: BandwidthĀ AllowanceĀ MonitorĀ Settings

      Bandwidth Allowance Monitor Settings     Bandwidth Allowance Monitor  If   E mail Notification    is enabled, you will be notified by email when usage hits 75% and  95% of the monthly allowance.  If   D isconnect when usage hits 100% of monthly allowance    is checked, this WAN  Action  connection will be disconnected automatically when the usage hits the monthly allowance.  It will not resume connection unless this option has been turned off or the usage has been  reset when a new billing cycle starts.  Start Day  This option allows you to define which day of the month each billing cycle begins.   Monthly  This field is for defining the maximum bandwidth usage allowed for the WAN connection  Allowance  each month.    Disclaimer  Due to different network protocol overheads and conversions, the amount of data reported by this Peplink device  is not representative of actual billable data usage as metered by your network provider. Peplink disclaims any  obligation or responsibility for any events arising from the use of the numbers shown here.    Additional Public IP Settings      https://www.peplink.com  68  Copyright @ 2019 Peplink   ...
  • Page 69: DynamicĀ DnsĀ Settings

        Additional Public IP Settings  IP Address List    represents the list of fixed Internet IP addresses assigned by the ISP in the  event that more than one Internet IP address is assigned to this WAN connection. Enter the  IP Address List  fixed Internet IP addresses and the corresponding subnet mask, and then click the   D own  Arrow    button to populate IP address entries to the   I P Address List  .       Dynamic DNS Settings  Peplink Balance routers allow registering domain name relationships to dynamic DNS service providers.  Through registration with dynamic DNS service provider(s), the default public Internet IP address of each  WAN connection can be associated with a hostname. With dynamic DNS service enabled for a WAN  connection, you can connect to your WAN's IP address externally even if its IP address is dynamic. You  must register for an account from the listed dynamic DNS service providers before enabling this option.    If the WAN connection's IP address is a reserved private IP address (i.e., behind a NAT router), the public  IP of each WAN will be automatically reported to the DNS service provider.    Either upon a change in IP addresses or every 23 days without link reconnection, the Peplink Balance will  connect to the dynamic DNS service provider to update the provider’s IP address records.    The settings for dynamic DNS service provider(s) and the association of hostname(s) are configured via  Network>Interfaces>WAN>*Connection name*>Dynamic DNS Settings  .        ...
  • Page 70 Service Provider  ● DNS­O­Matic  ● Others…  support custom Dynamic DNS servers by entering its URL. Works with any  service compatible with DynDNS API.    Select   D isabled    to disable this feature.  User ID / User /  This setting specifies the registered user name for the dynamic DNS service.  Email  Password / Pass /  This setting specifies the password for the dynamic DNS service.  TZO Key  Update All Hosts  Check this box to automatically update all hosts.    This setting specifies a list of hostnames or domains to be associated with the public  Internet IP address of the WAN connection.  Hosts / Domain    Important Note  In order to use dynamic DNS services, appropriate hostname registration(s), as well as a valid account with a  supported dynamic DNS service provider, are required.  A dynamic DNS update is performed whenever a WAN’s IP address is changed, such as when an IP is changed  after a DHCP IP refresh or reconnection.  Due to dynamic DNS service providers’ policies, a dynamic DNS host expires automatically when the host record  has not been not updated for a long time. Therefore, the Peplink Balance performs an update every 23 days, even if  a WAN’s IP address did not change.    https://www.peplink.com  70  Copyright @ 2019 Peplink   ...
  • Page 71: Lan

      12.2 LAN   12.2.1 Network Settings    LAN interface settings are located at   N etwork>LAN>Network Settings  .  Navigating to that page will  show the following dashboard:    This represents the LAN interfaces that are active on your router (including VLAN). A grey “X” means that  the VLAN is used in other settings and cannot be deleted. You can find which settings are using the VLAN  by hovering over the grey “X”.  Alternatively, a red “X” means that there are no settings using the VLAN. You can delete that VLAN by  clicking the red “X”  Clicking on any of the existing LAN interfaces (or creating a new one) will show the following :    IP Settings  IP Address  The IP address and subnet mask of the Pepwave router on the LAN.        https://www.peplink.com  71  Copyright @ 2019 Peplink   ...
  • Page 72         Network Settings  Name  Enter a name for the LAN.  Enter a number for your VLAN.  VLAN ID  Inter­VLAN routing  Check this box to enable routing between virtual LANs.          Layer 2 PepVPN Bridging  The remote network of the selected PepVPN profiles will be bridged with this local  PepVPN Profiles  LAN, creating a Layer 2 PepVPN, they will be connected and operate like a single  to Bridge  LAN, and any broadcast or multicast packets will be sent over the VPN.  Remote Network  Enable this option if you want to block network traffic between the remote  Isolation  networks, this will not affect the connectivity between them and this local LAN.  Spanning Tree  Click the box will enable STP for this layer 2 profile bridge.  Protocol  Select "Do not override" if the LAN IP address and local DHCP server should  Override IP  remain unchanged after the Layer 2 PepVPN is up.  Address when  bridge connected      https://www.peplink.com  72  Copyright @ 2019 Peplink   ...
  • Page 73 DHCP Server Settings  When this setting is enabled, the DHCP server automatically assigns an IP  address to each computer that is connected via LAN and configured to obtain an  DHCP Server  IP address via DHCP. The Pepwave router’s DHCP server can prevent IP  address collision on the LAN.  DHCP Server  Enable logging of DHCP events in the eventlog by selecting the checkbox.  Logging  IP Range &  These settings allocate a range of IP addresses that will be assigned to LAN  Subnet Mask  computers by the Pepwave router’s DHCP server.  This setting specifies the length of time throughout which an IP address of a  DHCP client remains valid. Upon expiration of the lease time, the assigned IP  Lease Time  address will no longer be valid and renewal of the IP address assignment will be  required.  This option allows you to input the DNS server addresses to be offered to DHCP  DNS Servers  clients. If   A ssign DNS server automatically    is selected, the Pepwave router’s  built­in DNS server address (i.e., LAN IP address) will be offered.  This option allows you to optionally specify a Windows Internet Name Service  WINS Servers  (WINS) server. You may choose to use the   b uilt­in WINS server   o r   e xternal    https://www.peplink.com  73  Copyright @ 2019 Peplink   ...
  • Page 74 DHCP  Name    (an optional field) allows you to specify a name to represent the device.  Reservation  MAC addresses should be in the format of   0 0:AA:BB:CC:DD:EE  .  Press   to  create a new record. Press   to remove a record. Reserved client  information can be imported from the   C lient List  ,  located at      S tatus>Client List  .   For more details, please refer to   S ection    22.3.              https://www.peplink.com  74  Copyright @ 2019 Peplink   ...
  • Page 75: NetworkĀ SettingsĀ (CommonĀ Settings) 7

    82  network name are embedded to circuit ID and Remote ID in option 82.  DHCP Relay  Check this box to log DHCP relay activity.  Logging    12.2.2 Network Settings (Common Settings)      Static Route Settings  This table is for defining static routing rules for the LAN segment. A static route consists of  the network address, subnet mask, and gateway address. The address and subnet mask  values are in      w .x.y.z      f ormat.  The local LAN subnet and subnets behind the LAN will be advertised to the VPN. Remote  Static Route  routes sent over the VPN will also be accepted. Any VPN member will be able to route to  the local subnet. Click   to create a new route. Click   to remove a route.  Entries in this list will allow traffic to route to a different subnet that is connected to the LAN  interface. Any traffic destined for a network/mask pair will be directed to the corresponding  gateway instead of routed through WANs.        In case of a network address conflict with remote peers (i.e. PepVPN / IPsec VPN / IP Forwarding WAN    https://www.peplink.com  75  Copyright @ 2019 Peplink   ...
  • Page 76 Note: OSPF & RIPv2 settings should be updated as well to avoid advertising conflicted network.    See:   ttps://youtu.be/C1FMdZCn3Z8      Virtual Network Mapping  Every IP Address in the Local Network has a corresponding unique Virtual IP Address for  One­to­One  NAT.   Traffic originating from the Local Network to remote connections will be SNAT'ed and  NAT  behave like coming from the defined Virtual Network.   While traffic initiated by remote peers to the Virtual Network will be DNAT'ed accordingly.  Many­to­One  The subnet range defined in Local Network will be mapped to a single Virtual IP Address for  NAT. Traffic can only be initiated from local to remote, and these traffic will be NAT'ed and  NAT  behaves like coming from the same Virtual IP Address.        WINS Server Settings  Check the box to enable the WINS Server. A list of WINS clients will be displayed at  Enable  Status>WINS Clients  .     Enter any needed DNS proxy settings. Once all settings have been entered, click   S ave    to store your  changes.    https://www.peplink.com  76  Copyright @ 2019 Peplink   ...
  • Page 77 D NS servers/resolvers  defined for each WAN connection.  This field is to enable DNS caching on the built­in DNS proxy server. When the option is  enabled, queried DNS replies will be cached until the records’ TTL has been reached. This  DNS Caching  feature can improve DNS response time by storing all received DNS results for faster DNS  lookup. However, it cannot return the most updated result for frequently updated DNS  records. By default,   D NS Caching   i s disabled.  Include Google  When this option is enabled, the DNS proxy server will forward DNS requests to   G oogle's  Public DNS  ,    public DNS servers  i n addition to the DNS servers defined in each WAN. This could  Servers  increase the DNS service's availability. This setting is disabled by default.  This table is for defining custom local DNS records. A static local DNS record consists of a  Local DNS  host name and IP address. When looking up the host name from the LAN to LAN IP of the  Peplink Balance, the corresponding IP address will be returned. To display the option to set  Records  TTL manually, click  . Click   to create a new record. Click   to remove a    https://www.peplink.com  77  Copyright @ 2019 Peplink   ...
  • Page 78 Save    to store your changes.        Bonjour Forwarding Settings  Enable  Check this box to turn on Bonjour forwarding.  Choose   S ervice    and   C lient    networks from the drop­down menus, and then click   to  Bonjour  add the networks. To delete an existing Bonjour listing, click  .  Service  A ll Balance models, MAX 700, HD2, HD4 Bonjour Forwarding is supported on           Drop­In Mode    Drop­in mode (or transparent bridging mode) eases the installation of the Peplink Balance on a live  network between the firewall and router, such that changes to the settings of existing equipment are not  required.  The following diagram illustrates drop­in mode setup:    https://www.peplink.com  78  Copyright @ 2019 Peplink   ...
  • Page 79                       Enable drop­in mode using the Setup Wizard. After enabling this feature and selecting the WAN for  drop­in mode, various settings, including the WAN's connection method and IP address, will be  automatically updated.  When drop­in mode is enabled, the LAN and the WAN for drop­in mode ports will be bridged. Traffic  between the LAN hosts and WAN router will be forwarded between the devices. In this case, the hosts on  both sides will not notice any IP or MAC address changes.  After successfully setting up the Peplink Balance as part of the network using drop­in mode, it will,  depending on model, support one or more WAN connections. Some  MediaFast units also support  multiple WAN connections after activating drop­in mode, though a SpeedFusion license may be required  to activate more than one WAN port.     Please note the Drop­In Mode is mutually exclusive with VLAN.      https://www.peplink.com  79  Copyright @ 2019 Peplink   ...
  • Page 80       Drop­in Mode Settings  Drop­in mode eases the installation of the Peplink Balance on a live network between the  existing firewall and router, such that no configuration changes are required on existing  Enable  equipment. Check the box to enable the drop­in mode feature.  Please refer to   S ection 12, Drop­in Mode   f or details.  WAN for  Select the WAN port to be used for drop­in mode. If   W AN 1 with LAN Bypass    is selected,  Drop­In Mode  the high availability feature will be disabled automatically.  When this option is enabled, the passthrough IP address will be used to connect to WAN  hosts (email notification, remote syslog, etc.). The Balance will listen for this IP address  when WAN hosts access services provided by the Balance (web admin access from the  Shared Drop­In  WAN, DNS server requests, etc.).  IP    To connect to hosts on the LAN (email notification, remote syslog, etc.), the default gateway  address will be used. The Balance will listen for this IP address when LAN hosts access  services provided by the Balance (web admin access from the WAN, DNS proxy, etc.).  Access to this IP address will be passed through to the LAN port if this device is not serving  the service being accessed. The shared IP address will be used in connecting to hosts on  Shared IP  the WAN (e.g., email notification, remote syslog, etc.) The device will also listen on the IP  Address    address when hosts on the WAN access services served on this device (e.g., web admin  accesses from WAN, DNS server, etc.)   ...
  • Page 81: PortĀ Settings

      box and enter the IP address of the hosts that  need to access LAN devices or be accessed by others.  WAN DNS  Enter the selected WAN's corresponding DNS server IP addresses.  Servers  A   ­   A dvanced feature, please click the   button on the top right­hand corner to activate.        12.2.3 Port Settings  To configure port settings, navigate to   N etwork > Port Settings        This section allows you to:    ●  enable or disable specific LAN ports  ● Configure the negotiation speed of the LAN ports  ● Configure the port type (Trunk or Access)  ● Assign a VLAN to a LAN port (in Access mode)      https://www.peplink.com  81  Copyright @ 2019 Peplink   ...
  • Page 82: Vpn

      12.3 VPN  12.3.1 SpeedFusion    Peplink Balance SpeedFusion      TM     Bandwidth Bonding       is our patented technology that enables our SD­WAN                 routers to bond multiple Internet connections to increase site­to­site bandwidth and reliability.
  • Page 83     SpeedFusion Profiles  This table displays all defined profiles. Click the   N ew Profile    button to create a new profile for making a VPN  connection to a remote unit via available WAN connections. Each pair of VPN connection requires its own profile.    The local LAN subnet and subnets behind the LAN (defined under Static Route on the LAN Settings page) will be  advertised to the VPN. All VPN members will be able to route to local subnets.        Send All Traffic To  This feature allows you to redirect all traffic to a specified PepVPN connection. Click the   button to select  your connection and the following menu will appear:        You could also specify a DNS server to resolve incoming DNS requests. Click the checkbox next to   B ackup Site    to  designate a backup SpeedFusion profile that will take over, should the main PepVPN connection fail.        PepVPN Local ID  This feature allows you to change the local ID of a PepVPN connection. Click the   button to select your  connection and the following menu will appear:    https://www.peplink.com  83  Copyright @ 2019 Peplink   ...
  • Page 84 Detection Time  When   F ast   i s selected, a health check packet is sent every three seconds, and the  expected detection time is six seconds.    When   F aster   i s selected, a health check packet is sent every second, and the expected  detection time is two seconds.    When   E xtreme   i s selected, a health check packet is sent every 0.1 second, and the  expected detection time is less than one second.    Important Note    Peplink proprietary SpeedFusion  TM   uses TCP port 32015 and UDP port 4500 for establishing VPN connections. If  you have a firewall in front of your Peplink Balance devices, you will need to add firewall rules for these ports and  protocols to allow inbound and outbound traffic to pass through the firewall.    SpeedFusion: Profile Configuration  Click the   N ew Profile    button, or click one of the existing profiles, and the following menus will appear:        https://www.peplink.com ...
  • Page 85 By default, VPN traffic is encrypted with   2 56­bit AES  .  If   O ff    is selected on both sides of a  Encryption  VPN connection, no encryption will be applied.  Select from   B y Remote ID Only  ,    P reshared Key  ,  or   X .509    to specify the method the  Authentication  Peplink Balance will use to authenticate peers. When selecting   B y Remote ID Only  ,  be  sure to enter a unique peer ID number in the   R emote ID    field.    https://www.peplink.com  85  Copyright @ 2019 Peplink ...
  • Page 86   This optional field becomes available when   R emote ID /      P re­shared Key    is selected as the  Peplink Balance’s VPN   A uthentication    method, as explained above.   P re­shared Key  defines the pre­shared key used for this particular VPN connection. The VPN connection's  session key will be further protected by the pre­shared key. The connection will be up only if  Remote ID /  the pre­shared keys on each side match. When the peer is running firmware 5.0+, this  setting will be ignored.   Pre­shared Key    Enter Remote IDs either by typing out each Remote ID and Pre­shared Key, or by pasting a    CSV. If you wish to paste a CSV, click the    icon next to the “Remote ID / Preshared Key”  setting.  Remote  These optional fields become available when   X .509    is selected as the Peplink Balance’s  VPN authentication method, as explained above. To authenticate VPN connections using  ID/Remote  X.509 certificates, copy and paste certificate details into these fields. To get more  Certificate ...
  • Page 87 A   ­ Advanced feature, please click the   button on the top right­hand corner to activate.    To enable Layer 2 Bridging between PepVPN profiles, navigate to   N etwork>LAN>*LAN Profile Name*      8.41     WAN Connection Priority  If your device supports it, you can specify the priority of WAN connections to be used for  making VPN connections. WAN connections set to   O FF    will never be used. Only available  WAN  WAN connections with the highest priority will be used.   Connection    Priority  To enable asymmetric connections, connection mapping to remote WANs, cut­off latency,  and packet loss suspension time, click the   button.     Peplink Balance IPsec VPN functionality securely connects one or more branch offices to your  company's main headquarters or to other branches. Data, voice, and video communications between  these locations are kept safe and confidential across the public Internet.  IPsec VPN on the Peplink Balance is specially designed for multi­WAN environments. For instance, if a  user sets up multiple IPsec profiles for his multi­WAN environment and WAN1 is connected and healthy,  IPsec traffic will go through this link. However, should unforeseen problems (e.g.,unplugged cables or ISP  problems) cause WAN1 to go down, our IPsec implementation will make use of WAN2 and WAN3 for  failover.    https://www.peplink.com  87  Copyright @ 2019 Peplink   ...
  • Page 88: IpsecĀ Vpn

      Peplink also published a whitepaper about Speedfusion which can be downloaded from the following url:  http://download.peplink.com/resources/whitepaper­speedfusion­and­best­practices­2019.pdf    12.3.2 IPsec VPN  All Peplink products can make multiple IPsec VPN connections with Peplink routers, as well as Cisco and  Juniper routers.  Note that all LAN subnets and the subnets behind them must be unique. Otherwise, VPN members will  not be able to access each other.  All data can be routed over the VPN with a selection of encryption standards, such as 3DES, AES­128,  and AES­256.  To configure, navigate to   N etwork>Interfaces>IPsec VPN  .       A   N AT­Traversal   o ption and list of defined   I Psec VPN   p rofiles will be shown.    NAT­Traversal   s hould be enabled if your system is behind a NAT router.  Click the   N ew Profile    button to create new IPsec VPN profiles that make VPN connections to remote  Peplink Balance, Cisco, or Juniper Routers via available WAN connections. To edit any of the profiles,  click on its associated connection name in the leftmost column.   ...
  • Page 89       https://www.peplink.com  89  Copyright @ 2019 Peplink   ...
  • Page 90   Many­to­One NAT policy  :  if the defined NAT Network on the right hand side is an IP  address (or having a network prefix /32), for example, policy "192.168.1.0/24 >  172.168.50.1/32" will translate all clients in 192.168.1.0/24 network to 172.168.50.1. This  is a unidirectional mapping which means clients in remote site will not be able to initiate a  connection to the local clients.  Remote  Enter the LAN and subnets that are located at the remote site here.  Networks   To access your VPN, clients will need to authenticate by your choice of methods. Choose  Authentication  between the   P reshared Key    and   X .509 Certificate    methods of authentication.   Choose   M ain Mode    if both IPsec peers use static IP addresses. Choose   A ggressive  Mode  Mode    if one of the IPsec peers uses dynamic IP addresses.  Force UDP  For forced UDP encapsulation regardless of NAT­traversal, tick this checkbox.    https://www.peplink.com  90  Copyright @ 2019 Peplink   ...
  • Page 91 Perfect forward secrecy (PFS) ensures that if a key was compromised, the attacker will  be able to access only the data protected by that key.  None    ­ Do not request for PFS when initiating connection. However, since there is no  Phase 2 PFS  valid reason to refuse PFS, the system will allow the connection to use PFS if requested  Group  by the remote peer. This is the default value.  Group 2  :  1024­bit Diffie­Hellman group. The larger the group number, the higher the  security.   Group 5  :    1 536­bit    is the third option.  Phase 2 SA  This setting specifies the lifetime limit of this Phase 2 Security Association. By default, it is  Lifetime  set at   2 8800    seconds.    IPsec Status    shows the current connection status of each connection profile and is displayed at  Status>IPsec VPN  .     https://www.peplink.com  91  Copyright @ 2019 Peplink   ...
  • Page 92: OutboundĀ Policy

    12.4 Outbound Policy  Outbound policies for managing and load balancing outbound traffic are located at  Network>Outbound Policy  .  Click the   button beside the   O utbound Policy   b ox:        A selection menu will appear, giving you the choice between three different Outbound Policy Settings:  Outbound Policy Settings  High  Outbound traffic from a source LAN device is routed through the same WAN connection  Application  regardless of the destination Internet IP address and protocol. This option provides the  highest application compatibility.  Compatibility  Normal  Outbound traffic from a source LAN device to the same destination Internet IP address will  be routed through the same WAN connection persistently, regardless of protocol. This  Application  option provides high compatibility to most applications, and users still benefit from WAN link  Compatibility  load balancing when multiple Internet servers are accessed.  Outbound traffic behavior can be managed by defining rules in a custom rule table. A  Custom  default rule can be defined for connections that cannot be matched with any of the rules.    The menu underneath enables you to define Outbound policy rules:      https://www.peplink.com  92  Copyright @ 2019 Peplink   ...
  • Page 93 The bottom­most rule is   D efault  .  Edit this rule to change the device’s default manner of controlling  outbound traffic for all connections that do not match any of the rules above it. Under the   S ervice  heading, click   D efault   t o change these settings.   To rearrange the priority of outbound rules, drag and drop them into the desired sequence.      By default,   A uto    is selected as the   D efault Rule  .  You can select   C ustom    to change the algorithm to be  used. Please refer to the upcoming sections for the details on the available algorithms.   To create a custom rule, click    A dd Rule    at the bottom of the table.     https://www.peplink.com  93  Copyright @ 2019 Peplink   ...
  • Page 94     New Custom Rule Settings  Service Name  This setting specifies the name of the outbound traffic rule.  This setting specifies whether the outbound traffic rule takes effect. When   E nable    is  checked, the rule takes effect: traffic is matched and actions are taken by the Pepwave  router based on the other parameters of the rule. When   E nable    is unchecked, the rule does  Enable  not take effect: the Pepwave router disregards the other parameters of the rule.    Click the drop­down menu next to the checkbox to apply a time schedule to this custom  rule.  This setting specifies the source IP address, IP network, or MAC address for traffic that  Source  matches the rule.  This setting specifies the destination IP address, IP network, or domain name for traffic that  Destination  matches the rule.    https://www.peplink.com  94  Copyright @ 2019 Peplink   ...
  • Page 95 ● Persistence  ● Enforced  Algorithm  ● Priority  ● Overflow  ● Least Used  ● Lowest Latency  ● Fastest Response Time  For a full explanation of each Algorithm, please see the following article:   https://forum.peplink.com/t/exactly­how­do­peplinks­load­balancing­algorithmns­work/8059  Load Distribution  This is to define the outbound traffic weight ratio for each WAN connection.  Weight  This setting specifies whether to terminate existing IP sessions on a less preferred WAN  connection in the event that a more preferred WAN connection is recovered. This setting is  Terminate  applicable to the   W eighted, Persistence  ,  and   P riority    algorithms. By default, this setting is  Sessions on Link  disabled. In this case, existing IP sessions will not be terminated or affected when any other  WAN connection is recovered. When this setting is enabled, existing IP sessions may be  Recovery  terminated when another WAN connection is recovered, such that only the preferred  healthy WAN connection(s) is used at any point in time.  This field allows you to configure the default action when all the selected Connections are  When No ...
  • Page 96 C ustom Rules    table. This rule represents all  SpeedFusion  TM   routes learned from remote VPN peers. By  default, this bar is on the top of all custom rules. This position  means that traffic for remote VPN subnets will be routed to the  corresponding VPN peer. You can create custom   P riority    or  Enforced    rules and move them   above the bar to override the SpeedFusion  TM   routes.  Upon disabling Expert Mode, all rules above the bar will be  removed.        Algorithm: Weighted Balance  This setting specifies the ratio of WAN connection usage to be applied on the specified IP protocol and  port. This setting is applicable only when   A lgorithm    is set to   W eighted Balance  .     The amount of matching traffic that is distributed to a WAN connection is proportional to the weight of the    https://www.peplink.com  96  Copyright @ 2019 Peplink   ...
  • Page 97 Wi­Fi WAN: 10  ● Cellular 1: 10  ● Cellular 2: 10  ● USB:  10  Total weight is 60 = (10 +10 + 10 + 10 + 10 + 10).  Matching traffic distributed to Ethernet WAN1 is 16.7% = (10 / 60 x 100%.  Matching traffic distributed to Ethernet WAN2 is 16.7% = (10 / 60) x 100%.  Matching traffic distributed to Wi­Fi WAN is 16.7% = (10 / 60) x 100%.  Matching traffic distributed to Cellular 1 is 16.7% = (10 / 60) x 100%.  Matching traffic distributed to Cellular 2 is 16.7% = (10 / 60) x 100%.  Matching traffic distributed to USB is 16.7% = (10 / 60) x 100%.      Algorithm: Persistence  The configuration of persistent services is the solution to the few situations where link load distribution for  Internet services is undesirable. For example, for security reasons, many e­banking and other secure  websites terminate the session when the client computer’s Internet IP address changes mid­session.    In general, different Internet IP addresses represent different computers. The security concern is that an  IP address change during a session may be the result of an unauthorized intrusion attempt. Therefore, to  prevent damages from the potential intrusion, the session is terminated upon the detection of an IP  address change.  Pepwave routers can be configured to distribute data traffic across multiple WAN connections. Also, the  Internet IP depends on the WAN connections over which communication actually takes place. As a result,  a LAN client computer behind the Pepwave router may communicate using multiple Internet IP  addresses. For example, a LAN client computer behind a Pepwave router with three WAN connections  may communicate on the Internet using three different IP addresses.  With the persistence feature, rules can be configured to enable client computers to persistently utilize the  same WAN connections for e­banking and other secure websites. As a result, a client computer will  communicate using one IP address, eliminating the issues mentioned above.      https://www.peplink.com  97  Copyright @ 2019 Peplink   ...
  • Page 98 (persistently) to WAN connections with a weight. If you choose   A uto   i n   L oad Distribution  ,  the weights  will be automatically adjusted according to each WAN’s   D ownstream Bandwidth    which is specified in  the WAN settings page). If you choose   C ustom  ,  you can customize the weight of each WAN manually by  using the sliders.  Algorithm: Enforced  This setting specifies the WAN connection usage to be applied on the specified IP protocol and port. This  setting is applicable only when   A lgorithm    is set to   E nforced  .     Matching traffic will be routed through the specified WAN connection, regardless of the health check  status of the WAN connection. Outbound traffic can be also be enforced to go through a specified  SpeedFusion  TM   connection.  Algorithm: Priority  This setting specifies the priority of the WAN connections used to route the specified network service. The  highest priority WAN connection available will always be used for routing the specified type of traffic. A  lower priority WAN connection will be used only when all higher priority connections have become  unavailable.    https://www.peplink.com  98  Copyright @ 2019 Peplink   ...
  • Page 99       Starting from Firmware 5.2, outbound traffic can be prioritized to go through SpeedFusion  TM   connection(s).  By default, VPN connections are not included in the priority list.        Tip  Configure multiple distribution rules to accommodate different kinds of services.  Algorithm: Overflow  The traffic matching this rule will be routed through the healthy WAN connection that has the highest  priority and is not in full load. When this connection gets saturated, new sessions will be routed to the next  healthy WAN connection that is not in full load.    Drag and drop to specify the order of WAN connections to be used for routing traffic. Only the highest  priority healthy connection that is not in full load will be used.  Algorithm: Least Used    https://www.peplink.com  99  Copyright @ 2019 Peplink   ...
  • Page 100     The traffic matching this rule will be routed through the healthy WAN connection that is selected in  Connection   a nd has the most available download bandwidth. The available download bandwidth of a  WAN connection is calculated from the total download bandwidth specified on the WAN settings page and  the current download usage. The available bandwidth and WAN selection is determined every time an IP  session is made.  Algorithm: Lowest Latency    https://www.peplink.com  100  Copyright @ 2019 Peplink   ...
  • Page 101     The traffic matching this rule will be routed through the healthy WAN connection that is selected in  Connection    and has the lowest latency. Latency checking packets are issued periodically to a nearby  router of each WAN connection to determine its latency value. The latency of a WAN is the packet round  trip time of the WAN connection. Additional network usage may be incurred as a result.  Tip  The roundtrip time of a 6M down/640k uplink can be higher than that of a 2M down/2M up link because the overall  round trip time is lengthened by its slower upload bandwidth, despite its higher downlink speed. Therefore, this  algorithm is good for two scenarios:  ● All WAN connections are symmetric; or  ● A latency sensitive application must be routed through the lowest latency WAN, regardless of the WAN’s  available bandwidth.  Algorithm : Fastest Response Time    https://www.peplink.com  101  Copyright @ 2019 Peplink   ...
  • Page 102: InboundĀ Access

        The Fastest response Time algorithm works as follows:   When a network session is created, the first outgoing packet of that particular session is duplicated to all  the available WANs.  When the first response is received from a remote server, any further traffic for this session will be routed  over that particular WAN connection for the fastest possible response time.  If any slower responses are received on other connections afterwards, they will be discarded.    12.5 Inbound Access  Inbound access is also known as inbound port address translation. On a NAT WAN connection, all  inbound traffic to the server behind the Peplink unit requires inbound access rules.  By the custom definition of servers and services for inbound access, Internet users can access the  servers behind Peplink Balance. Advanced configurations allow inbound access to be distributed among  multiple servers on the LAN.  Important Note  Inbound access applies only to WAN connections that operate in NAT mode. For WAN connections that operate in  drop­in mode or IP forwarding, inbound traffic is forwarded to the LAN by default.   12.5.1 Servers  The settings to configure servers on the LAN are located at   N etwork>Inbound Access>Servers  .     https://www.peplink.com  102  Copyright @ 2019 Peplink   ...
  • Page 103: Services

    Enter a valid server name and its corresponding LAN IP address. Upon clicking   S ave   a fter entering                                 required information, the following screen appears.     To define additional servers, click   A dd Server   a nd repeat the above steps.    12.5.2 Services  Services are defined at   N etwork>Inbound Access>Services  .     Tip  At least one server must be defined before services can be added.    https://www.peplink.com  103  Copyright @ 2019 Peplink   ...
  • Page 104   Services Settings  This setting specifies whether the inbound service rule takes effect.  When   Y es    is selected, the inbound service rule takes effect. If the inbound traffic matches the  specified IP protocol and port, action will be taken by the Peplink Balance based on the other  Enable  parameters of the rule.  When   N o    is selected, the inbound service rule does not take effect. The Peplink Balance will  disregard the other parameters of the rule.  This setting identifies the service to the system administrator. Only alphanumeric and the  Service Name  underscore “_” characters are valid.  The   I P Protocol    setting, along with the   P ort    setting, specifies the protocol of the service as  TCP, UDP, ICMP, or IP. Inbound traffic that matches the specified   I P Protocol    and   P ort  ( s) will  be forwarded to the LAN hosts specified by the   S ervers    setting.   ...
  • Page 105     Any Port  :  all traffic that is received by the Peplink Balance via the specified protocol is  forwarded to the servers specified by the   S ervers    setting.    For example, if I  P  Protocol    is set to   T CP    and   P ort    is set to   A ny Port  ,  then all TCP traffic will  be forwarded to the configured servers.    Single Port  :  traffic that is received by the Peplink Balance via the specified protocol at the  specified port is forwarded via the same port to the servers specified by the   S ervers    setting.    For example, if I  P  Protocol    is set to   T CP  ,    P ort    is set to   S ingle Port,    and   S ervice Port   i s set ...
  • Page 106: DnsĀ Settings

        UPnP / NAT­PMP Settings  UPnP and NAT­PMP are network protocols which allow a computer connected to the LAN port to  automatically configure the router to allow parties on the WAN port to connect to itself.  That way, the  process of inbound port forwarding becomes automated.   When a computer creates a rule using these protocols, the specified TCP/UDP port of all WAN  connections' default IP address will be forwarded.  Check the corresponding box(es) to enable UPnP and/or NAT­PMP.  Enable these features only if you  trust the computers connected to the LAN ports.    When the options are enabled, a table listing all the forwarded ports under these two protocols can be  found at   N etwork>Services>UPnP / NAT­PMP  .     12.5.3 DNS Settings  The built­in DNS server functionality of the Peplink Balance facilitates inbound load balancing. With this  functionality, NS/SOA DNS records for a domain name can be delegated to the Internet IP address(es) of  the Peplink Balance. Upon receiving a DNS query, the Peplink Balance can return (as an “A” record) the  IP address for the domain name on the most appropriate healthy WAN connection. It can also act as a  generic DNS server for hosting “A”, “CNAME”, “MX”, “TXT” and “NS” records.    The settings for defining the DNS records to be hosted by the Peplink Balance are located at  Network>Inbound Access>DNS Settings  .       https://www.peplink.com  106  Copyright @ 2019 Peplink   ...
  • Page 107        DNS Settings  DNS Servers  This setting specifies the WAN IP addresses on which the DNS server of the Peplink  Balance should listen.  If no addresses are selected, the inbound link load balancing feature will be disabled and  the Peplink Balance will not respond to DNS requests.  To specify and/or modify the IP addresses on which the DNS server should listen, click the  button that corresponds to   D NS Server  ,  and a selection screen will be displayed:  To specify the Internet IP addresses on which the DNS server should listen, select the  desired WAN connection then select the desired associated IP addresses. (Multiple items in  the list can be selected by holding CTRL and clicking on the items.)  Click   S ave   t o save the settings when configuration is complete.  Zone Transfer  This setting specifies the IP address(es) of the secondary DNS server(s)authorized to  retrieve zone records from the DNS server of the Peplink Balance.  The zone transfer server of the Peplink Balance listens on TCP port 53.   The Peplink Balance serves both the clients that are accessing from the specified IP  addresses, and the clients that are accessing its LAN interface.  Routing Control by  When this function is enabled, the system will check to see if an incoming DNS client is  within any WAN's ISP subnet. Only the matched WAN(s)'s IP addresses will be returned.  Subnet Database  Note that this feature is available only when a subnet database has been defined.    https://www.peplink.com  107  Copyright @ 2019 Peplink   ...
  • Page 108 D efault  .  Please refer to   S ection 17.3.9    for details.  Priority  The WAN connection(s) with the highest priority (smallest number) will be chosen. Those  with lower priorities will not be chosen in resolving A records unless the higher priority ones  become unavailable.  To specify the primary and backup connections, click the       b utton that corresponds to  Default Connection Priority  .  A selection screen screen will appear.  Each WAN connection is associated with a priority number. Click    Save    to save the settings  when configuration is complete.  Domain name  This section shows a list of domain names to be hosted by the Peplink Balance. Each  domain can have its “NS”, “MX” and “TXT” records, and its sub­domains’ “A” and “CNAME”  records. Add a new record by clicking the   N ew Domain Name    button. Click on a domain  name to edit. Press the red X to remove a domain name.     New Domain Name  Upon clicking the New Domain Name button, and the following screen will appear:    https://www.peplink.com  108 ...
  • Page 109       This page is for defining the domain’s SOA, NS, MX, CNAME, A, TXT, and SRV  records. Seven tables are presented in this page for defining the five types of records.    SOA Records    https://www.peplink.com  109  Copyright @ 2019 Peplink   ...
  • Page 110 In the SOA record, you have to fill out the fields   N ame Server  ,    N ame Server IP Address  ,    E mail  ,   Refresh  ,    R etry  ,    E xpire  ,    M in Time  ,  and   T TL  .   Default values are set for SOA and NS records,    ● Name Server IP Address:      T his is the IP address of the authoritative name server. An entry in    https://www.peplink.com  110  Copyright @ 2019 Peplink   ...
  • Page 111 To add a new NS record, click the   N ew NS Records   b utton in the   N S Records    box. Then the table will  expand to look like the following:    When creating an NS record for the domain itself (not a sub­domain), the   H ost    field should be left blank.  Enter a name server host name and its IP address into the corresponding boxes. The host name can be a  non­FQDN (fully qualified domain name). Please be sure that a corresponding A record is created. Click  the      button on the right to finish and to add other name servers. Click the   S ave    button to save your  changes.  MX Records  The   M X Record    table shows the domain’s MX records. To add a new MX record, click the   N ew MX  Records   b utton in the   M X Records    box. Then the table will expand to look like the following:    https://www.peplink.com  111  Copyright @ 2019 Peplink   ...
  • Page 112 New CNAME Records   b utton in the   C NAME Record    box. Then the table will expand to look like the  following:    When creating a CNAME record for the domain itself (not a sub­domain), the   H ost    field should be left  blank.  The wildcard character “*”is supported in the   H ost    field. The reference of ".  d omain.name  "  will be returned  for every name ending with ".  d omain.name  "  except names that have their own records.  The   T TL    field tells the time to live of the record in external DNS caches.    A Records  This table shows the A records of the domain name. To add an A record, click the   N ew A Record    button.    https://www.peplink.com  112  Copyright @ 2019 Peplink   ...
  • Page 113   The following screen will appear:        A record may be automatically added for the SOA records with a name server IP address provided.  A Record  This field specifies the A record of this sub­domain to be served by the Peplink Balance.  The wildcard character “*” is supported. The IP addresses of “  * .domain.name"    will be  Host Name  returned for every name ending with   " .domain.name"    except names that have their own  records.  This setting specifies the time to live of this record in external DNS caches.  TTL  In order to reflect any dynamic changes on the IP addresses in case of link failure and  recovery, this value should be set to a smaller value, e.g., 5 secs, 60 secs, etc.  This option specifies the priority of different connections.  Select the   D efault    option to apply the    Default Connection Priority   ( refer to the table  Priority  shown on the main DNS settings page) to an A record. To customize priorities, choose  the   C ustom    option and a priority selection table will be shown at the bottom.  ...
  • Page 114 PTR Records  PTR records are created along with A records pointing to custom IPs. For example, if you created an A  record   w ww.mydomain.com    pointing to   1 1.22.33.44  ,  then a PTR record   4 4.33.22.11.in­addr.arpa    pointing  to   w ww.mydomain.com    will also be created. When there are multiple host names pointing to the same IP  address, only one PTR record for the IP address will be created. In order for PTR records to function, you  also need to create NS records. For example, if the IP address range   1 1.22.33.0    to   1 1.22.33.255   i s  delegated to the DNS server on the Peplink Balance, you will also have to create a domain  33.22.11.in­addr.arpa    and have its NS records pointing to your DNS server’s (the Peplink Balance’s)  public IP addresses. With the above records created, the PTR record creation is complete.    TXT Records  This table shows the TXT record of the domain name.    https://www.peplink.com ...
  • Page 115 Save    button to finish.  When creating a TXT record for the domain itself (not a sub­domain), the   H ost    field should be left blank.  The maximum size of the TXT Value is 255 bytes.  After editing the five types of records, you can leave the page by simply going to another section of the  web admin interface.    SRV Records  To add a new SRV record, click the   N ew SRV Record   b utton in the   S RV Records    box.     ● Service:   T he symbolic name of the desired service.   ● Priority  :  Indicates the priority of the target; the smaller the value, the higher the priority.  ● Weight  :  A relative weight for records with the same priority.    https://www.peplink.com  115  Copyright @ 2019 Peplink   ...
  • Page 116 .   To enable DNS clients to perform a reverse lookup for a host, perform two steps:  ● Create a reverse lookup zone that corresponds to the subnet network address of  the host.   In the reverse lookup zone, add a pointer (PTR) resource record that maps the  host IP address to the host name.  ● Click the   N ew Reverse Lookup Zone    button and enter a reverse lookup zone  name. If you are delegated the subnet   1 1.22.33.0/24  ,  the   Z one Name    should be  33.22.11.in­arpa.add  r . PTR records for   1 1.22.33.1, 11.22.33.2, ... 11.22.33.254  should be defined in this zone where the host IP numbers are   1 , 2, ... 254  ,   respectively.      https://www.peplink.com  116  Copyright @ 2019 Peplink   ...
  • Page 117     SOA Record  You can click the link   C lick here to define SOA record    to create or click on the   N ame Server    field to edit  the SOA record.    https://www.peplink.com  117  Copyright @ 2019 Peplink   ...
  • Page 118 Name Server:    Enter the NS record's FQDN server name here.   For example:  "ns1.mydomain.com" (equivalent to "www.1stdomain.com.")  "ns2.mydomain.com."  Email, Refresh, Retry, Expire, Min Time, and TTL   a re entered in the same way as in the forward zone.  Please refer to   S ection 17.3.5    for details.  NS Records      The NS record of the name server defined in the SOA record is automatically added here. To create a  new NS record, click the   N ew NS Records    button.    When creating an NS record for the   r everse lookup zone    itself (not a sub­domain or dedicated zone), the  Host    field should be left blank.   N ame Server    must be a FQDN.    https://www.peplink.com  118  Copyright @ 2019 Peplink   ...
  • Page 119   CNAME Records    To create a new CNAME record, click the   N ew CNAME Record    button.  CNAME records are typically used for defining classless reverse lookup zones. Subnetted reverse lookup  zones are further described in   R FC 2317  ,  "Classless IN­ADDR.ARPA delegation."              https://www.peplink.com  119  Copyright @ 2019 Peplink   ...
  • Page 120 IP address   1 1.22.33.44  ,  where the reverse lookup zone is   3 3.22.11.in­arpa.addr  ,  the   H ost IP Number  should be   4 4  .   The   P oints To    field defines the host name which the PTR record should be pointed to. It must be a  FQDN.    DNS Record Import Wizard  At the bottom of the DNS settings page, the link   I mport records via zone transfer…  i s used to import  DNS record using an import wizard.     ● Select   N ext >>    to continue.    https://www.peplink.com  120  Copyright @ 2019 Peplink   ...
  • Page 121 In the blank space, enter the   D omain Names (Zones) which you would like to assign the IP                                   address entered in the previous step. Enter one domain name per line.  ● Select   N ext >>   t o continue.  Important Note  If you have entered domain(s) which already exist in your settings, a warning message will appear. Select   N ext >>  to overwrite the existing record or   < < Back   t o go back to the previous step.    https://www.peplink.com  121  Copyright @ 2019 Peplink   ...
  • Page 122                 https://www.peplink.com  122  Copyright @ 2019 Peplink   ...
  • Page 123                                     After the zone records process have been fetched, the fetch results would be shown as above. You can  view import details by clicking the corresponding hyperlink on the right­hand side.      https://www.peplink.com  123  Copyright @ 2019 Peplink   ...
  • Page 124: NatĀ Mappings

      12.6 NAT Mappings  The Peplink Balance allows the IP address mapping of all inbound and outbound NATed traffic to and  from an internal client IP address.  NAT mappings can be configured at   N etwork>NAT Mappings  .     To add a rule for NAT mappings, click   A dd NAT Rule   a nd the following screen will be displayed:              https://www.peplink.com  124  Copyright @ 2019 Peplink   ...
  • Page 125   IP Address    is selected in the   L AN Client(s)    field.  Inbound    Mappings   Note 1: Inbound mapping is not needed for WAN connections in drop­in mode or IP  forwarding mode.    Note 2: Each WAN IP address can be associated to one NAT mapping only.  This setting specifies the WAN IP addresses should be used when an IP connection is  made from a LAN host to the Internet.    Each LAN host in an IP range or IP network will be evenly mapped to one of each  selected WAN's IP addresses (for better IP address utilization) in a persistent manner (for  Outbound  better application compatibility).   Mappings     Note 1: If you do not want to use a specific WAN for outgoing accesses, you should still  choose default here, then customize the outbound access rule in the   O utbound Policy  section.    Note 2: WAN connections in drop­in mode or IP forwarding mode are not shown here.  Click   S ave    to save the settings when configuration has been completed.    Important Note  Inbound firewall rules override inbound mapping settings.      https://www.peplink.com  125  Copyright @ 2019 Peplink   ...
  • Page 126: Mediafast

    MediaFast settings can be configured by navigating to   N etwork > MediaFast  .   Setting Up MediaFast Content Caching    To access MediaFast content caching settings, select   N etwork > MediaFast  .     MediaFast  Enable  Click the checkbox to enable MediaFast content caching.  Choose to   C ache on all domains  ,  or enter domain names and then choose either  Domains / IP  Whitelist    (cache the specified domains only) or   B lacklist    (do not cache the specified  Addresses  domains).  Source IP  This setting allows caching to be enabled on custom subnets only.  Subnet   If "Any" is selected, then caching will apply to all subnets.      https://www.peplink.com  126  Copyright @ 2019 Peplink   ...
  • Page 127                                   necessary certificates installed*.    *See   ttps://forum.peplink.com/t/certificate­installation­for­mediafast­https­caching/        Cache Control  Check these boxes to cache the listed content types or leave boxes unchecked to disable  Content Type  caching for the listed types.  Enter a file extension, such as JPG or DOC. Then enter a lifetime in days to specify how  Cache Lifetime  long files with that extension will be cached. Add or delete entries using the controls on the  Settings  right.          https://www.peplink.com  127  Copyright @ 2019 Peplink ...
  • Page 128: ViewingĀ MediafastĀ Statistics

                        Viewing MediaFast Statistics  To get details on storage and bandwidth usage, select      S tatus>MediaFast  .     https://www.peplink.com  128  Copyright @ 2019 Peplink   ...
  • Page 129: PrefetchĀ Schedule

            Prefetch Schedule  Content prefetching allows you to download content on a schedule that you define, which can help to  preserve network bandwidth during busy times and keep costs down. To access MediaFast content    https://www.peplink.com  129  Copyright @ 2019 Peplink   ...
  • Page 130 Status  Check the status of your scheduled download here.  Next Run  These fields display the date and time of the next and most recent occurrences of the  Time/Last Run  scheduled download.  Time  Check this field to ensure that the most recent download took as long as expected to  complete. A value that is too low might indicate an incomplete download or incorrectly  Last Duration  specified download target, while a value that is too long could mean a download with an  incorrectly specified target or stop time.  Result      This field indicates whether downloads are in progress ( )  or complete (   ).  Check this field to ensure that the most recent download file size is within the expected  range. A value that is too low might indicate an incomplete download or incorrectly specified  Last Download  download target, while a value that is too long could mean a download with an incorrectly  specified target or stop time. This field is also useful for quickly seeing which downloads are  consuming the most storage space.  To begin a scheduled download immediately, click    To cancel a scheduled download, click    Actions  To edit a scheduled download, click    To delete a scheduled download, click      https://www.peplink.com  130  Copyright @ 2019 Peplink   ...
  • Page 131: Contenthub

      New Schedule    Simply provide the requested information to create your schedule.  Clear Web  Click to clear all cached content. Note that this action cannot be undone.  Cache  Clear Statistics  Click to clear all prefetch and status page statistics.      12.8 ContentHub  Integrated into MediaFast­enabled routers, ContentHub allows you to deliver webpages and applications  using the local storage on your router.   Users will be able to access news, articles, videos, and access your web app, without the need for  internet access.    ContentHub Storage needs to be configured before content can be uploaded to the ContentHub.  Follow the link on the information panel to configure storage.    To access ContentHub, navigate to   N etwork > ContentHub   a nd      c heck the   E nable    box.:      https://www.peplink.com  131  Copyright @ 2019 Peplink   ...
  • Page 132       On an external server configure content (a website or application) that will be synced to the ContentHub;  for example a html5 website.    To configure a website or application as content follow these steps.    Configure a website to be published from the contenthub   This option allows you to sync a website to the Peplink router, this website will then be published with the  specified domain from the router itself and makes the content available to  the client via the HTTP/HTTPS  protocol.   Only FTP sync is supported for this type of Contenthub content.   The content should be uploaded to an FTP server before.     Click   N ew Website  ,  and the following configuration options will appear:      https://www.peplink.com  132  Copyright @ 2019 Peplink   ...
  • Page 133       The Active checkbox toggles the activation of the content.  For type, select Website.          Type  HTTP,HTTPS or both  Domain/Path  The contenhub uses this as the domain name for client access (such as http://mytest.com).  Enter the  server details that the content will be downloaded from. Enter your credentials  Source  under   U sername    and   P assword  .   Period  This field determines how often the Router will search for updates to the source content.   Method  Only applicable for application: Choose between sync or file upload  Bandwidth  Used to limit the bandwidth for each client to access the web server.  Limit        https://www.peplink.com  133  Copyright @ 2019 Peplink   ...
  • Page 134: ConfigureĀ AnĀ ApplicationĀ ToĀ BeĀ PublishedĀ FromĀ TheĀ Contenthub 1

      Click “Save & Apply Now” to activate the changes. Below is a screenshot after configuration:   The content will be sync based on the   P eriod   t hat  is configured before.   If you want to trigger the sync manually, you can click “ ”.   The “Status” column shows the sync progress.  When the sync complete, there is a summary as shown in the screenshot below:   To access the content, open a browser in MFA’s client and enter the domain configured before (such as  http://mytest.com  ) .   Configure an application to be published from the contenthub   Mediafast  Routers allow you to configure and publish ant application from the router itself  by using the  supported framework   ● Python (version 2.7.12)  ● Ruby (version 2.3.3)   ● Node.js (version 6.9.2)    First install the desired framework in “Package Manager” as below:    https://www.peplink.com  134  Copyright @ 2019 Peplink   ...
  • Page 135                         After installing the framework, you can select the type to “Application” and configure the website:    https://www.peplink.com  135  Copyright @ 2019 Peplink   ...
  • Page 136: MdmĀ Settings

    MDM Settings  In addition to performing content caching, MediaFast­enabled routers can also serve as an MDM,                             administrating to client devices. To access MDM Settings, navigate to   N etwork > MDM Settings  :       https://www.peplink.com  136  Copyright @ 2019 Peplink   ...
  • Page 137       MDM Settings  Enable  Click this checkbox to enable MDM on your router.  Click   F ollow Web Admin Account    to allow client devices to use the built­in administrator  Account  account when performing MDM. Set   C ustom    to specify a username and password your  Settings  router will use to log into your client devices.    Please refer to the knowledgebase for information about enrolling client devices to MDM:  https://forum.peplink.com/t/how­to­enroll­a­device­to­the­mdm­server/8454  Docker  MediaFast enabled routers can host Docker containers when running firmware 7.1 or later.  Docker is an open platform for developing, shipping, and running applications.  From firmware version 7.1.0 upwards it is possible to install and run Docker Containers on your Peplink  Mediafast 500 or 750 router.    Due to the nature of Docker and its unlimited variables; this feature is supported by Peplink up to the point  of creating a running Docker Container.  Information about Docker can be found on the Docker Documentation site: https://docs.docker.com/ 2    This will allow you to run for example a file sharing platform (Owncloud), a web server (Wordpress,  Joomla) , a learning platform (Moodle) or a visualisation tool for viewing large scale data (Kibana).  The Peplink router will search through the Docker Hub repository when creating a new Docker Container.  https://hub.docker.com/explore/ 7    For detailed configuration instructions please refer to our knowledge base:  https://forum.peplink.com/t/how­to­run­a­docker­application­on­a­peplink­mediafast­rout er/16021 ...
  • Page 138: CaptiveĀ Portal

      12.9 Captive Portal    The captive portal serves as a gateway that clients have to pass if they wish to access the Internet using      N etwork>Captive Portal  . your router. To configure, navigate to        Captive Portal Settings    https://www.peplink.com  138  Copyright @ 2019 Peplink   ...
  • Page 139 To customize the portal’s form submission and redirection URL, enter a new URL in  Hostname  this field. To reset the URL to factory settings, click   D efault  .   Click   O pen Access    to allow clients to freely access your router. Click   U ser  Authentication    to force your clients to authenticate before accessing your router.  Select   E xternal Server   t o use the Captive Portal with a HotSpot system  .   Access Mode   As described in the following knowledgebase artic  l   e :  https://forum.peplink.com/t/using­hotspotsystem­wi­fi­on­pepwave­max­route rs/  This authenticates your clients through a RADIUS server. After selecting this  option, you will see the following fields:    RADIUS Server      ...
  • Page 140   To whitelist a network, enter the domain name / IP address here and click  .  Allowed  Networks  To delete an existing network from the list of allowed networks, click the    button next to the listing.  To whitelist a client, enter the MAC address / IP address here and click   . To  Allowed Clients  delete an existing client from the list of allowed clients, click the   button next  to the listing.  Here, you can choose between using the Balance’s built­in captive portal and  Splash Page   redirecting clients to a URL you define.  Configurable options for popup handling:   Popup Handling  ­ Bypass Popup (Redirection only takes place on normal browser)      ­  Automatically show splash page on Safari for Apple (iOS / macOS) devices  A hostname that can be used to logout captive portal when being accessed on  Logout Hostnam browser.  Click on the provided link in the Captive portal profile to customize the splash page.  Customize  A new browser tab is opened with a WYSIWYG editor of the splash page  splash page  o edit the content, click on the corresponding element after switching Edit Mode to  ON.    https://www.peplink.com  140  Copyright @ 2019 Peplink   ...
  • Page 141: Qos

          12.10 QoS  12.10.1 User Groups  LAN and PPTP clients can be categorized into three user groups ­   M anager, Staff, and Guest  .  This  menu allows you to define rules and assign client IP addresses or subnets to a user group. You can apply  different bandwidth and traffic prioritization policies on each user group in the   B andwidth  Control    and   A pplication   s ections.  The table is automatically sorted, and the table order signifies the rules' precedence. The smaller and  more specific subnets are put towards the top of the table and have higher precedence; larger and less  specific subnets are placed towards the bottom.  Click the   A dd    button to define clients and their user group. Click the   button to remove the defined  rule.    https://www.peplink.com  141  Copyright @ 2019 Peplink   ...
  • Page 142: BandwidthĀ Control

        that particular group. Please refer to the following two sections for details.    12.10.2 Bandwidth Control  This section is to define how much minimum bandwidth will be reserved to each user group when a WAN  connection is   i n full load  .  When this feature is enabled, a slider with two indicators will be shown. You  can move the indicators to adjust each group's weighting. The lower part of the table shows the  corresponding reserved download and uploads bandwidth value of each connection.  By default,   5 0%    of bandwidth has been reserved for Manager,   3 0%    for Staff, and   2 0%    for Guest.    You can define a maximum download speed (over all WAN connections) and upload speed (for each  WAN connection) that each individual Staff and Guest member can consume. No limit can be imposed on  individual Managers. By default, download and upload bandwidth limits are set to unlimited (set as   0 )  .     https://www.peplink.com  142  Copyright @ 2019 Peplink   ...
  • Page 143: Application

    ,  and  ↓ Low  .  The Peplink  Balance can detect various application traffic types by inspecting the packet content. Select an application  by choosing a supported application, or by defining a custom application manually. The priority preference  of supported applications is placed at the top of the table. Custom applications are at the bottom.        Prioritization for Custom Application  Click the   A dd    button to define a custom application. Click the button   in the   A ction    column to  delete the custom application in the corresponding row.  When   S upported Applications    is selected, the Peplink Balance will inspect network traffic and prioritize  the selected applications. Alternatively, you can select   C ustom Applications   a nd define the application  by providing the protocol, scope, port number, and DSCP value.    https://www.peplink.com  143  Copyright @ 2019 Peplink   ...
  • Page 144     Category   a nd   A pplication   a vailability will be different across different Peplink Balance models.        https://www.peplink.com  144  Copyright @ 2019 Peplink   ...
  • Page 145: Dsl/CableĀ Optimization

    DSL/cable­based WAN connections have lower upload bandwidth and higher download bandwidth.   When a DSL/cable circuit's uplink is congested, the download bandwidth will be affected. Users will not be  able to download data at full speed until the uplink becomes less congested.   D SL/Cable  Optimization    can relieve such an issue. When it is enabled, the download speed will become less  affected by the upload traffic. By default, this feature is enabled.        12.11 Firewall  A firewall is a mechanism that selectively filters data traffic between the WAN side (the Internet) and the  LAN side of the network. It can protect the local network from potential hacker attacks, access to  offensive websites, and/or other inappropriate uses.  The firewall functionality of Peplink Balance supports the selective filtering of data traffic in both  directions:  Outbound (LAN to WAN)  Inbound (WAN to LAN)  The firewall also supports the following functionality:  ● Intrusion detection and DoS prevention  ● Web blocking  With SpeedFusion      enabled, the firewall rules also apply to VPN tunneled traffic. The Firewall function  ...
  • Page 146     The inbound firewall settings are located at   N etwork>Firewall>Access Rules  .     Click   A dd Rule   t o display the following window:      Inbound / Outbound Firewall Settings  Rule Name  This setting specifies a name for the firewall rule.    https://www.peplink.com  146  Copyright @ 2019 Peplink   ...
  • Page 147   This setting specifies whether the firewall rule should take effect.  If the box is checked, the firewall rule takes effect. If the traffic matches the specified  protocol/IP/port, actions will be taken by Peplink Balance based on the other parameters of  the rule.  Enable  If the box is not checked, the firewall rule does not take effect. The Peplink Balance will  disregard the other parameters of the rule.    Click the dropdown menu next to the checkbox to place this firewall rule on a time  schedule.  WAN  Connection  Select the WAN connection that this firewall rule should apply to.  (Inbound)  This setting specifies the protocol to be matched.  Via a drop­down menu, the following protocols can be specified:  ● TCP  ● UDP  ● ICMP  Protocol  ● IP   Alternatively, the   P rotocol Selection Tool    drop­down menu can be used to automatically  fill in the protocol and port number of common Internet services (e.g., HTTP, HTTPS, etc.)    After selecting an item from the   P rotocol Selection Tool   d rop­down menu, the protocol  and port number remains manually modifiable.  This specifies the source IP address(es) and port number(s) to be matched for the firewall ...
  • Page 148 SRC:     Source IP address  ● DST:     Destination IP address  ● LEN:     Packet length  ● PROTO:     Protocol  ● SPT:     Source port  ● DPT:     Destination port  Click   S ave   t o store your changes. To create an additional firewall rule, click   A dd Rule    and repeat the  above steps.        https://www.peplink.com  148  Copyright @ 2019 Peplink   ...
  • Page 149: IntrusionĀ DetectionĀ AndĀ DosĀ Prevention

    D eny  ,   a corresponding Allow firewall rule will be required.    Intrusion Detection and DoS Prevention    The Balance can detect and prevent intrusions and denial­of­service (DoS) attacks from the Internet. To  turn on this feature, click  , check the   E nable   c heck box for the   I ntrusion Detection and DoS  Prevention  ,       a nd press the   S ave   b utton.  When this feature is enabled, the Balance will detect and prevent the following kinds of intrusions and  denial­of­service attacks.  ● Port scan  NMAP FIN/URG/PSH  Xmas tree  Another Xmas tree    https://www.peplink.com  149  Copyright @ 2019 Peplink   ...
  • Page 150: ContentĀ Blocking

      Null scan  SYN/RST  SYN/FIN  ● SYN flood prevention  ● Ping flood attack prevention    12.11.2  Content Blocking        https://www.peplink.com  150  Copyright @ 2019 Peplink   ...
  • Page 151: ApplicationĀ Blocking

    If "foobar.com" is entered, any web site with a host name ending in foobar.com will be blocked, e.g.  www.foobar.com, foobar.com, etc. However, "myfoobar.com" will not be blocked.    You may enter the wild card ".*" at the end of a domain name to block any web site with a host name  having the domain name in the middle. If you enter "foobar.*", then "www.foobar.com",  "www.foobar.co.jp", or "foobar.co.uk" will be blocked. Placing the wild card in any other position is not  supported.    The device will inspect and look for blocked domain names on all HTTP traffic. Secure web (HTTPS)  traffic is not supported.    Customized Domains  Enter an appropriate website address, and the Peplink Balance will block and disallow  TM  LAN/PPTP/SpeedFusion   peer clients to access these websites. Exceptions can be added using the  instructions in   S ections      2 1.2.1.4    and   2 1.2.1.5.  You may enter the wild card ".*" at the end of a domain name to block any web site with a host name  having the domain name in the middle. For example, If you enter "foobar.*," then "www.foobar.com,"  "www.foobar.co.jp," or "foobar.co.uk" will be blocked. Placing the wild card in any other position is not  supported.  The Peplink Balance will inspect and look for blocked domain names on all HTTP traffic. Secure web  (HTTPS) traffic is not supported.  Exempted User Groups  Check and select pre­defined user group(s) who can be exempted from the access blocking rules. User  ...
  • Page 152: UrlĀ Logging

      URL Logging  Click   e nable  ,  and the enter the ip address and port (if applicable) where your remote syslog server is  located.    12.12 OSPF & RIPv2  The Peplink Balance supports OSPF and RIPv2 dynamic routing protocols. Click the   N etwork tab from                        ...
  • Page 153               OSPF Settings  Determine the name of your   A rea ID    to apply to this group. Machines linked to this group  Area ID  will send and receive related OSPF packets, while unlinked machines will ignore it.  Link Type  Choose the network type that this area will use.   Choose an authentication method, if one is used, from this drop­down menu. Available  Authentication  options are   M D5    and   T ext  .  Enter the authentication key next to the drop­down menu.  Interfaces  Determine which interfaces this area will use to listen to and deliver OSPF packets              https://www.peplink.com  153  Copyright @ 2019 Peplink   ...
  • Page 154 .    RIPv2 Settings  Choose an authentication method, if one is used, from this drop­down menu. Available  Authentication  options are   M D5    and   T ext  .  Enter the authentication key next to the drop­down menu.  Interfaces  Determine which interfaces this group will use to listen to and deliver RIPv2 packets.    OSPF & RIPv2 Route Advertisement  PepVPN Route  Isolate PepVPN peers from each other. Received PepVPN routes will not be    Isolation forwarded to other PepVPN peers to reduce bandwidth consumption.  .   Network  Networks to be advertised over OSPF & RIPv2. If no network is selected, all LAN /    Advertising VLAN networks will be advertised by default.   Static Route  Enable this option to advertise LAN static routes over OSPF & RIPv2. Static routes  Advertising  that match the Excluded Networks table will not be advertised.    https://www.peplink.com  154  Copyright @ 2019 Peplink   ...
  • Page 155: Bgp

        12.13 BGP  Click the Network tab from the top bar, and then click the   B GP    item on the sidebar to configure BGP.    Click "x" to delete a BGP profile  Click "Add" to add a new BGP profile    BGP    Name  This field is for specifying a name to represent this profile.   When this box is checked, this BGP profile will be enabled.     Enable Otherwise, it will be disabled.   Interface  The interface where BGP neighbor is located  Autonomous  The Autonomous System Number (ASN) of this profile  System  Neighbor  BGP Neighbor's details   IP address  Neighbor's IP address   Autonomous  Neighbor's ASN  System    https://www.peplink.com  155  Copyright @ 2019 Peplink   ...
  • Page 156 Password  Optional password for MD5 authentication of BGP sessions.  AS path to be prepended to the routes received from this neighbor.   AS­Path  The value must be a comma separated ASN.   Prepending:  For example "64530,64531" will prepend "64530, 64531" to received routes.  Time in seconds to wait for a keepalive message from the neighbor before  considering the BGP connection is staled.   Hold Time  This value must be either 0 (infinite hold time) or between 3 and 65535 inclusively.       Network  Networks to be advertised to BGP neighbor.  Advertising  Static Route  Enable this option to advertise LAN static routes. Static routes that match the  Advertising  Excluded Networks table will not be advertised.  Advertise OSPF  When this box is checked, all learnt OSPF routes will be advertised.  Route      This option selects the route import filter mode.  Filter Mode  None  :  all BGP routes will be accepted.  Accept  :  Routes in "Restricted Networks" will be accepted, routes not in the list will    https://www.peplink.com  156  Copyright @ 2019 Peplink   ...
  • Page 157: RemoteĀ UserĀ Access

                                Peplink router can be remotely accessed via OpenVPN, L2TP with IPsec or PPTP. To configure this                    ...
  • Page 158: Openvpn 1

    14.1.1  PPTP    No additional configuration required.  The Point­to­Point Tunneling Protocol (PPTP) is an obsolete method for implementing virtual private                           networks. PPTP has many well known security issues  Continue to configure authentication method.  14.1.2 Authentication Methods      https://www.peplink.com  158  Copyright @ 2019 Peplink   ...
  • Page 159     Authentication Method  Connect to  Select the VLAN network for remote users to enable remote user access on.  Network  Authentication  Determine the method of authenticating remote users    User accounts:  This setting allows you to define the Remote User Accounts.   Click Add to input username and password to create an account. After adding the user accounts, you can  click on a username to edit the account password.     Note:  The username must contain lowercase letters, numerics, underscore(_), dash(­), at sign(@), and period(.)  only.  The password must be between 8 and 12 characters long.  LDAP Server:    Enter the matching LDAP server details to allow for LDAP server authentication.    Radius Server:    Enter the matching Radius  server details to allow for Radius server authentication.    https://www.peplink.com  159  Copyright @ 2019 Peplink   ...
  • Page 160: Misc.Ā Settings

        Active Directory:      Enter the matching Active Directory details to allow for Active Directory server authentication.   14.2 Misc. Settings  14.2.1 High Availability  The Peplink Balance supports high availability (HA) configurations via an open standard virtual router  redundancy protocol (VRRP, RFC 3768).  In an HA configuration, two same­model Peplink Balance units provide redundancy and failover in a  master­slave arrangement. In the event that the master unit is down, the slave unit becomes active.  High availability will be disabled automatically where there is a drop­in connection configured on a LAN  bypass port.  The following diagram illustrates an HA configuration with two Peplink Balance units and two Internet  connections:    In the diagram, the WAN ports of each Peplink Balance unit connect to the router and to the modem. Both  Peplink Balance units connect to the same LAN switch via a LAN port.    https://www.peplink.com  160  Copyright @ 2019 Peplink   ...
  • Page 161 At a subsequent point when the master Peplink Balance unit recovers, it will once again become  active.  You can configure high availability at   N etwork>Misc. Settings>High Availability  .   Interface for Master Router  Interface for Slave Router    High Availability  Checking this box specifies that the Peplink Balance unit is part of a high availability  Enable  configuration.  This number identifies a pair of Peplink Balance units operating in a high availability  Group Number  configuration. The two Peplink Balance units in the pair must have the same   G roup Number  value.  This setting specifies whether the Peplink Balance unit operates in master or slave mode.  Preferred Role  Click the corresponding radio button to set the role of the unit. One of the units in the pair  must be configured as the master, and the other unit must be configured as the slave.  Resume  This option is displayed when   M aster    mode is selected in   P referred Role  .  If this option is  Master Role  enabled, once the device has recovered from an outage, it will take over and resume its  Upon  Master    role from the slave unit. ...
  • Page 162 If   C onfiguration Sync.   i s checked, the serial number of the master unit is required here for  Number  the feature to work properly.  The HA pair must share the same   V irtual IP  .  The   V irtual IP    and the   L AN Administration IP  Virtual IP  must be under the same network.  LAN  This setting specifies a LAN IP address to be used for accessing administration functionality.  Administration  This address should be unique within the LAN.  IP    Subnet Mask  This setting specifies the subnet mask of the LAN.     Important Note  For Balance routers in NAT mode, the virtual IP (VIP) should be set as the default gateway for all hosts sitting on  the LAN segment. For example, a firewall sitting behind the Balance should set its default gateway as the virtual IP  instead of the IP of the master Balance.      In drop­in mode, no other configuration needs to be set.      https://www.peplink.com  162  Copyright @ 2019 Peplink   ...
  • Page 163: CertificateĀ Manager

          Please note that the drop­in WAN cannot be configured as a LAN bypass port while it is configured for high    availability. 14.2.2 Certificate Manager    This section allows you to assign certificates for the local VPN, OpenVPN, Captive Portal, Mediafast,    https://www.peplink.com  163  Copyright @ 2019 Peplink   ...
  • Page 164: ServiceĀ Forwarding

      Contenthub, Wi­Fi WAN (Client and CA) and web admin SSL for extra security.   Read the following knowledgebase article for full instructions on how to create and import a self­signed  certificate:  https://forum.peplink.com/t/how­to­create­a­self­signed­certificate­and­import­it­to­a­peplink­product/      14.2.3 Service Forwarding  Service forwarding settings are located at   N etwork>Misc. Settings>Service Forwarding  .       Service Forwarding  When this option is enabled, all outgoing SMTP connections destined for any host at  TCP port 25 will be intercepted. These connections will be redirected to a specified  SMTP Forwarding  SMTP server and port number. SMTP server settings for each WAN can be specified  after selecting   E nable  .   When this option is enabled, all outgoing connections destined for the proxy server  specified in   W eb Proxy Interception Settings    will be intercepted. These  Web Proxy  connections will be redirected to a specified web proxy server and port number. Web  Forwarding  proxy interception settings and proxy server settings for each WAN can be specified  after selecting   E nable  .  ...
  • Page 165: SmtpĀ Forwarding

      SMTP Forwarding  Some ISPs require their users to send e­mails via the ISP’s SMTP server. All outgoing SMTP connections  are blocked except those connecting to the ISP’s. The Peplink Balance supports the interception and  redirection of all outgoing SMTP connections (destined for TCP port 25) via a WAN connection to the  WAN’s corresponding SMTP server.    To enable the feature, select   E nable    under   S MTP Forwarding Setup  .  Check   E nable Forwarding    for the  WAN connection(s) that needs forwarding. Under   S MTP Server  ,  enter the ISP’s e­mail server host name  or IP address. Under   S MTP Port  ,  enter the TCP port number for each WAN.    The Peplink Balance will intercept SMTP connections. Choose a WAN port according to the outbound  policy, and then forward the connection to the SMTP server, if the chosen WAN has enabled forwarding.  If the forwarding is disabled for a WAN connection, SMTP connections for the WAN will be simply be  forwarded to the connection’s original destination.  Note  If you want to route all SMTP connections only to particular WAN connection(s), you should create a custom rule  in outbound policy (see   S ection   1 6.1  ) . ...
  • Page 166: DnsĀ Forwarding

                                    the IP Address and Port of the server you wish to forward to the service to.    14.2.4 Service Passthrough    Service passthrough settings can be found at   N etwork>Misc. Settings>Service Passthrough  .       Some Internet services need to be specially handled in a multi­WAN environment. The Peplink Balance  can handle these services such that Internet applications do not notice it is behind a multi­WAN router.  Settings for service passthrough support are available here.  Service Passthrough Support  Session initiation protocol, aka SIP, is a voice­over­IP protocol. The Peplink Balance can  SIP  act as a SIP application layer gateway (ALG) which binds connections for the same SIP    https://www.peplink.com  166  Copyright @ 2019 Peplink   ...
  • Page 167: GroupedĀ Networks 1

      session to the same WAN connection and translate IP address in the SIP packets  correctly in NAT mode. Such passthrough support is always enabled and there are two  modes for selection:   S tandard Mode    and   C ompatibility Mode  .   If your SIP server’s signal port number is non­standard, you can check the box   D efine  custom signal ports    and input the port numbers to the text boxes.  With this option enabled, protocols that provide audio­visual communication sessions will  H.323  be defined on any packet network and passthrough the Balance.  FTP sessions consist of two TCP connections; one for control and one for data. In a  multi­WAN situation, they must be routed to the same WAN connection. Otherwise,  problems will arise in transferring files. By default, the Peplink Balance monitors TCP  FTP  control connections on port 21 for any FTP connections and binds TCP connections of  the same FTP session to the same WAN.   If you have an FTP server listening on a port number other than 21, you can check  Define custom control ports    and enter the port numbers in the text boxes.  The Peplink Balance monitors outgoing TFTP connections and routes any incoming  TFTP  TFTP data packets back to the client. Select   E nable    if you want to enable TFTP  passthrough support.  This field is for enabling the support of IPsec NAT­T passthrough. UDP ports 500, 4500, ...
  • Page 168: SimĀ Toolkit 1

      Start by clicking on “add group” then fill in the appropriate field.  In this example we’ll create a group “accounting”  Click save when you have finished adding the required networks.    The grouped network “accounting” can now be used to configure a group policy or firewall rule.        14.2.6 SIM Toolkit  The SIM Toolkit ,accessible via   N etworks > Misc Settings > SIM Toolkit  ,  supports two functionalities,  USSD and SMS.    USSD    Unstructured Supplementary Service Data (USSD) is a protocol used by mobile phones to communicate  with their service provider’s computers. One of the most common uses is to query the available balance.    https://www.peplink.com  168  Copyright @ 2019 Peplink   ...
  • Page 169     Enter your USSD code under the   U SSD Code    text field and click   S ubmit  .     You will receive a confirmation. To check the SMS response, click   G et  .     After a few minutes you will receive a response to your USSD code      https://www.peplink.com  169  Copyright @ 2019 Peplink   ...
  • Page 170: ApĀ Tab

      SMS    The SMS option allows you to read SMS (text) messages that have been sent to the SIM in  your Peplink router.          15 AP Tab  15.1 AP  15.1.1 AP Controller  Clicking on the   A P    tab will default to this menu, where you can view basic AP management options:    https://www.peplink.com  170  Copyright @ 2019 Peplink   ...
  • Page 171 Create a local DNS record for the AP controller with a value corresponding to the                               Remote AP  AP controller's public IP address.      Select the required option to synchronize the managed AP’s. Options are:  Sync. Method  ● As soon as possible (default)    https://www.peplink.com  171  Copyright @ 2019 Peplink   ...
  • Page 172: WirelessĀ Ssid 1

      ● Progressively (synchronize AP’s in groups)  ● One at a time (synchronize one AP at a time)  Access points to manage can be specified here. If   A ny    is selected, the AP controller will  Permitted AP  manage any AP that reports to it. If   A pproved List    is selected, only APs with serial  numbers listed in the provided text box will be managed.    15.1.2 Wireless SSID    Current SSID information appears in the   S SID    section. To edit an existing SSID, click its name in the list.  To add a new SSID, click   A dd  .  Note that the following settings vary by model.  The below settings ishows a  new SSID window with Advanced Settings enabled (these are available by  selecting the question mark in the top right corner).        https://www.peplink.com  172  Copyright @ 2019 Peplink   ...
  • Page 173 Click the drop­down menu to apply a time schedule to this interface  This setting specifies the VLAN ID to be tagged on all outgoing packets  generated from this wireless network (i.e., packets that travel from the Wi­Fi  segment through the Pepwave AP One unit to the Ethernet segment via the  VLAN  LAN port). The default value of this setting is   0   ,  which means VLAN tagging  is disabled (instead of tagged with zero).  Use of a VLAN pool is enabled by selecting the checkbox.  This setting specifies whether or not Wi­Fi clients can scan the SSID of this  Broadcast SSID  wireless network.   B roadcast SSID    is enabled by default.  Select   A uto    to allow the Pepwave router to set the data rate automatically,  Data Rate     or select   F ixed    and choose a rate from the displayed drop­down menu.  This setting enables the filtering of multicast network traffic to the wireless  Multicast Filter    SSID.    https://www.peplink.com  173  Copyright @ 2019 Peplink   ...
  • Page 174 When this option is enabled, clients on the same VLAN, SSID, or subnet are  Layer 2 Isolation     isolated to that VLAN, SSID, or subnet, which can enhance security. Traffic  is passed to upper communication layer(s). By default, the setting is  disabled.   Maximum Number of  Indicate the maximum number of clients that should be able to connect to  Clients  each frequency.  To reduce 2.4 GHz band overcrowding, AP with band steering steers clients  capable of 5 GHz operation to 5 GHz frequency.  Choose between:  Force    ­ Clients capable of 5 GHz operation are only offered with 5 GHz  Band Steering  frequency.  Prefer    ­ Clients capable of 5 GHz operation are encouraged to associate  with 5 GHz frequency. If the clients insist to attempt on 2.4 GHz frequency,  2.4 GHz frequency will be offered.  Disable    ­ Default  A   ­ Advanced feature. Click the   button on the top right­hand corner to activate.      Security Settings  Security Policy  This setting configures the wireless authentication and encryption methods.    https://www.peplink.com  174  Copyright @ 2019 Peplink   ...
  • Page 175 When   W PA/WPA2­ Personal   i s configured, a shared key is used for data encryption  and authentication. When using this configuration, the   S hared Key    option should be  enabled. Key length must be between eight and 63 characters (inclusive). The  security level of this method is known to be high.      Access Control  The settings allow administrator to control access using MAC address filtering.  Available options are   N one  ,    D eny all except listed  ,  and   A ccept all except listed  Restricted Mode    Connection coming from the MAC addresses in this list will be either denied or  accepted based on the option selected in the previous field.  MAC Address  List  If more than one MAC address needs to be entered, you can use a carriage return  to separate them.        https://www.peplink.com  175  Copyright @ 2019 Peplink   ...
  • Page 176: ApĀ >Ā Profiles

    Choose between    Device Name  ,    L AN MAC address  ,    D evice Serial Number    and  NAS­Identifier  Custom Value    15.1.3 AP > Profiles        AP Settings  AP Profile Name  Ap Profile name  SSID  You can select the wireless networks for 2.4 GHz or 5 GHz separately for each SSID.  This drop­down menu specifies the national/regional regulations which the Wi­Fi radio  should follow.    ● If a North American region is selected, RF channels 1 to 11 will be available  Operating  and the maximum transmission power will be 26 dBm (400 mW).    Country  ● If European region is selected, RF channels 1 to 13 will be available. The  maximum transmission power will be 20 dBm (100 mW).  NOTE: Users are required to choose an option suitable to local laws and regulations.  Preferred  Indicate the preferred frequency to use for clients to connect.  Frequency      https://www.peplink.com  176  Copyright @ 2019 Peplink   ...
  • Page 177 Update  This option is for specifying the transmission output power for the Wi­Fi AP. There are 4  Output Power  relative power levels available –    M ax  ,    H igh  ,    M id  ,  and   L ow  .  The actual output power  will be bound by the regulatory limits of the selected country.  Client Signal  Strength  This setting determines the maximum strength at which the Wi­Fi AP can broadcast  Threshold  Maximum  This setting determines the maximum number of clients that can connect to this Wi­Fi  number of  frequency.  clients    Advanced Wi­Fi AP settings can be displayed by clicking the    on the top right­hand      https://www.peplink.com  177  Copyright @ 2019 Peplink   ...
  • Page 178 VLAN ID  NOTE: Change this value with caution as alterations may result in loss of connection to  the AP Controller.  Operating  Choose from the schedules that you have defined in System>Schedule. Select the  Schedule  schedule for the integrated AP to follow from the drop­down menu.  This option is for setting the transmit bit rate for sending a beacon. By default,   1 Mbps    is  Beacon Rate     selected.   This option is for setting the time interval between each beacon. By default,   1 00ms    is  Beacon Interval     selected.   This field allows you to set the frequency for the beacon to include delivery traffic  DTIM     indication messages. The interval is measured in milliseconds. The default value is set to  1 ms  .   The RTS (Request to Clear) threshold determines the level of connection required before  RTS Threshold     the AP starts sending data. The recommended standard of the RTS threshold is around  500.    https://www.peplink.com  178  Copyright @ 2019 Peplink   ...
  • Page 179 This field is for setting the wait time to receive an acknowledgement packet before  ACK Timeout     performing a retransmission. By default, this field is set to   4 8 µs  .   Frame  This option allows you to enable frame aggregation to increase transmission throughput.  Aggregation     A   ­ Advanced feature, please click the   button on the top right­hand corner to activate.      Web Administration Settings  Enable  Ticking this box enables web admin access for APs located on the WAN.  Web Access  Determines whether the web admin portal can be accessed through HTTP or HTTPS  Protocol  Management  Determines the port at which the management UI can be accessed.  Port  HTTP to HTTPS  Redirects HTTP request to HTTPS  redirection  Admin  Determines the username to be used for logging into the web admin portal  Username  Admin  Determines the password for the web admin portal on external AP.   Password    https://www.peplink.com  179  Copyright @ 2019 Peplink   ...
  • Page 180: ApĀ ControllerĀ Status

    15.2 AP Controller Status  15.2.1 Info  A comprehensive overview of your AP can be accessed by navigating to   A P > Info  .     AP Controller  This field displays the maximum number of AP your Balance router can control. You can  License Limit  purchase licenses to increase the number of AP you can manage.  Underneath, there are two check boxes labeled   2 .4 Ghz    and   5  Ghz  .  Clicking either box  Frequency  will toggle the display of information for that frequency. By default, the graphs display the  number of clients and data usage for both 2.4GHz and 5 GHz frequencies.   The colored boxes indicate the SSID to display information for. Clicking any colored box  SSID  will toggle the display of information for that SSID. By default, all the graphs show  information for all SSIDs.  No. of APs  This pie chart and table indicates how many APs are online and how many are offline.   This graph displays the number of clients connected to each network at any given time.  No.of Clients  Mouse over any line on the graph to see how many clients connected to a specific SSID    https://www.peplink.com  180  Copyright @ 2019 Peplink   ...
  • Page 181: AccessĀ PointsĀ (Usage)

    Z oom    to select the time scale you wish to view. In addition,  you could use the sliders at the bottom to further refine your timescale.        15.2.2 Access Points (Usage)  A detailed breakdown of data usage for each AP is available at   A P> Access Point  .       Usage  AP Name/Serial  This field enables you to quickly find your device if you know its name or serial number.  Number  Fill in the field to begin searching. Partial names and serial numbers are supported.  Online Status  This button toggles whether your search will include offline devices.  This table shows the detailed information on each AP, including channel, number of  clients, upload traffic, and download traffic. Click the blue arrows at the left of the table to  expand and collapse information on each device group. You could also expand and  Managed  collapse all groups by using the   buttons.  Wireless Devices  On the right of the table, you will see the following icons:  .  Click the   icon to see a usage table for each client:    https://www.peplink.com  181  Copyright @ 2019 Peplink   ...
  • Page 182       Click the   icon to configure each client      For easier network management, you can give each client a name and designate its  location. You can also designate which firmware pack (if any) this client will follow, as  well as the channels on which the client will broadcast.    Click the   icon to see a graph displaying usage:    https://www.peplink.com  182  Copyright @ 2019 Peplink   ...
  • Page 183: WirelessĀ Ssid

        Click any point in the graphs to display detailed usage and client information for that  device, using that SSID, at that point in time. On the   D ata Usage by    menu, you can  display the information by SSID or by AP send/receive rate.  Click the   E vent    tab next to   W ireless Usage    to view a detailed event log for that  particular device:      15.2.3 Wireless SSID  In­depth SSID reports are available under AP > SSID.    https://www.peplink.com  183  Copyright @ 2019 Peplink   ...
  • Page 184: WirelessĀ Client

              users. Click the         icon to bookmark specific users, and click the                   icon for additional         https://www.peplink.com  184  Copyright @ 2019 Peplink   ...
  • Page 185: NearbyĀ Device

      details about each user:      15.2.5 Nearby Device  A listing of near devices can be accessed by navigating to   A P > Controller Status >  Nearby Device  .     https://www.peplink.com  185  Copyright @ 2019 Peplink   ...
  • Page 186: EventĀ Log

        Nearby Devices  Hovering over the device MAC address will result in a popup with information on how this device was detected. Click  the   icons and the device will be moved to the bottom table of identified devices.    15.2.6 Event Log  You can access the AP Controller Event log by navigating to   A P > Controller Status >  Event Log  .         https://www.peplink.com  186  Copyright @ 2019 Peplink   ...
  • Page 187: Toolbox

        Events  This event log displays all activity on your AP network, down to the client level. Use to filter box to search by MAC  address, SSID, AP Serial Number, or AP Profile name. Click   V iew Alerts    to see only alerts, and click the   M ore…  link for additional records.    15.3 Toolbox  Additional tools for managing firmware packs, power adjustment, and channel  assignment can be found at   A P>Toolbox  .     Firmware Packs  This is the first menu that will appear. Here, you can manage the firmware of your AP. Clicking on   will display  information regarding each firmware pack. To receive new firmware packs, you can either press    to download new packs or you can press   to manually upload a firmware pack. Press   to  define which firmware pack is default.    https://www.peplink.com  187  Copyright @ 2019 Peplink   ...
  • Page 188: SystemĀ Tab

    There are two types of user accounts available for accessing the web admin:   a dmin   a nd   u ser  .  They  represent two user levels: the admin level has full administrative access, while the user level is read­only.  The user level can access only the device's status information; users cannot make any changes on the  device.  A web login session will be logged out automatically when it has been idle longer than the   W eb Session  Timeout  .  Before the session expires, you may click the   L ogout    button in the web admin to exit the  session.  0 hours 0 minutes    signifies an unlimited session time. This setting should be used only in special  situations, as it will lower the system security level if users do not log out before closing the browser.      T he  default    is 4 hours, 0 minutes.    For security reasons, after logging in to the web admin Interface for the first time, it is recommended to  change the administrator password. Configuring the administration interface to be accessible only from  the LAN can further improve system security. Administrative settings configuration is located at  System>Admin Security  .      https://www.peplink.com  188  Copyright @ 2019 Peplink   ...
  • Page 189 Router Name    is set as   M AX_XXXX  ,  where   X XXX    refers to the last 4 digits of  the unit’s serial number.  Admin User Name  Admin User Name    is set as   a dmin    by default, but can be changed, if desired.  Admin Password  This field allows you to specify a new administrator password.  Confirm Admin  This field allows you to verify and confirm the new administrator password.  Password  Read­only User  Read­only User Name    is set as   u ser    by default, but can be changed, if desired.  Name  This field allows you to specify a new user password. Once the user password is  User Password  set, the read­only user feature will be enabled.  Confirm User  This field allows you to verify and confirm the new user password.  Password    https://www.peplink.com  189  Copyright @ 2019 Peplink   ...
  • Page 190 Accounting Server  This specifies the access address and port of the external accounting server.  Accounting Server  This field is for entering the secret key for accessing the accounting server.  Secret  Network  This option is for specifying the network connection to be used for  Connection  authentication. Users can choose from LAN, WAN, and VPN connections.  The CLI (command line interface) can be accessed via SSH. This field enables  CLI SSH   CLI support. For additional information regarding CLI, please refer to   S ection  30.5.  CLI SSH Port  This field determines the port on which clients can access CLI SSH.  This menu allows you to choose between granting access to LAN and WAN  CLI SSH Access  clients, or to LAN clients only.   This option is for specifying the protocol(s) through which the web admin  interface can be accessed:  ● HTTP  Security  ● HTTPS   ● HTTP/HTTPS  This field is for specifying the port number on which the web admin interface can  Web Admin Port  be accessed.  Web Admin  This option is for specifying the network interfaces through which the web admin  Access  interface can be accessed:    https://www.peplink.com  190  Copyright @ 2019 Peplink   ...
  • Page 191 Allow access from the following IP subnets only    ­ Restrict web admin  access only from the defined IP subnets.  When this is chosen, a text input  area will be displayed beneath:  Allowed Source  The allowed IP subnet addresses should be entered into this text area. Each IP  IP Subnets  subnet must be in form of   w .x.y.z/m  ,  where   w .x.y.z    is an IP address (e.g.,  192.168.0.0  ) , and   m     is the subnet mask in CIDR format, which is between 0 and  32 inclusively (For example,   1 92.168.0.0/24  ) .  To define multiple subnets, separate each IP subnet one in a line. For example:  ● 192.168.0.0/24  ● 10.8.0.0/16  This is to choose which WAN IP address(es) the web server should listen on.  Allowed WAN IP    https://www.peplink.com  191  Copyright @ 2019 Peplink   ...
  • Page 192: Firmware

    Using the router’s interface to automatically check for an update, using the router’s interface  to manually upgrade the firmware, or using InControl2 to push an upgrade to a router.   The automatic upgrade can be done from   S ystem    >   F irmware  .     If an update is found the buttons will change to allow you to   D ownload and Update    the  firmware.    Click on the   D ownload and Upgrade    button. A prompt will be displayed advising to  download the Current Active Configuration. Please click on the underlined download text.  After downloading the current config click the   O k    button to start the upgrade process.  The router will download and then apply the firmware. The time that this process takes will  depend on your internet connection’s speed.    The firmware will now be applied to the router*. The amount of time it takes for the firmware  to upgrade will also depend on the router that’s being upgraded.    https://www.peplink.com  192  Copyright @ 2019 Peplink   ...
  • Page 193     *Upgrading the firmware will cause the router to reboot.    Web admin interface : install  updates manually  In some cases, a special build may be provided via a ticket or it may be found in the forum. Upgrading to  the special build can be done using this method, or using IC2 if you are using that to manage your  firmware upgrades. A manual upgrade using the GA firmware posted on the site may also be  recommended or required for a couple of reasons.  All of the Peplink/Pepwave GA firmware can be found   h ere    Navigate to the relevant product line (ie.  Balance, Max, FusionHub, SOHO, etc). Some product lines may have a dropdown that lists all of the  products in that product line. Here is a screenshot from the Balance line.    If the device has more than one firmware version the current hardware revision will be required to know  what firmware to download.  Navigate to System > Firmware and click the Choose File button under the Manual Firmware Upgrade  section. Navigate to the location that the firmware was downloaded to select the “.img” file and click the  Open button.  Click on the Manual Upgrade button to start the upgrade process.      https://www.peplink.com  193  Copyright @ 2019 Peplink   ...
  • Page 194: TheĀ IncontrolĀ Method 1

      Described in this knowledgebase article on our forum.  16.1.3 Time  The time server functionality enables the system clock of the Peplink Balance to be synchronized with a  specified time server. The settings for time server configuration are located at   S ystem>Time  .     Time Settings  This specifies the time zone (along with the corresponding Daylight Savings Time scheme)  in which Peplink Balance operates. The   T ime Zone    value affects the time stamps in the  Time Zone  event log of the Peplink Balance and e­mail notifications. Check   S how all    to show all time  zone options.  Time Server  This setting specifies the NTP network time server to be utilized by the Peplink Balance.    16.1.4 Schedule  Enable and disable different functions (such as WAN connections, outbound policy, and firewalls at  ...
  • Page 195         Enable scheduling, and then click on your schedule name or on the   N ew Schedule   b utton to begin.            https://www.peplink.com  195  Copyright @ 2019 Peplink   ...
  • Page 196: EmailĀ Notification

    Click this checkbox to enable this schedule profile. Note that if this is disabled, then any  Enabling  associated features will also have their scheduling disabled.  Name  Enter your desired name for this particular schedule profile.  Click the drop­down menu to choose pre­defined schedules as your starting point. Please  Schedule  note that upon selection, previous changes on the schedule map will be deleted.   Click on the desired times to enable features at that time period. You can hold your mouse  Schedule Map  for faster entry.    16.1.5 Email Notification  The email notification functionality of the Peplink Balance provides a system administrator with up­to­date  information on network status. The settings for configuring email notification are found at   S ystem>Email  Notification  .     Email Notification Settings  This setting specifies whether or not to enable email notification. If    Enable    is checked, the  Email  Peplink Balance will send email messages to system administrators when the WAN status  Notification  changes or when new firmware is available. If     Enable    is not checked, email notification is  disabled and the Peplink Balance will not send email messages.  This setting specifies the SMTP server to be used for sending email. If the server requires  SMTP Server  authentication, check   R equire authentication  .  ...
  • Page 197 D efault    to restore the number to its default setting.   SMTP User  This setting specifies the SMTP username and password while sending email. These  Name /  options are shown only if   R equire authentication   i s checked in the   S MTP Server    setting.  Password  Confirm SMTP  This field allows you to verify and confirm the new administrator password.  Password  Sender’s Email  This setting specifies the email address which the Peplink Balance will use to send its  Address  reports.  Recipient’s  This setting specifies the email address(es) to which the Peplink Balance will send email  Email Address  notifications. For multiple recipients, separate each email using the enter key.  After you have finsihed setting up email notifications, you can click the   T est Email Notification   b utton to  test the settings before saving. After   T est Email Notification    is clicked, you will see this screen to confirm  the settings: ...
  • Page 198: EventĀ Log

        16.1.6 Event Log  Event log functionality enables event logging at a specified remote syslog server. The settings for  configuring the remote system log can be found at   S ystem>Event Log  .     Remote Syslog Settings  Remote Syslog  This setting specifies whether or not to log events at the specified remote syslog server.  Remote Syslog  This setting specifies the IP address or hostname of the remote syslog server.  Host  The Peplink Balance can also send push notifications to mobile devices that have our  Push Events  Mobile Router Utility installed. Check the box to activate this feature.    For more information on the Router Utility, go to:   w ww.peplink.com/products/router­utility        16.1.7 SNMP  SNMP or simple network management protocol is an open standard that can be used to collect  information about the Peplink Balance unit. SNMP configuration is located at   S ystem>SNMP  .     https://www.peplink.com  198  Copyright @ 2019 Peplink   ...
  • Page 199     SNMP Settings  SNMP Device  This field shows the router name defined at   S ystem>Admin Security  .   Name  SNMP Port  This option specifies the port which SNMP will use. The default port is   1 61  .   SNMPv1  This option allows you to enable SNMP version 1.  SNMPv2  This option allows you to enable SNMP version 2.  SNMPv3  This option allows you to enable SNMP version 3.                          https://www.peplink.com  199  Copyright @ 2019 Peplink   ...
  • Page 200 Subnet  subnet address here (e.g.,   1 92.168.1.0  )  and select the appropriate subnet mask.  Address  To define a user name for SNMPv3, click   A dd SNMP User   i n the   S NMPv3 User Name   t able, upon which  the following screen is displayed:    SNMPv3 User Settings  User Name  This setting specifies a user name to be used in SNMPv3.  This setting specifies via a drop­down menu one of the following valid authentication  protocols:   Authentication  ● NONE  Protocol  ● MD5   ● SHA  When MD5 or SHA is selected, an entry field will appear for the password.  This setting specifies via a drop­down menu one of the following valid privacy  Privacy Protocol  protocols:     https://www.peplink.com  200  Copyright @ 2019 Peplink   ...
  • Page 201: Incontrol

      ● NONE   ● DES  When DES is selected, an entry field will appear for the password.     16.1.8 InControl    InControl is a cloud­based service which allows you to manage all of your Peplink and Pepwave devices  with one unified system. With it, you can generate reports, gather statistics, and configure your devices  automatically. All of this is now possible with InControl.  When this check box is checked, the device's status information will be sent to the Peplink InControl  system. This device's usage data and configuration will be sent to the system if you enable the features in  the system.  Alternately, you could also privately host InControl. Simply check the box beside the “Privately Host  InControl” open, and enter the IP Address of your InControl Host.  You can sign up for an InControl account at https://incontrol2.peplink.com. You can register your devices    under the account, monitor their status, see their usage reports, and receive offline notifications.       https://www.peplink.com  201  Copyright @ 2019 Peplink   ...
  • Page 202: Configuration

        16.1.9 Configuration  Backing up Peplink Balance settings immediately after successful completion of initial setup is strongly  recommended. The functionality to download and upload Peplink Balance settings is found at  System>Configuration  .         Configuration  Restore  The   R estore Factory Settings   b utton is to reset the configuration to factory default  Configuration  settings. After clicking the button, you will need to click the   A pply Changes   b utton on the  to Factory  top right corner to make the settings effective.  Settings  Download  Active  Click   D ownload    to backup the current active settings.   Configurations  To restore or change settings based on a configuration file, click   C hoose File   t o locate the ...
  • Page 203: FeatureĀ AddĀ­ons

      Configurations  the LAN IP address of the Peplink Balance unit so that it is different from the HA  counterpart.  from High  Availability Pair    16.1.10 Feature Add­ons  Some balance models have features that can be activated upon purchase. Once the purchase is  complete, you will receive an activation key. Enter the key in the   A ctivation Key    field, click   A ctivate  ,  and  then click   A pply Changes  .         16.1.11 Reboot  This page provides a reboot button for restarting the system. For maximum reliability, the Peplink Balance  Series can equip with two copies of firmware, and each copy can be a different version. You can select  the firmware version you would like to reboot the device with. The firmware marked with   ( Running)    is the  current system boot up firmware.  Please note that a firmware upgrade will always replace the inactive firmware partition.     ...
  • Page 204: Tools

    16.3 Ping  The ping test tool sends pings through a specific Ethernet interface or a SpeedFusion  TM   VPN connection.  You can specify the number of pings in the field   N umber of times   t o a maximum number of 10 times.  Packet Size    can be set to a maximum of 1472 bytes. The ping utility is located at   S ystem>Tools>Ping  ,   illustrated below:      Tip  A system administrator can use the ping utility to manually check the connectivity of a particular LAN/WAN  connection.    16.4 Traceroute  The traceroute test tool traces the routing path to the destination through a particular Ethernet interface or  TM   a SpeedFusion  connection. The traceroute test utility is located at   S ystem>Tools>Traceroute  .       https://www.peplink.com  204  Copyright @ 2019 Peplink   ...
  • Page 205: WakeĀ­onĀ­lan

        Tip  A system administrator can use the traceroute utility to analyze the connection path of a LAN/WAN connection.    16.5 Wake­on­LAN  Peplink routers can send special “magic packets” to any client specified from the Web UI. To access this                              ...
  • Page 206   Youcan set a device up as a   S erver    or a   C lient  .  One device must be set up as a server to  run the speed tests and the server must have a public IP address. T    The default port is 6000 and can be changed if required. The IP address of the WAN  interface will be shown in the   W AN Connection Status    section.    https://www.peplink.com  206  Copyright @ 2019 Peplink   ...
  • Page 207     The client side has a few more settings that can be changed. Make sure that the   C ontrol  Port    matches what’s been entered on the server side. Select the WAN(s) that will be used  for testing and enter the Servers WAN IP address. Once all of the options have been set,  click the   S tart Test    button.    https://www.peplink.com  207  Copyright @ 2019 Peplink   ...
  • Page 208     The test output will show the   D ata Streams Parameters  ,  the   T hroughput    as a graph, and  the   R esults  .     https://www.peplink.com  208  Copyright @ 2019 Peplink   ...
  • Page 209: CliĀ (CommandĀ Line)Ā Support 2

        The test can be run again once it’s complete by clicking the   S tart    button or you can click  Close    and change the parameters for the test.      16.7 CLI (Command Line) Support  The serial console connector on some Peplink Balance units is RJ­45. To access the  serial console port, prepare a RJ­45 to DB­9 console cable. Connect the RJ­45 end to  the unit's console port and the DB­9 end to a terminal's serial port. The port setting will  be   1 15200,8N1  .     https://www.peplink.com  209  Copyright @ 2019 Peplink   ...
  • Page 210: StatusĀ Tab

      The serial console connector on other Peplink Balance units is a DB­9 male connector.  To access the serial console port, connect a null modem cable with a DB­9 connector  on both ends to a terminal with the port setting of   1 15200,8N1  .         Status Tab  17.1 Status  17.1.1 Device  System information is located at   S tatus>Device  .     https://www.peplink.com  210  Copyright @ 2019 Peplink   ...
  • Page 211           https://www.peplink.com  211  Copyright @ 2019 Peplink   ...
  • Page 212: ActiveĀ Sessions

    Diagnostic  The   D ownload    link is for exporting a diagnostic report file required for system investigation.  Report  Remote  Click   T urn on    to enable remote assistance.  Assistance    The second table shows the MAC address of each LAN/WAN interface connected.  Important Note  If you encounter issues and would like to contact the Peplink Support Team (  h ttp://www.peplink.com/contact/  ) ,  please download the diagnostic report file and attach it along with a description of your issue. In Firmware 5.1 or  before, the diagnostic report file can be obtained at   S ystem>Reboot  .     17.1.2 Active Sessions  Information on active sessions can be found at   S tatus>Active Sessions>Overview  .     https://www.peplink.com  212  Copyright @ 2019 Peplink ...
  • Page 213     This screen displays the number of sessions initiated by each application. Click on each  service listing for additional information. This screen also indicates the number of  sessions initiated by each WAN port. Finally, you can see which clients are initiating the  most sessions.          https://www.peplink.com  213  Copyright @ 2019 Peplink   ...
  • Page 214: ClientĀ List

      In addition, you can also perform a filtered search for specific sessions. You can filter by  subnet, port, protocol, and interface. To perform a search, navigate to   S tatus>Active  Sessions>Search  .     This   A ctive Sessions    section displays the active inbound / outbound sessions of each  WAN connection on the Peplink Balance. A filter is available to help sort out the active  session information. Enter a keyword in the field or check one of the WAN connection  boxes for filtering.   17.1.3 Client List  The client list table is located at   S tatus>Client List  .  It lists DHCP and online client IP  addresses  ,    n ames (retrieved from the DHCP reservation table or defined by users),  current download and upload rate, and MAC address.     https://www.peplink.com  214  Copyright @ 2019 Peplink   ...
  • Page 215: WinsĀ Clients

      17.1.4 WINS Clients  The WINS client list table is located at   S tatus>WINS Client  .       The WINS client table lists the IP addresses and names of WINS clients. This option will  only be available when you have enabled the WINS server The names of clients  retrieved will be automatically matched into the Client List (see previous section). Click  Flush All   t o flush all WINS client records.    17.1.5 OSPF & RIPv2  Information on OSPF and RIPv2 routing setup can be found at   S tatus>OSPF & RIPv2  .     17.1.6 MediaFast  To get details on storage and bandwidth usage, select      S tatus>MediaFast  .       https://www.peplink.com  215  Copyright @ 2019 Peplink   ...
  • Page 216: SpeedfusionĀ Status

          17.1.7 SpeedFusion Status  Current SpeedFusion  TM   status information is located at   S tatus>SpeedFusion  TM  .  Details about SpeedFusion  TM   connection peers appears as below:    https://www.peplink.com  216  Copyright @ 2019 Peplink   ...
  • Page 217     Click on the corresponding peer name to explore the WAN connection(s) status and  subnet information of each VPN peer.    Click the   button for a chart displaying real­time throughput, latency, and  drop­rate information for each WAN connection.    https://www.peplink.com  217  Copyright @ 2019 Peplink   ...
  • Page 218       When pressing the  button, the following menu will appear:      https://www.peplink.com  218  Copyright @ 2019 Peplink   ...
  • Page 219 The    connection information    shows the details of the selected PepVPN profile, consisting of the Profile  name,   R outer ID  ,    R outer Nam  e  and   S erial Number    of the remote router    Advanced features for the PepVPN profile will also be shown when the   M ore Information   c heckbox is  selected.    The   W AN statistics    show information about the local and remote WAN connections (when   s how  Remote connections  )  is selected.     https://www.peplink.com  219  Copyright @ 2019 Peplink   ...
  • Page 220   The available details are   W AN Name, IP address    and   p ort   u sed for the Speedfusion connection.   R x and  Tx rates, Loss rate and Latency  .   Connections can be temporarily disabled by sliding the switch button next to a WAN connection to the left.  The wan­to­wan connection disabled by the switch is temporary and will be re­enabled after 15 minutes  without any action.  This can be used when testing the PepVPN speed between two locations to see if there is interference or    network congestion between certain WAN connections.   The PepVPN test configuration allows to configure and perform throughput tests.  THis is usually done after the initial installation of the routers and in case there are problems with  aggregation.    Press the Start button to perform throughput test according to the configured options.    If TCP is selected, 4 parallel streams will be generated to get the optimal results by  default. This can be customized by selecting a different value of streams.  Using more streams will typically get better results if the latency of the tunnel is high.      https://www.peplink.com  220  Copyright @ 2019 Peplink   ...
  • Page 221: EventĀ Log

          17.1.8 Event Log  Event log information is located at      S tatus>Event Log  .     https://www.peplink.com  221  Copyright @ 2019 Peplink   ...
  • Page 222: DeviceĀ EventĀ Log

      Device Event Log    The log section displays a list of events that have taken place on the Peplink Balance  unit. Check   A uto      R efresh    to refresh log entries automatically. Click the   C lear Log  button to clear the log.  IPsec Event Log    This section displays a list of events that have taken place within an IPsec VPN  connection. Check the box next to   A uto Refresh    and the log will be refreshed  automatically. For an AP event log, navigate to   A P>Info  .       https://www.peplink.com  222  Copyright @ 2019 Peplink   ...
  • Page 223: Bandwidth

      17.2 Bandwidth  This section shows the bandwidth usage statistics, located at   S tatus>Bandwidth  .   Bandwidth usage at the LAN while the device is switched off (e.g., LAN bypass) is  neither recorded nor shown.   17.2.1 Real­Time  The   D ata transferred since installation   t able indicates how much network traffic has  been processed by the device since the first bootup. The   D ata transferred since last  reboot   t able indicates how much network traffic has been processed by the device  since the last bootup.             https://www.peplink.com  223  Copyright @ 2019 Peplink   ...
  • Page 224: Hourly

      17.2.2 Hourly  This page shows the hourly bandwidth usage for all WAN connections, with the option  of viewing each individual connection. Select the desired connection to check from the  drop­down menu.      17.2.3 Daily  This page shows the daily bandwidth usage for all WAN connections, with the option of  viewing each individual connection.   Select the connection to check from the drop­down menu. If you have enabled the  Bandwidth Monitoring   f eature as shown in   S ection 13.4,    the   C urrent Billing Cycle  table for that WAN connection will be displayed.  Click on a date to view the client bandwidth usage of that specific date. This feature is  not available if you have selected to view the bandwidth usage of only a particular WAN    connection. The scale of the graph can be set to display megabytes      (   M B  )  or gigabytes    https://www.peplink.com  224  Copyright @ 2019 Peplink   ...
  • Page 225   (  G B  ) .    Status      https://www.peplink.com  225  Copyright @ 2019 Peplink   ...
  • Page 226     Click on a specific date to receive a breakdown of all client usage for that date.          https://www.peplink.com  226  Copyright @ 2019 Peplink   ...
  • Page 227: Monthly

    B andwidth Monitoring   f eature as shown in   S ection 13.4  ,  you can check the  usage of each particular connection and view the information by   B illing Cycle    or by  Calendar Month  .   Click the first two rows to view the client bandwidth usage in the last two months. This  feature is not available if you have chosen to view the bandwidth of an individual WAN  connection. The scale of the graph can be set to display megabytes      (   M B  )  or gigabytes  (  G B  ) .    Click on a specific month to receive a breakdown of all client usage for that month.          https://www.peplink.com  227  Copyright @ 2019 Peplink   ...
  • Page 228   Appendix A. Restoration of Factory Defaults   To restore the factory default settings on a Peplink Balance unit, perform the following:   For Balance models with a reset button:  1. Locate the reset button on the Peplink Balance unit.  2. With a paperclip, press and keep the reset button pressed for at least 10  seconds, until the unit reboots itself.   For Balance/MediaFast models with an LCD menu:    ● Use the buttons on front panel to control the LCD menu to go to  Maintenance  >   F actory Defaults  ,  and then choose   Y es    to confirm.  Afterwards, the factory default settings will be restored.     Important Note  All user settings will be lost after restoring the factory default settings. Regular backup of configuration    parameters is strongly recommended. Appendix B. Routing under DHCP, Static IP, and PPPoE   The information in this appendix applies only to situations where the Peplink Balance  operates a WAN connection under DHCP, Static IP, or PPPoE.    Routing Via Network Address Translation (NAT)  ...
  • Page 229       Routing Via IP Forwarding   When the Peplink Balance is operating under IP forwarding mode, the IP addresses of  IP packets are unchanged; the Peplink Balance forwards both inbound and outbound IP  packets without changing their IP addresses.  The following figure shows the packet flow in IP forwarding mode:    https://www.peplink.com  229  Copyright @ 2019 Peplink   ...
  • Page 230     Appendix C. Case Studies   MPLS Alternative   Our SpeedFusion enabled routers can be used to bond multiple low­cost/commodity Internet connections  to replace an expensive managed business Internet connection, private leased line, MPLS, and frame    relay without sacrificing reliability and availability.     Belows are typical deployment for using our Balance routers to replace expensive MPLS connection with    commodity connections, such as ADSL, 3G,  and 4G LTE links.     Special features of Balance 580: have high availability capability Special features of Balance 2500: have high availability capability and capable of connecting to optical  fiber based LAN through SFP+ connector    Our WAN­bonding routers which comprise our Balance series and MediaFast series  are capable of connecting multiple devices, and end users’ networks to the Internet through multiple  Internet connections.    Our MediaFast series routers have been helping students at many education institutions to enjoy  uninterrupted learning    https://www.peplink.com  230  Copyright @ 2019 Peplink   ...
  • Page 231     Option 1: MPLS Supplement     Affordably increase your bandwidth by adding commodity ADSL links to your MPLS connection.  SpeedFusion technology bonds all your connections together, enabling session­persistent,  user­transparent hot failover. QoS support, bandwidth control, and traffic prioritization gives you total    control over your network.       https://www.peplink.com  231  Copyright @ 2019 Peplink   ...
  • Page 232   Option 2: MPLS Alternative     Achieve faster speeds and greater reliability while paying only 20% of MPLS costs by connecting  multiple ADSL, 3G, and 4G LTE links. Choose a topology that suits your requirements: a  hub­and­spoke topology maximizes control over your network, while a meshed topology can reduce  your bandwidth overhead by enabling your devices to form Unbreakable VPN connections directly    with each other.       https://www.peplink.com  232  Copyright @ 2019 Peplink   ...
  • Page 233 Here is an example of to supplement of existing Multi­Office MPLS network with DSL bonding through    SpeedFusion using a Balance 580 at the headquarters and Balance 210/310 at branch offices.        Environment: ­ This organization has one head office with and two branch offices, with most of the crucial  information stored in a server room at the head office.  ­ They are connecting the offices together using a managed MPLS Solution. However, the  MPLS Network is operating at capacity and upgrading the links is cost prohibitive.  ­ As the organization grows, it needs a cost­efficient way to to add more bandwidth to its wide  area network.  ­ Internet access at the remote sites is sent via a web proxy at head office for corporate web  filtering compliance.      Requirement: ­ User sessions need to remain uninterrupted  ­ More bandwidth is required at the head office location for direct internet access.      Recommended Solution: ­ Form a SpeedFusion tunnel between the branch offices and head office to bond the MPLS  and additional DSL lines.  ­ SpeedFusion allows for hot failover, maintaining a persistent session while switching  connections.    https://www.peplink.com  233  Copyright @ 2019 Peplink   ...
  • Page 234: HarringtonĀ IndustrialĀ Plastics

      ­ The DSLs at head office can be used for direct internet access providing lots of cheap  internet bandwidth.  ­ Head office can use outbound policies to send internet traffic out over the DSLs and only use  the MPLS connection for speedfusion, freeing up bandwidth.      Devices Deployed  :  Balance 210, Balance 310, Balance 580   Harrington Industrial Plastics      Overview    Harrington Plastics, the US’s largest industrial plastics distributor, was looking to  upgrade its network equipment. Harrington’s team came across Peplink and started  thinking about MPLS alternatives. By choosing Peplink, they saved a fortune on  upgrades and ended up with yearly savings of up to $100,000.    Requirements  Zero network outages  ­ Flexible resilience options  ­ Cost­effective solution  ­   Solution  Peplink Balance 1350  ­   https://www.peplink.com  234  Copyright @ 2019 Peplink   ...
  • Page 235                         Corporation was chosen to help design and deploy the solution. Since Peplink gear is                            ...
  • Page 236               Unbreakable VPN connection to the Balance 1350s at the corporate office, connecting                         the final dot.    Dependable, Resilient Networking that’s also Very Budget­friendly      https://www.peplink.com  236  Copyright @ 2019 Peplink   ...
  • Page 237: Pluss

    $192000 a year for all 40 sites, their new solution is now only costing them                                   $92000. Their total bandwidth has been bumped from 36 Mbps to 138 Mbps. PLUSS  Peplink + Citrix + VoIP Adds Up to Fast, Cost­Effective WAN for Pluss        A Peplink customer since 2006, Pluss is a social enterprise that each year makes  gainful employment a reality for more than 5000 disabled and disadvantaged UK  citizens. With 37 locations and 300+ active users, Pluss makes heavy use of its WAN  infrastructure, which until recently was built on managed MPLS lines.    Hoping to cut expenses and, if possible, boost performance at the same time, Steve  Taylor, IT Manager at Pluss, set out to find a solution that would allow Pluss to replace  costly MPLS service with a commodity alternative, such as DSL or EFM.    https://www.peplink.com  237  Copyright @ 2019 Peplink   ...
  • Page 238     Steve found the solution Pluss needed in Peplink products, especially the Balance  series of high­performance enterprise routers and SpeedFusion bonding technology.  Pluss now powers its entire WAN infrastructure with simple­to­install, highly reliable, and  cost­effective Peplink gear, which allows it to aggregate DSL and other commodity  connections and replace expensive leased lines.      Colégio Next ­ Enabling eLearning       Colégio Next, a recognized Apple Distinguished School ­ deploys over 500 iPads to its                          ...
  • Page 239                           students connected to the same Wi­Fi access point was enough to bring it to its knees.    Colégio Next needed a unique solution, so they contacted Peplink.    Requirements  ­ Solve network congestion problem caused by 600 students over rural Internet                    ...
  • Page 240                                 the time  ­ Students are far more engaged and teachers rely on their iPads all day              https://www.peplink.com  240  Copyright @ 2019 Peplink   ...
  • Page 241 50M/50M, respectively. This will ensure that outbound traffic is more likely to be  routed through WAN2.  ● For HTTP, set the weight to 3:4.    ● For SMTP, set the weight to 1:8, such that users will have a greater chance to be  routed via WAN2 when sending e­mail.    Maintaining the Same IP Address Throughout a Session   Scenario  Some IP address­sensitive websites (for example, Internet banking) use both client IP  address and cookie matching for session identification. Since load balancing uses  different IP addresses, the session is dropped when a mismatched IP is detected,  resulting in frequent interruptions while visiting such sites.  Solution  Make use of the persistence functionality of the Peplink Balance. With persistence  configured and the   B y Destination      o ption selected, the Peplink Balance will use a  consistent WAN connection for source­destination pairs of IP addresses, preventing  sessions from being dropped.  With persistence configured and the option   B y Source      i s selected, the Peplink Balance  uses a consistent WAN connection for same­source IP addresses. This option offers    https://www.peplink.com  241  Copyright @ 2019 Peplink   ...
  • Page 242 Click   A dd Rule  ,  select   H TTP      ( TCP port 80) for web service, and select   P ersistence  .   Click   S ave    and then   A pply Changes  ,  located at the top right corner, to complete the  process.    Tip  A network administrator can use the traceroute utility to manually analyze the connection path of a particular WAN  connection.    Bypassing the Firewall to Access Hosts on LAN   Scenario  There are times when remote access to computers on the LAN is desirable; for  example, when hosting web sites, online businesses, FTP download and upload areas,  etc. In such cases, it may be appropriate to create an inbound NAT mapping for the  network to allow some hosts on the LAN to be accessible from outside of the firewall.  Solution  The web admin interface can be used to add an inbound NAT mapping to a host and to  bind the host to the WAN connection(s) of your choice. To begin, navigate to    https://www.peplink.com  242  Copyright @ 2019 Peplink   ...
  • Page 243                         WAN1:    Click   S ave    and then   A pply Changes  ,  located at the top right corner, to complete the  process.    Inbound Access Restriction   Scenario  A firewall is required in order to protect the network from potential hacker attacks and  other Internet security threats.    Solution  Firewall functionality is built into the Peplink Balance. By default, inbound access is  unrestricted. Enabling a basic level of protection involves setting up firewall rules.      https://www.peplink.com  243  Copyright @ 2019 Peplink   ...
  • Page 244 Afterwards, change the default inbound rule to   D eny    by clicking the   d efault   r ule in the  Inbound Firewall Rules   t able. Click   A pply Changes    on the top right corner to  complete the process.    Outbound Access Restriction   Scenario  For security reasons, it may be appropriate to restrict outbound access. For example,  you may want to prevent LAN users from using ftp to transfer files to and from the  Internet. This can easily be achieved by setting up an outbound firewall rule with the  Peplink Balance.  Solution  To setup a firewall between Internet and private network for outbound access, navigate  to   N etwork>Firewall>Access Rules  .  Click the   A dd Rule   b utton in the   O utbound  Firewall Rules   t able, and then adjust settings according the screenshot:    https://www.peplink.com  244  Copyright @ 2019 Peplink   ...
  • Page 245     After the fields have been entered as in the screenshot, click   S ave    to add the rule. Click  Apply Changes    on the top right corner to complete the process.        https://www.peplink.com  245  Copyright @ 2019 Peplink   ...
  • Page 246 Outbound load is only distributed over one WAN connection.  Solution  Outbound load balancing can only be distribute traffic evenly between available WAN  connections if many outbound connections are made. If there is only one user on the  LAN and only one download session is made from his/her browser, the WAN  connections cannot be fully utilized.    For a single user, download management applications are recommended. The  applications can split a file into pieces and download the pieces simultaneously.  Examples include: DownThemAll (Firefox Extension), iGetter (Mac), etc.  If the outbound traffic is going across the SpeedFusion  TM   tunnel, (i.e., transferring a file  to a VPN peer) the bandwidth of all WAN connections will be bonded. In this case, all  bandwidth will be utilized and a file will be transferred across all available WAN  connections.  For additional details, please refer to this FAQ:   https://forum.peplink.com/t/speed­test­tool­for­combined­download­speed­in­multi­wan­ environment/8457     Problem 2  I am using a download manager program (e.g., Download Accelerator Plus,  DownThemAll, etc.).  Why is the download speed still only that of a single link?  Solution  First, check whether all WAN connections are up. Second, ensure your download  manager application has split the file into 3 parts or more. It is also possible that all of 2  or even 3 download sessions were being distributed to the same link by chance.    Problem 3  I am using some websites to look up my public IP address, e.g.,   w ww.whatismyip.com  .   When I press the browser's Refresh button, the server almost always returns the same  address. Isn’t the IP address supposed to be changing for every refresh?  Solution  The web server has enabled the   K eep Alive    function, which ensures that you use the ...
  • Page 247 DOS/Windows, at the command prompt, type    ping 192.168.1.1.    This pings the Peplink  Balance device (provided that Peplink Balance’s IP is 192.168.1.1) to test whether the  connection to the Peplink Balance is OK.    Problem 5  What can I do if I suspect a problem on my Internet/WAN connection?  Solution  You can test the WAN connection using ping, as in the solution to Problem 4. As we  want to isolate the problems from the LAN, ping will be performed from the Peplink  Balance. By using   P ing  /   T raceroute      u nder the   S tatus    tab of the Peplink Balance, you  may able to find the source of problem.    Problem 6  When I upload files to a server via FTP, the transfer stalls after a few kilobytes of data  are sent. What should I do?  Solution  The maximum transmission unit (MTU) or MSS setting may need to be adjusted. By  default, the MTU is set at 1440. Choose   A uto    for all of your WAN connections. If that ...
