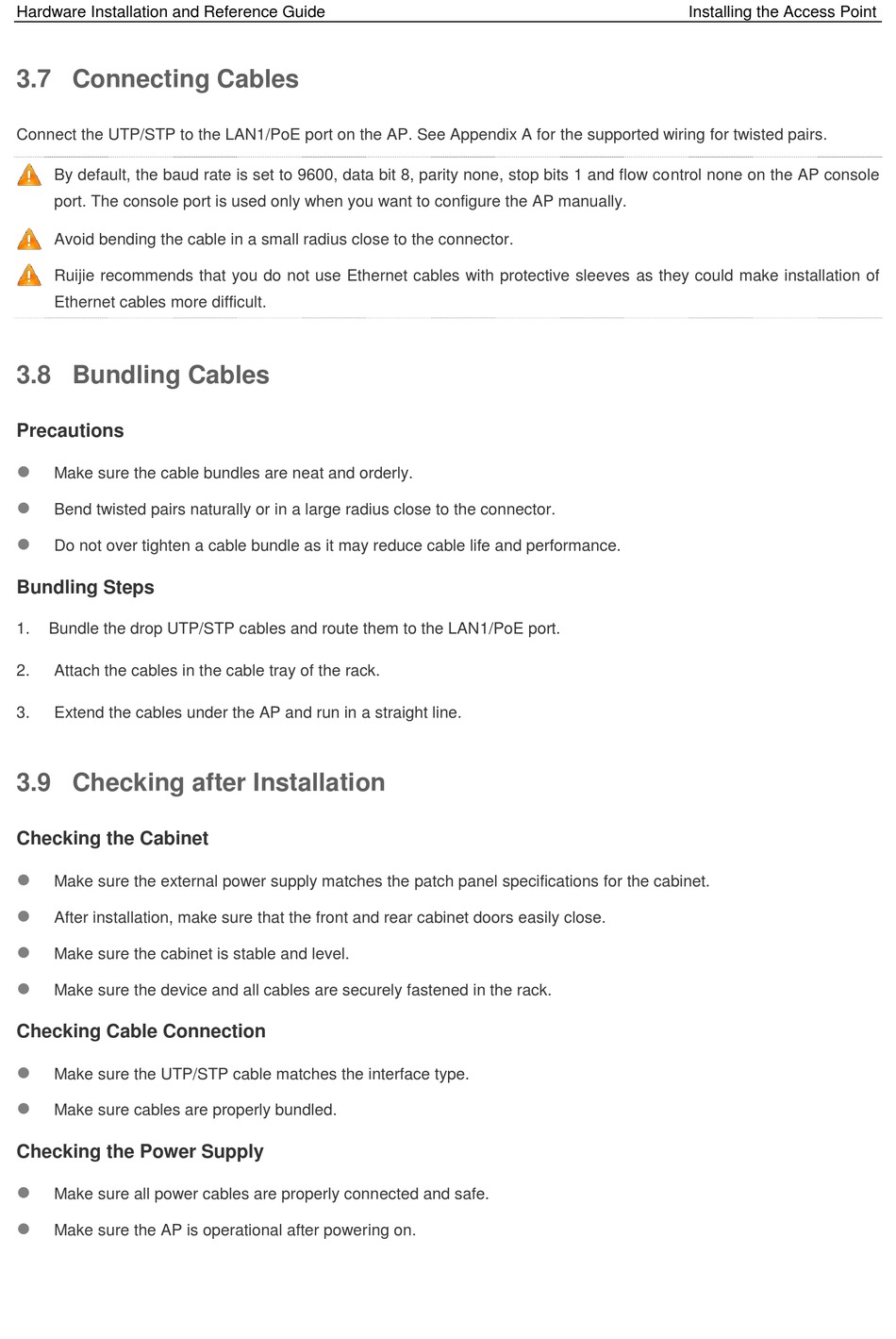

3.7 Connecting Cables

Connect the UTP/STP to the LAN1/PoE port on the AP. See Appendix A for the supported wiring for twisted pairs.
By default, the baud rate is set to 9600, data bit 8, parity none, stop bits 1 and flow control none on the AP console
port. The console port is used only when you want to configure the AP manually.
Avoid bending the cable in a small radius close to the connector.
Ruijie recommends that you do not use Ethernet cables with protective sleeves as they could make installation of
Ethernet cables more difficult.

3.8 Bundling Cables

Precautions

Make sure the cable bundles are neat and orderly.

Bend twisted pairs naturally or in a large radius close to the connector.

Do not over tighten a cable bundle as it may reduce cable life and performance.
Bundling Steps
1. Bundle the drop UTP/STP cables and route them to the LAN1/PoE port.
2. Attach the cables in the cable tray of the rack.
3. Extend the cables under the AP and run in a straight line.

3.9 Checking after Installation

Checking the Cabinet

Make sure the external power supply matches the patch panel specifications for the cabinet.

After installation, make sure that the front and rear cabinet doors easily close.

Make sure the cabinet is stable and level.

Make sure the device and all cables are securely fastened in the rack.
Checking Cable Connection

Make sure the UTP/STP cable matches the interface type.

Make sure cables are properly bundled.
Checking the Power Supply

Make sure all power cables are properly connected and safe.

Make sure the AP is operational after powering on.
