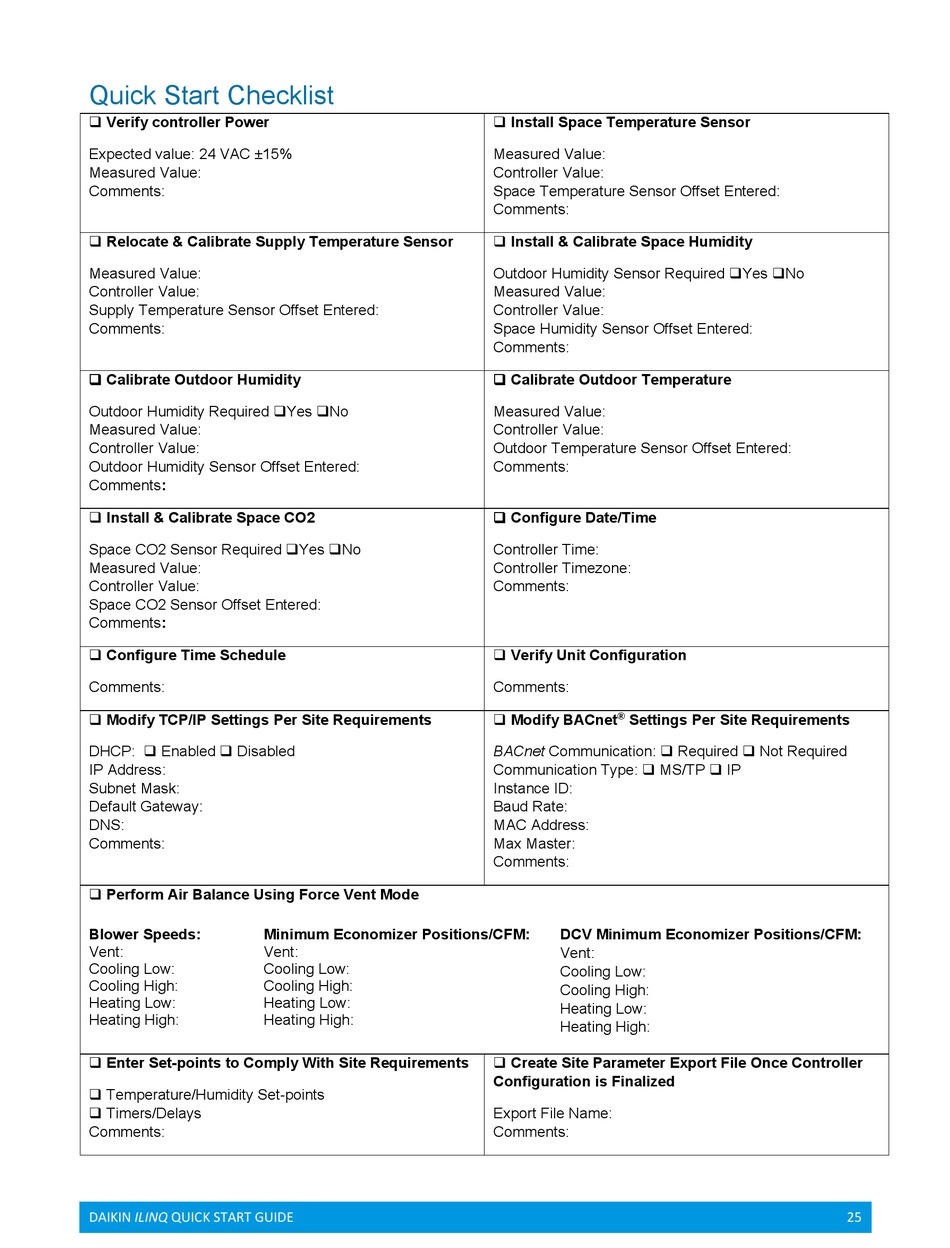

Quick Start Checklist

 Verify controller Power
Expected value: 24 VAC ±15%
Measured Value:
Comments:
 Relocate & Calibrate Supply Temperature Sensor
Measured Value:
Controller Value:
Supply Temperature Sensor Offset Entered:
Comments:
 Calibrate Outdoor Humidity
Outdoor Humidity Required Yes No
Measured Value:
Controller Value:
Outdoor Humidity Sensor Offset Entered:
Comments:
 Install & Calibrate Space CO2
Space CO2 Sensor Required Yes No
Measured Value:
Controller Value:
Space CO2 Sensor Offset Entered:
Comments:
 Configure Time Schedule
Comments:
 Modify TCP/IP Settings Per Site Requirements
DHCP:  Enabled  Disabled
IP Address:
Subnet Mask:
Default Gateway:
DNS:
Comments:
 Perform Air Balance Using Force Vent Mode
Blower Speeds: Minimum Economizer Positions/CFM:
Vent: Vent:
Cooling Low: Cooling Low:
Cooling High: Cooling High:
Heating Low: Heating Low:
Heating High: Heating High:
 Enter Set-points to Comply With Site Requirements
 Temperature/Humidity Set-points
 Timers/Delays
Comments:
DAIKIN ILINQ QUICK START GUIDE
 Install Space Temperature Sensor
Measured Value:
Controller Value:
Space Temperature Sensor Offset Entered:
Comments:
 Install & Calibrate Space Humidity
Outdoor Humidity Sensor Required Yes No
Measured Value:
Controller Value:
Space Humidity Sensor Offset Entered:
Comments:
 Calibrate Outdoor Temperature
Measured Value:
Controller Value:
Outdoor Temperature Sensor Offset Entered:
Comments:
 Configure Date/Time
Controller Time:
Controller Timezone:
Comments:
 Verify Unit Configuration
Comments:
 Modify BACnet ® Settings Per Site Requirements
BACnet Communication:  Required  Not Required
Communication Type:  MS/TP  IP
Instance ID:
Baud Rate:
MAC Address:
Max Master:
Comments:
DCV Minimum Economizer Positions/CFM:
Vent:
Cooling Low:
Cooling High:
Heating Low:
Heating High:
 Create Site Parameter Export File Once Controller
Configuration is Finalized
Export File Name:
Comments:
