Modify Tcp/Ip Settings; View Active Alarms; Test And Balance - Daikin iLINQ Quick Start Manual

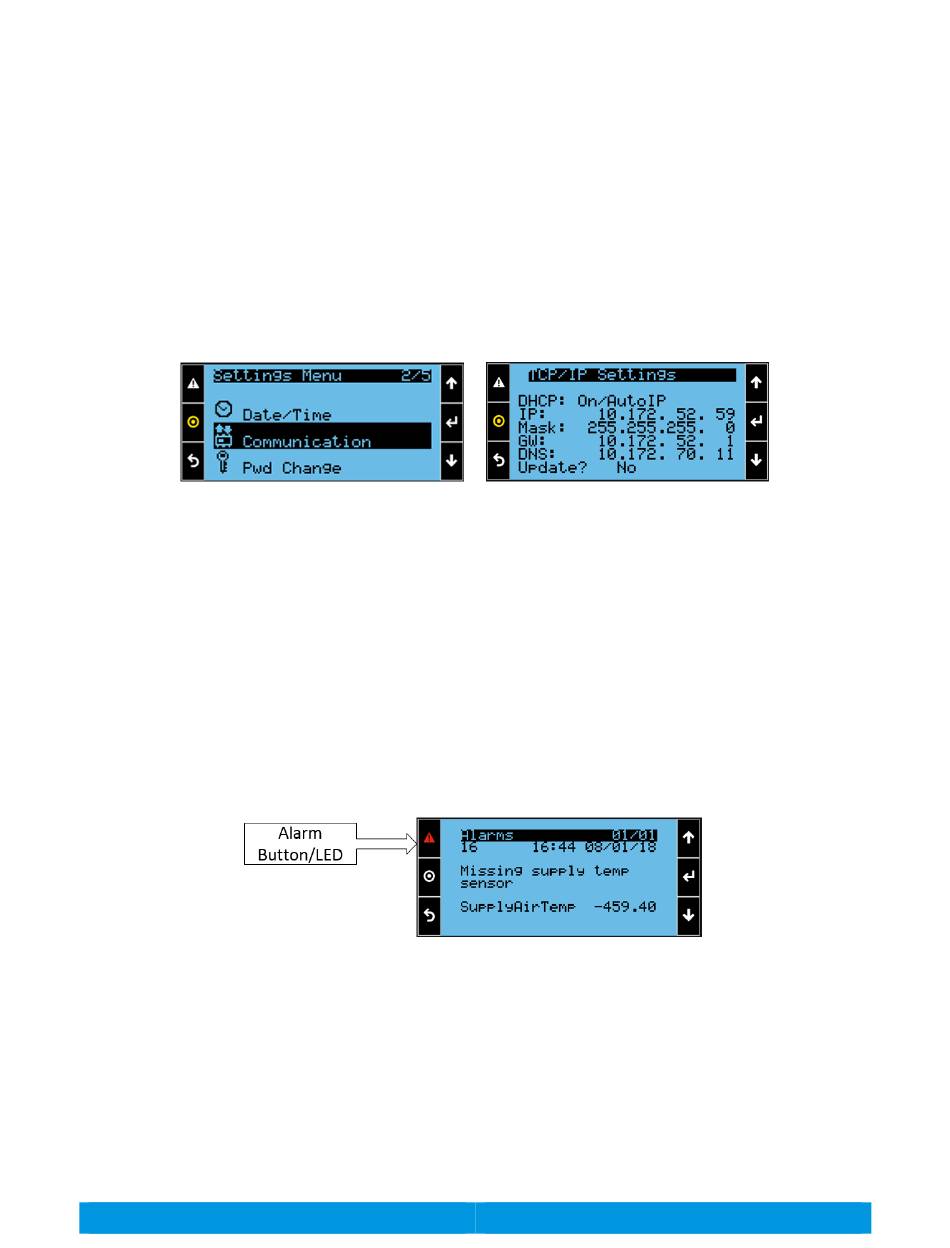

Modify TCP/IP Settings

If the controller is to be connected to a TCP/IP network, the TCP/IP settings must be provided
by the network administrator. From the Main Menu, navigate to Settings and press ENTER.
Navigate to the Communication option and press ENTER to view and modify the TCP/IP
settings. Set the DHCP setting value to On/AutoIP if the network will automatically assign IP
addresses to connected devices. If a static IP address is used, enter the appropriate IP
Address, Subnet Mask, Default Gateway, and DNS Address settings. The updated TCP/IP
settings do not become effective until the controller application is restarted. Restart the
controller by setting the Update value to Yes and pressing ENTER.

View Active Alarms

If the controller detects an abnormal condition such as a missing sensor or that the economizer
damper actuator is disconnected, an alarm is generated and can be viewed through the
onboard display. The LED at the ALARM button illuminates red when there is an active alarm.
View any active alarms by pressing the ALARM button and using the UP and DOWN buttons to
scroll if there is more than one active alarm. Each alarm provides a brief description of the alarm
and up to two related values that were logged at the time that the alarm was generated to help
determine the cause of the alarm. Once the cause of the alarm has been corrected, the alarm is
cleared and the unit resumes normal operation. If the alarm requires a manual reset, press and
hold the ALARM button for 3 seconds to clear the alarm.

Test and Balance

During startup, commissioning, or troubleshooting of the unit, it may be necessary to force the
controller into a certain operating mode so that equipment operation can be verified. From the
Main Menu, navigate to Test/Balance and press ENTER to view the Force Mode screen. Force
Mode allows the user to select from a set of predefined modes. Depending on the Force Mode
selected, the controller commands the necessary outputs based on the unit configuration. In
DAIKIN ILINQ QUICK START GUIDE 11
