Using the Web Interface

PC Configuration

To view the web interface, the PC being used and the controller must be configured to be on the
same TCP/IP network. The controller default IP address is 192.168.1.16 and the default Subnet
Mask is 255.255.255.0. If the TCP/IP settings have been modified, the PC configuration settings
needed to connect to the controller will be different than the example given here.

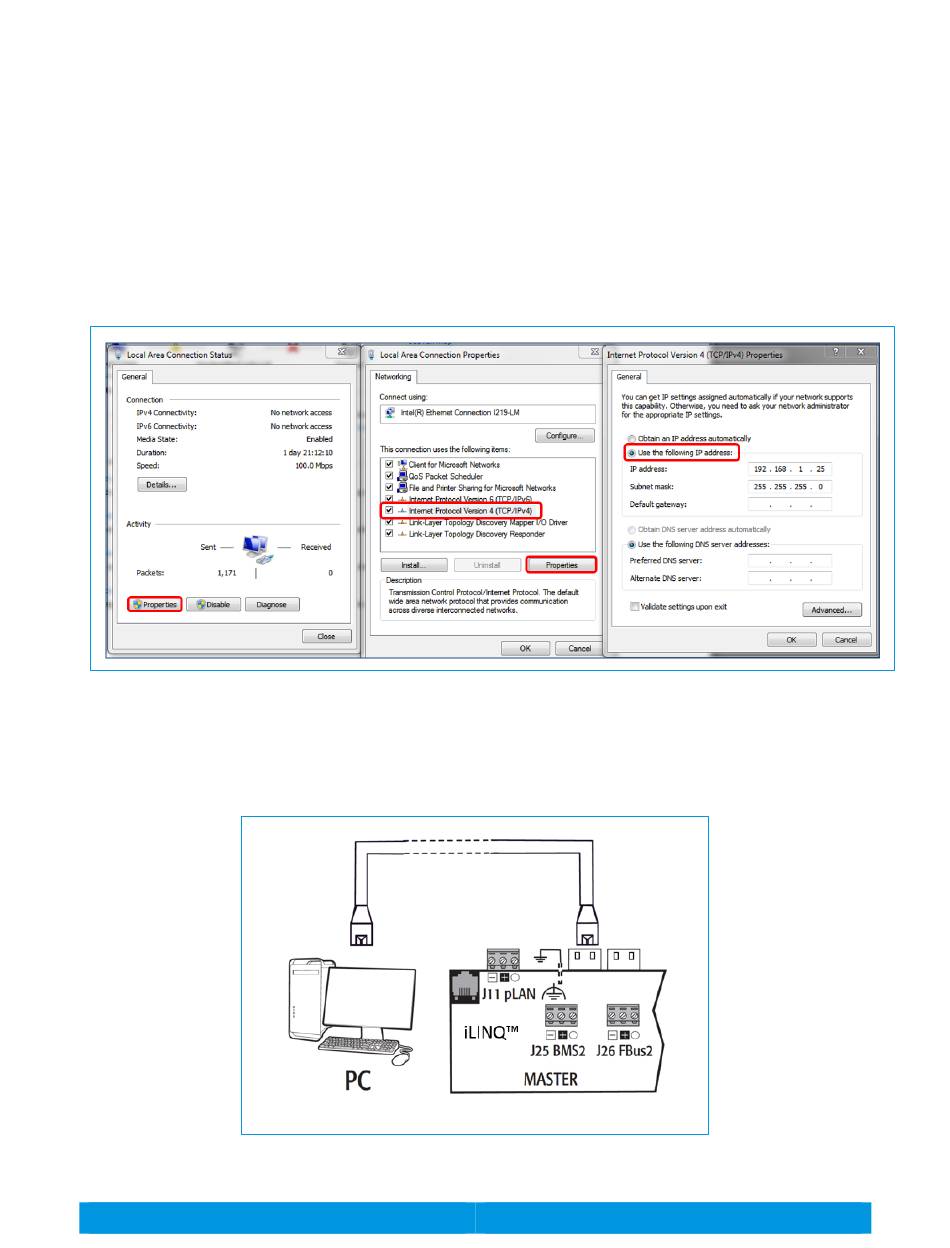

Connect an Ethernet cable between the PC and the controller using one of the two available
controller Ethernet ports. Modify the computer's network settings so the IP address is in the
range: 192.168.1.1 to 192.168.1.254 (excluding 192.168.1.16 which is used by the controller).
The Subnet Mask should be set to 255.255.255.0 and the Default Gateway can be left un-
configured.
DAIKIN ILINQ QUICK START GUIDE 14
