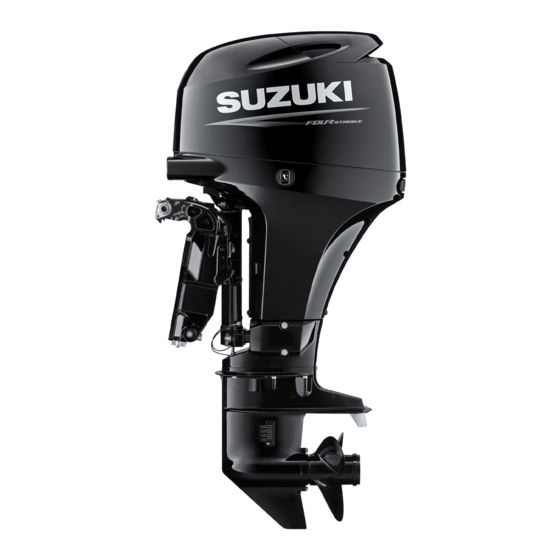

DF40A/50A/60A (110001 and later)
This SUPPLEMENTARY SERVICE MANUAL is a supplement to SUZUKI DF60A SERVICE MANUAL.
It has been prepared exclusively for the following models.
Applicable model and effective serial No.:
DF40AT/QH (04003F-110001 and Later)
DF40AST (04004F-110001 and Later)
DF50AT/TH (05003F-110001 and Later)
DF60AT/TH/QH (06002F-110001 and Later)
This supplementary service manual describes only service information which differ from that of the main man-
ual. Therefore, whenever servicing the above applicable model, consult this supplementary service manual first.
And for any section, item or description not found in this manual, refer to the main manual below.
Main Manual:
Manual Name
DF60A SERVICE MANUAL
Other information considered as generally known is not included.
Read the GENERAL INFORMATION section to familiarize yourself with the outboard motor and its maintenance.
Use this section as well as other sections to use as a guide for proper inspection and service.
This manual will help you to know the outboard motor better so that you can assure your customers of fast and
reliable service.
* This manual has been prepared using the latest information available at the time of publication.
Differences may exist between the content of this manual and the actual outboard motor.
* Illustrations in this manual are used to show the basic principles of operation and work procedures and
may not represent the actual outboard motor in exact detail.
* This manual is intended for use by technicians who already possess the basic knowledge and skills
to service SUZUKI Outboard motors.
Persons without such knowledge and skills should not attempt to service Suzuki Outboard engines
by relying on this manual only and should contact an authorized SUZUKI Outboard motor dealer.
© COPYRIGHT SUZUKI MOTOR CORPORATION 2010
FOREWORD
DF40A/50A/60A (110001 and later)
Manual No.
99500-88L00-01E
5
