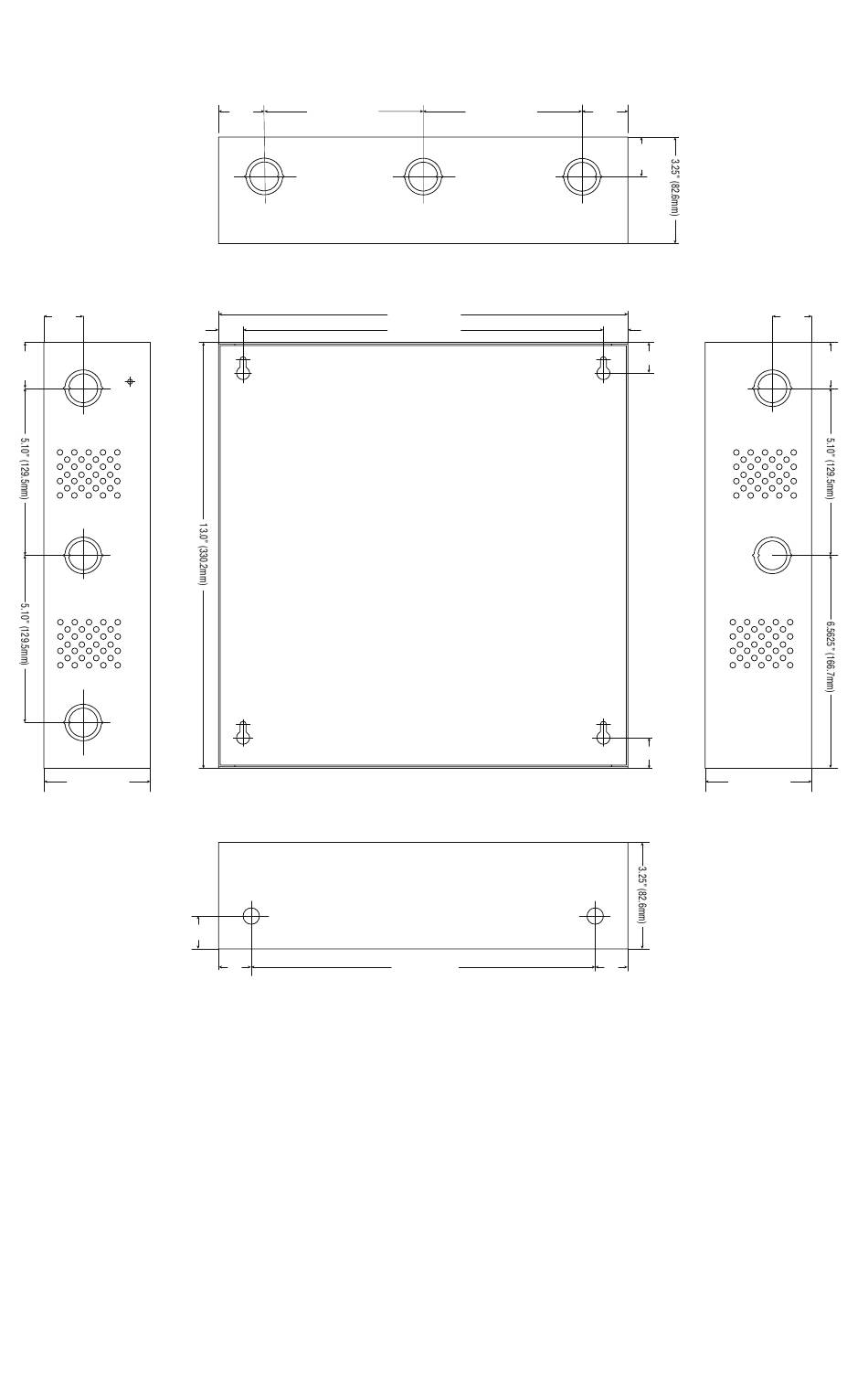

Mechanical Drawing and Dimensions (H x W x D approx.):
1.20"
(30.5mm)
1.40"
(35.6mm)
3.25" (82.6mm)
1.0" (25.4mm)
NetWaySP4 Series Installation Guide
13.5" x 13" x 3.25" (342.9mm x 330.2mm x 82.6mm)
1.40"
4.85" (123.2mm)
(35.6mm)
0.75"
(19.1mm)
1.0"
(25.4mm)
NetWaySP4X
4.85" (123.2mm)
12.5" (317.5mm)
11.0" (279.4mm)
10.5" (266.7mm)
1.40"
(35.6mm)
1.20"
(30.5mm)
0.75"
(19.1mm)
0.9375" (23.8mm)
0.9375" (23.8mm)
3.25" (82.6mm)
1.0"
(25.4mm)
1.20"
(30.5mm)
1.40"
(35.6mm)
