Altronix Netway Spectrum NetWaySP4 Series Installation Manual page 11

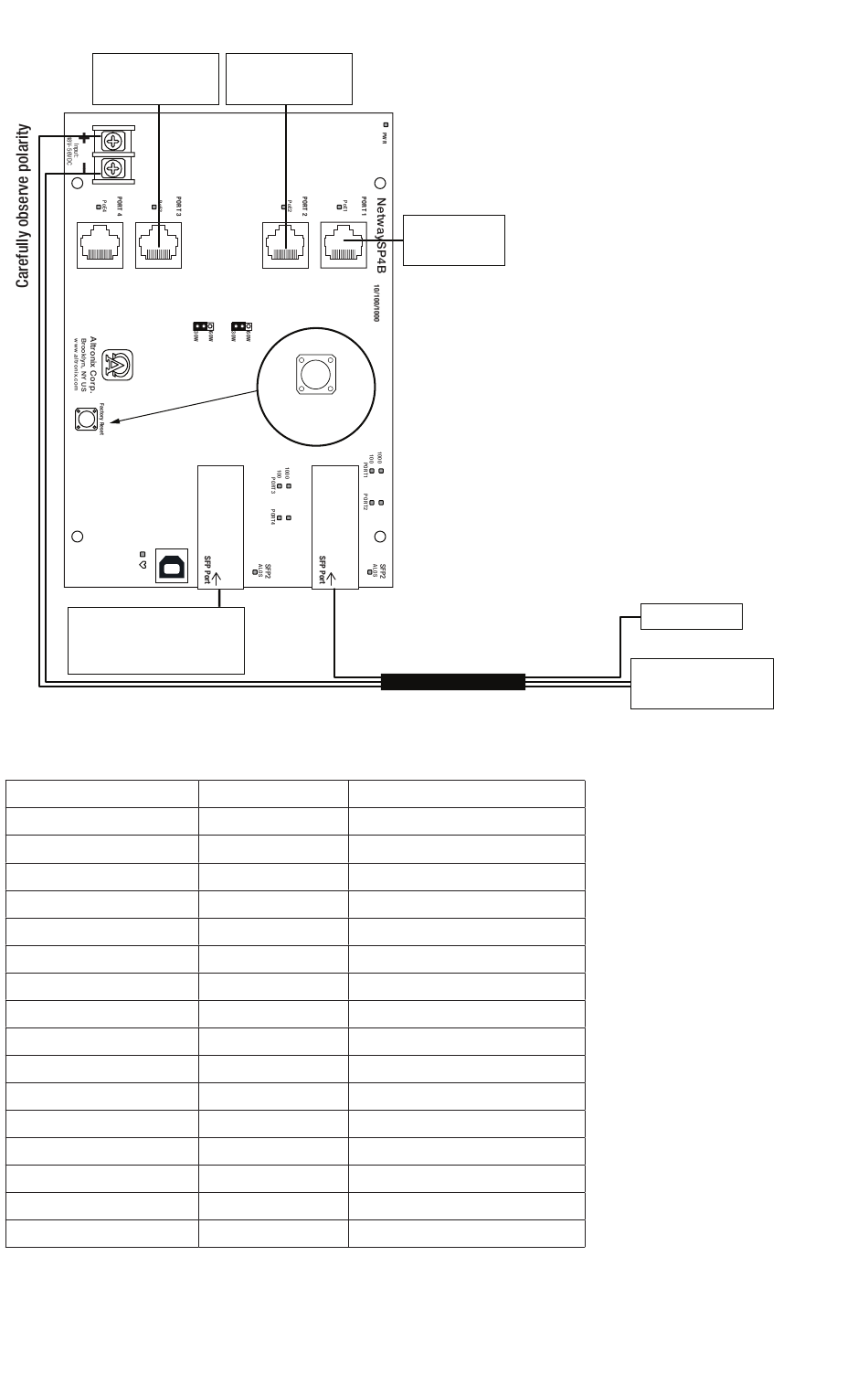

Fig. 6 - NetWaySP4WPN – Typical Application with Composite Cable
PoE/PoE+
or Hi-PoE Device
Fiber to the next
Netway Spectrum
Hardened PoE Switch
Power Distance Chart
Power Requirements
15W
30W
45W
60W
75W
90W
105W
120W
15W
30W
45W
60W
75W
90W
105W
120W
Estimated distances based on starting voltage of 56VDC and accounts for a 10 volt drop.
All distances are per IEEE 802.3at standard for device power requirements of minimum
44VDC and leave an approximate 2 volts for safety and flexibility.
NetWaySP4 Series Installation Guide
PoE/PoE+
or Hi-PoE Device
PORT 3 PORT 2
Factory Reset
Power Cabling
12/2
12/2
12/2
12/2
12/2
12/2
12/2
12/2
16/2
16/2
16/2
16/2
16/2
16/2
16/2
16/2
IP PoE/PoE+
Device
Composite Cable
Maximum Distance (ft./m)
11,162' / 3403m
5,581' / 1702m
3,767 / 1,148m
2,739' / 835m
2,249' / 686m
1,872' / 571m
1,607' / 490m
1,408' / 429m
4,415' / 1,346m
2,207' / 673m
1,490' / 454m
1,083' / 330m
889' / 271m
740' / 226m
635' / 194m
557' / 170m
Fiber Switch
48-55V UL Listed
ITE Power Supply
Carefully observe polarity
- 11 -
