Hitachi NEXT Series Instruction Manual page 40

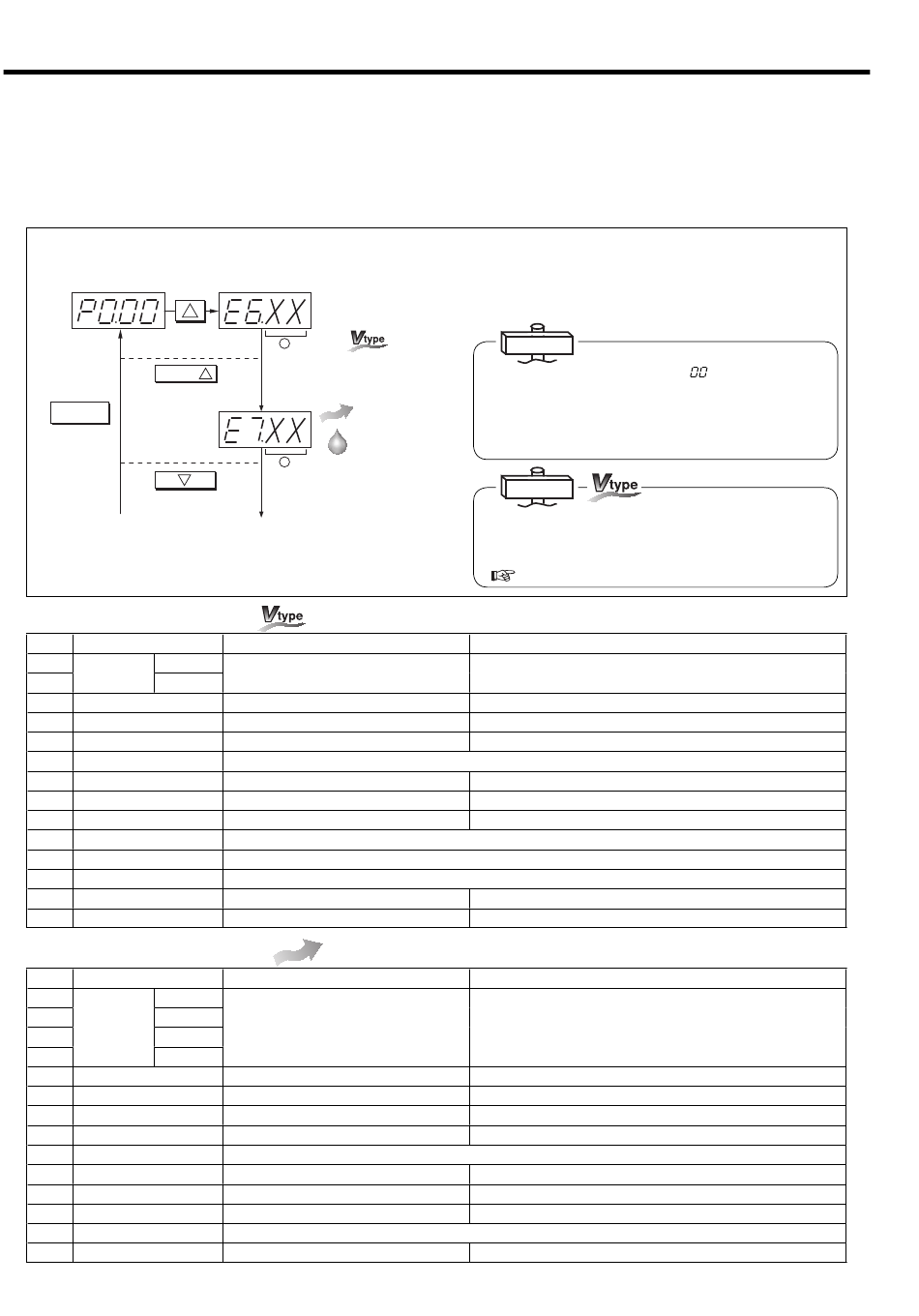

4. TROUBLESHOOTING [Protective Device]
■ How to Identify the Failure Cause of E0.13 (DCBL controller Error) and E0.57 (Fan
Inverter Error) and Check the History
Note : DCBL controller is equipped with Vtype.
Fan inverter is equipped with air-cooled type.
Discharge pressure display
SELECT/WIDE
1
Press 14 times.
SELECT/WIDE
Press once to go to
the next item.
RESET
Return to discharge
pressure display.
2
Press once to go to
the previous item.
(a) Controller shutdown code
Code Fault type
E01* Software
Overcurrent
E02* Hardware
E05 Overload
E07* Overvoltage
E09 Undervoltage
E10 CT error
E20 Temperature trip
E21 Temperature trip
E22* Communication error 1 Communication error in controller
E23* Gate array error
E24 Phase lacking
E30 IGBT error
E33 Communication error 2 Communication error between controller and PC board Electrical noise
E35 Main motor overheat
(b) Fan inverter shutdown code
Code Fault type
E01*
During constant speed
E02*
During deceleration
Overcurrent
E03*
During acceleration
E04* Other
E05 Overload
E07* Overvoltage
E08 EEPROM error
E09* Undervoltage
E11 CPU error
E14 Ground fault
E15 Overvoltage
E21 Temperature trip
E23 Gate array error
E60 Communication error
* Items subject for retry.
38
DCBL controller
shutdown history
a
1
Fan inverter
Air-Cooled
shutdown history
Water-Cooled
Not used
(display only)
b
To display of various settings
Detection
Activation of current protection circuit
Activation of electronic thermal
Excessive voltage of the converter
Voltage below the specifi ed level
CT error
Controller fan error
Overheat of cooling fi n
Gate array communication error
Phase lacking
Occurrence of instantaneous overcurrent
Excessive temperature of main motor
Air-Cooled
Detection
Activation of current protection circuit
Activation of electronic thermal
Excessive voltage of the converter
Error data of EEPROM
Voltage below the specifi ed level
Error of built-in CPU
Ground fault during power activation
Excessive voltage at no output
Temperature error
Gate array communication error
Communication error between inverter and PC board Disconnection of communication line, exogenous noise
① Press the SELECT/WIDE button 14 times. "E6." and "E7."
are shutdown history of DCBL controller.
② Press the RESET button. The indication on digital monitor
returns to discharge pressure display.
IMPORTANT
If the shutdown code "XX" is "
there is no shutdown history. Also, when anything
other than shutdown history is displayed without
shutdown resetting, the display is return to the latest
shutdown history in 3 minutes.
IMPORTANT
For the shutdown history of controller, only the most
recent shutdown is recorded. Shutdown history is
displayed in shutdown codes.
( See the shutdown code list in this page.)
Probable cause
Lock of main motor
Rapid acceleration/deceleration
Overload of main motor
Excessive voltage of power line
Reduction of receiving voltage, IPS
Reduction of controller fan revolution, disconnection of controller fan wiring
Cooling fi n, air intake hole, clogging of cooler, high ambient temperature
Electrical noise
Cooling fi n, air intake hole, clogging of cooler, high ambient temperature
Probable cause
Lock of fan motor
Rapid acceleration/deceleration
Overload of fan motor, restart immediately after stop
High receiving voltage
Exogenous noise, temperature increase
Low receiving voltage
Between output and fan motor
Receiving voltage is higher than specifi ed.
Cooling fi n, air intake hole, clogging of cooler, high ambient temperature
," it indicates that
