Hitachi NEXT Series Instruction Manual page 11

DSP-45/55/75WTN
Water-Cooled
DSP-55/75VWTN

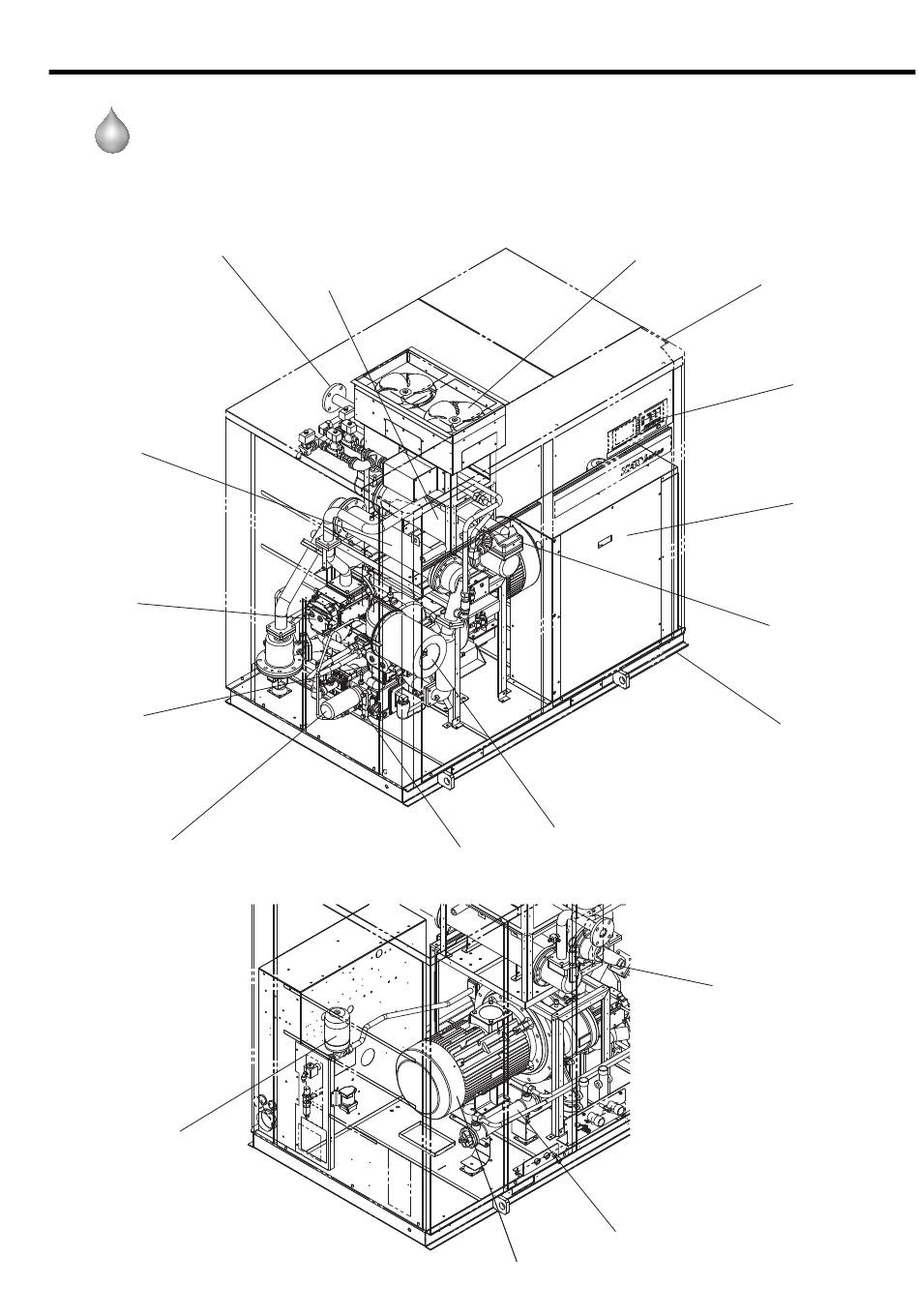

[Front View]
Discharge pipe
(Compressed air discharge)
Intercooler
2nd-stage
Airend
1st-stage
Airend
Oil filter
[Rear View]
Oil mist remover
(OMR)
Aftercooler
Oil level gauge
2. GENERAL DESCRIPTION [Components]
Cooling fan
Air intake filter
Oil cooler
Main motor
Enclosure
Instrument panel
Control panel
Check valve
Common Base
Air relief valve
