Hitachi NEXT Series Instruction Manual page 119

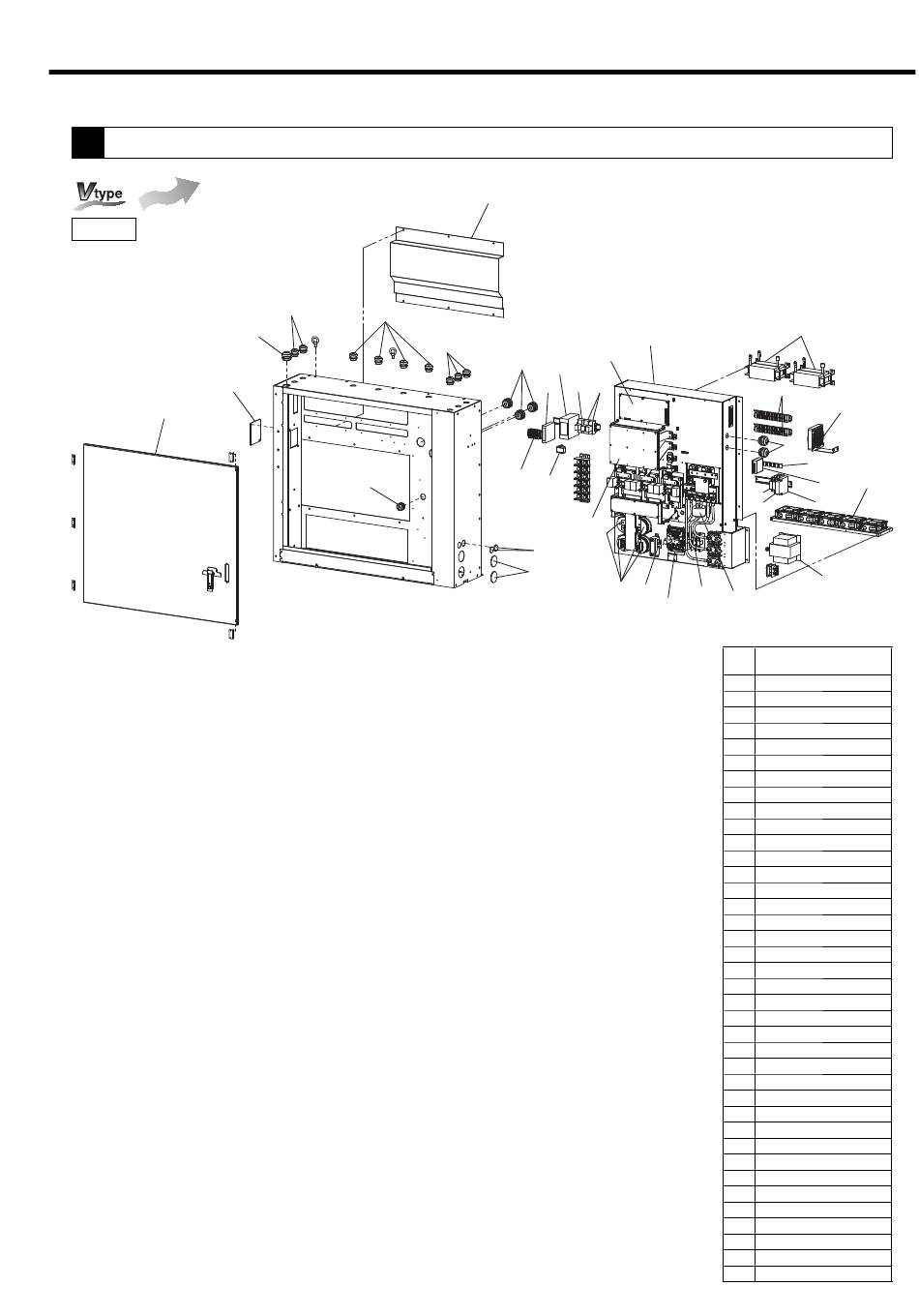

Control Panel
8
Air-Cooled
75 kW
G06
G07
F73
B44
G04
G04
G05
G05
G04
G05
G04
G05
E18
E10
G09
745
G08
G17
G13
G14
G15
705
E09
706
707
E06
E47
E45
E07
J15
11. PARTS LIST
753
D06
G06
G07
D10
G16
G19
D73
G20
D75
G21
708
J14
Ref.
Description
No.
700 Control Panel
705 Fuse (1A)
706 Fuse (1.25A)
707 Fuse (1.6A)
708 Current Transformer
745 PC Board
753 DC Reactor (1)
B44 Door, Control Box
D06 Terminal Block (2)
D10 Surge Absober
D12 Cooling Fan
D73 Reversed Phase Relay
D75 Transformer
E04 Controller Fan (1), DCBL Controller
E06 Power Printed Circuit Board
E07 Smoothing Condenser
E09 Line Noise Filter
E10 DCBL Controller
E18 Cover, Fin (1)
E45 Rubber Bush
E47 Rubber Bush
F73 Cover, Fin (2)
G04 Conduit Nut
G05 Conduit
G06 Conduit Nut
G07 Conduit
G08 Conduit Nut
G09 Conduit
G13 Relay MY2N
G14 Relay MY4N
G15 AVR 60W
G16 AVR 10W
G17 AVR 90W
G19 Circuit Breaker
G20 Fuse (4A)
G21 Fuse (10A)
J14 Inverter, Cooling Fan
J15 Communication Board
D12
E04
117
