Installing a Compact Switch

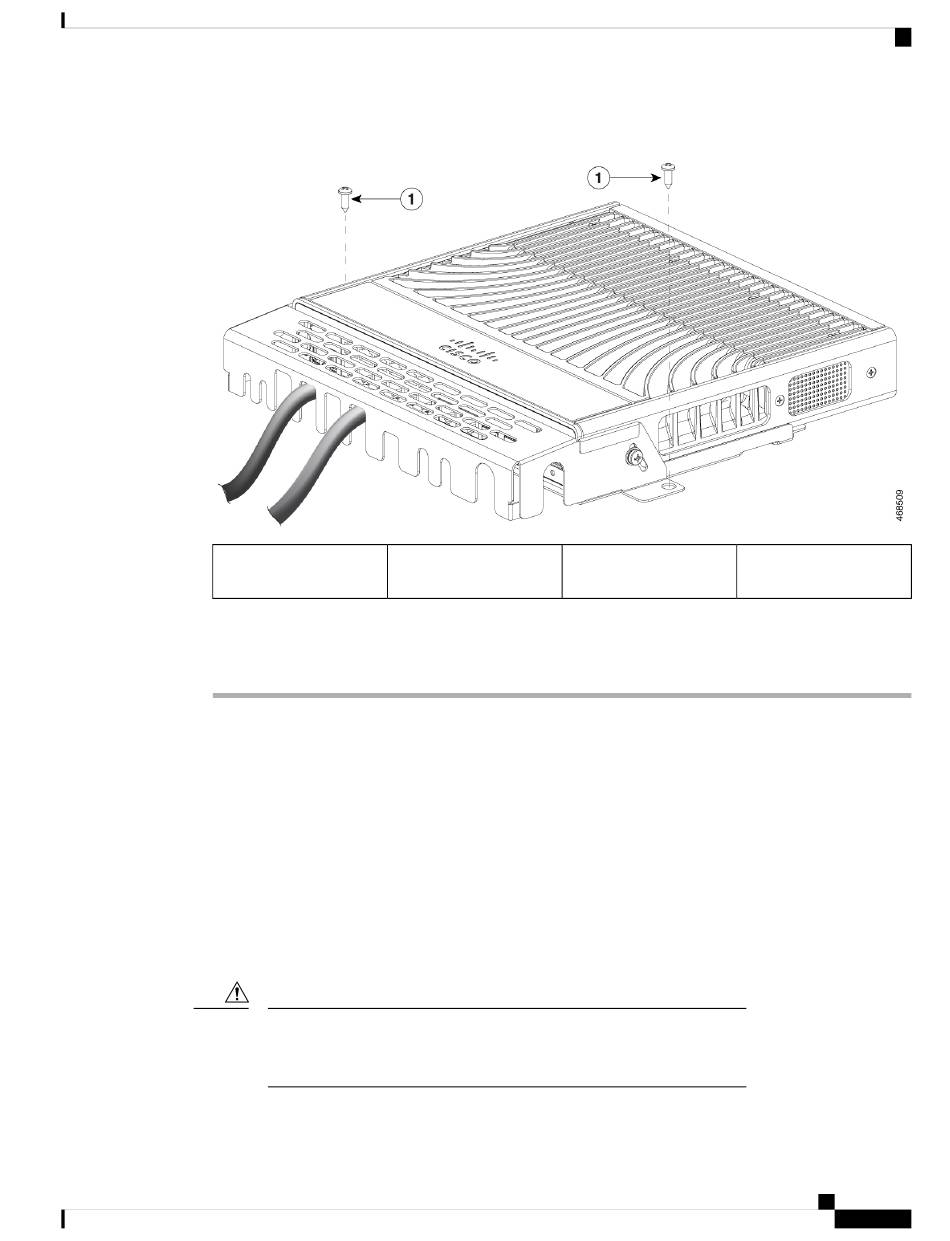

Figure 29: Switch with Cable Guide Installed
1
Step 5 (Optional) To attach the cable guard to the desk or wall, use a 0.144-inch (3.7 mm) or a #27 drill bit to drill
holes 1/2-inches (12.7 mm) deep at each of the two mounting locations. Insert the supplied 0.5 in. (12.7 mm)
number-8 Phillips wood screws and tighten them.

Installing an SFP or SFP+ Module

Before you begin
When installing SFP or SFP+ modules, observe these guidelines:
• Do not remove the dust plugs from the modules or the rubber caps from the fiber-optic cable until you
• To prevent ESD damage, follow your normal board and component handling procedures when connecting
Caution
Two 8-18 Phillips
pan-head screws
are ready to connect the cable. The plugs and caps protect the module ports and cables from contamination
and ambient light.
cables to the switch and other devices.
Removing and installing an SFP or SFP+ module can shorten its useful life.
Do not remove and insert any module more often than is absolutely
necessary.
Cisco Catalyst 9200CX Compact Series Switches Hardware Installation Guide

Installing an SFP or SFP+ Module

- -
45
