Installing a Compact Switch
• Power adapter bracket (C9K-ADPT-BRKT-12T)
• One 8-18 Phillips pan-head screws
• Two M3x6mm pan head screw
• Phillips screwdriver
Procedure
Step 1
Attach the power adapter bracket to the rear side of the mounting tray or the DIN rail mount using the two
M3 x 6 mm Phillips pan head screws provided.

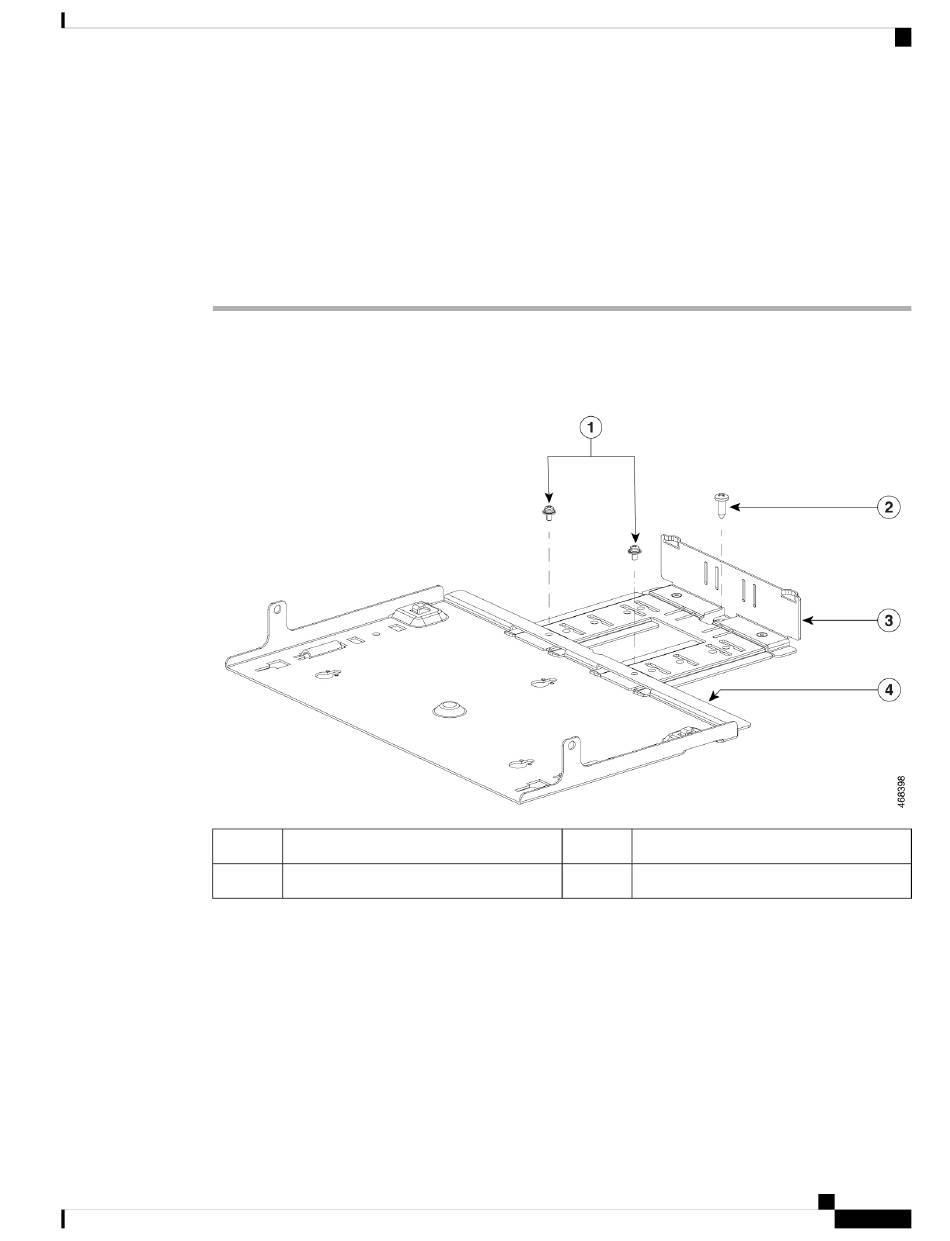

Figure 21: Attaching the Power Adapter Bracket
1
2
Note
Step 2 Thread the velcro straps through the slots on the adapter bracket that corresponds to the size of the adapter.
You can thread the strap based on the size of the power adapter. The following illustration displays some
examples.
M3 x 6 mm Phillips pan head screws
8-18 x 0.5" Phillips pan head tapping screw
The power adapter bracket cannot be used without a mounting tray or a DIN rail mount.
Cisco Catalyst 9200CX Compact Series Switches Hardware Installation Guide
Attaching the Adapter Bracket to the Switch (Optional)
3 Adapter bracket
4 Mounting tray
