Mounting the Switch on a DIN Rail

Procedure

Step 1

Place the DIN rail mount on the DIN rail, making sure that the top of the DIN rail mount clip hooks over the

top of the DIN rail.

Step 2

Sliding the release tab downwards, hook the clip on to the rail and release the tab until the rail mount clip

locks into place with a click.

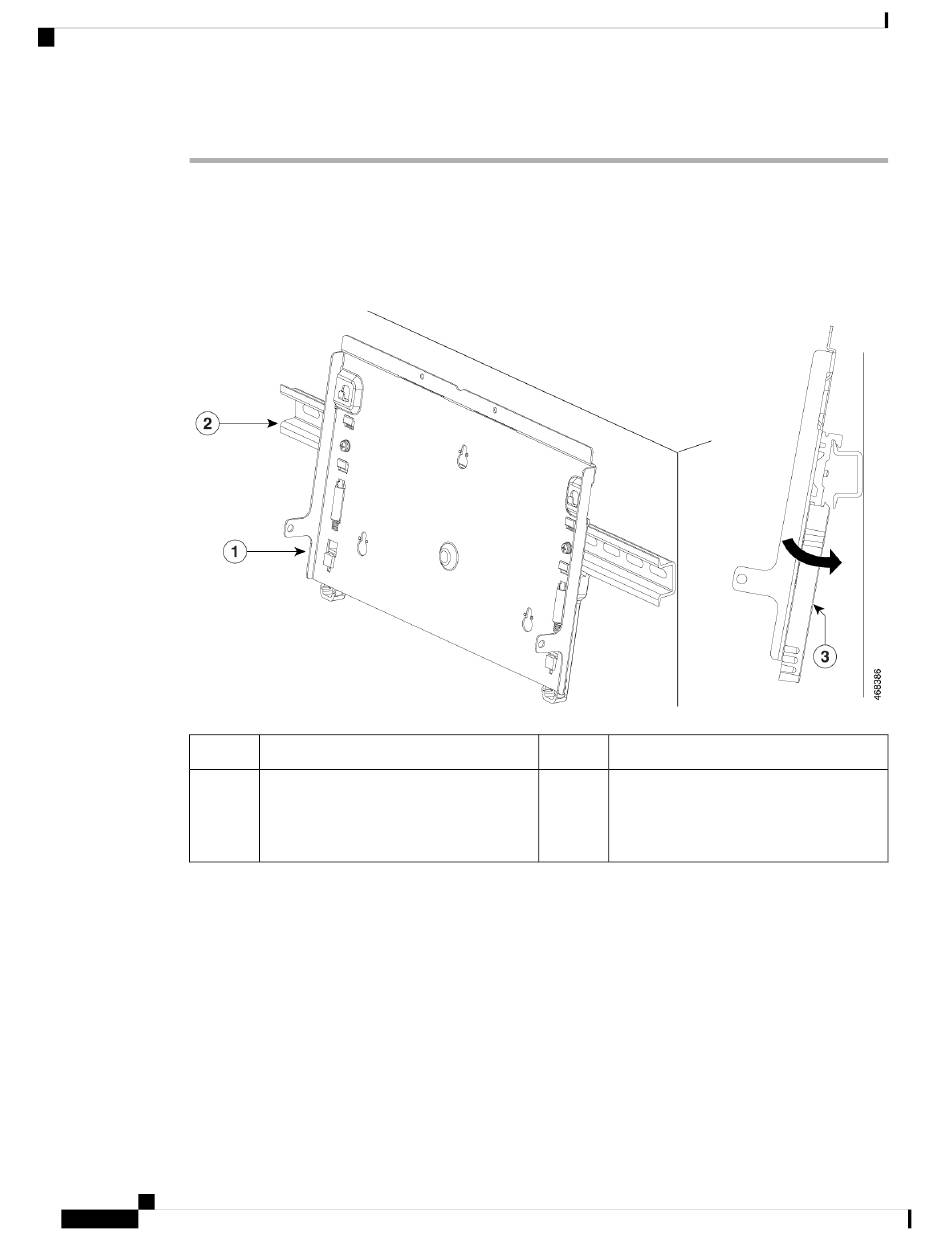

Figure 17: Attaching the DIN Rail Mount to the DIN Rail

Step 3

Place the switch on to the DIN rail mount and secure it using the two 10-32 Phillips pan-head screws.

Cisco Catalyst 9200CX Compact Series Switches Hardware Installation Guide

DIN rail mount

DIN rail

Note

Note that the DIN rail is not

part of the DIN Rail Mount kit.

Release tab

Installing a Compact Switch
