Mounting using the Mounting Tray and Screws

Note
Warning
Step 3
Place the switch on the desk or the shelf.
Mounting using the Mounting Tray and Screws
You can use the mounting tray to secure the switch on to a desk or a wall. The illustrations in this procedure
shows how to mount the switch on a desk. You can follow similar procedure to mount the switch on a wall.
Caution
Note
Before you begin
Ensure you have the following items before starting the procedure.
• Mounting tray (C9K-WALL-TRAY)
Cisco Catalyst 9200CX Compact Series Switches Hardware Installation Guide
24

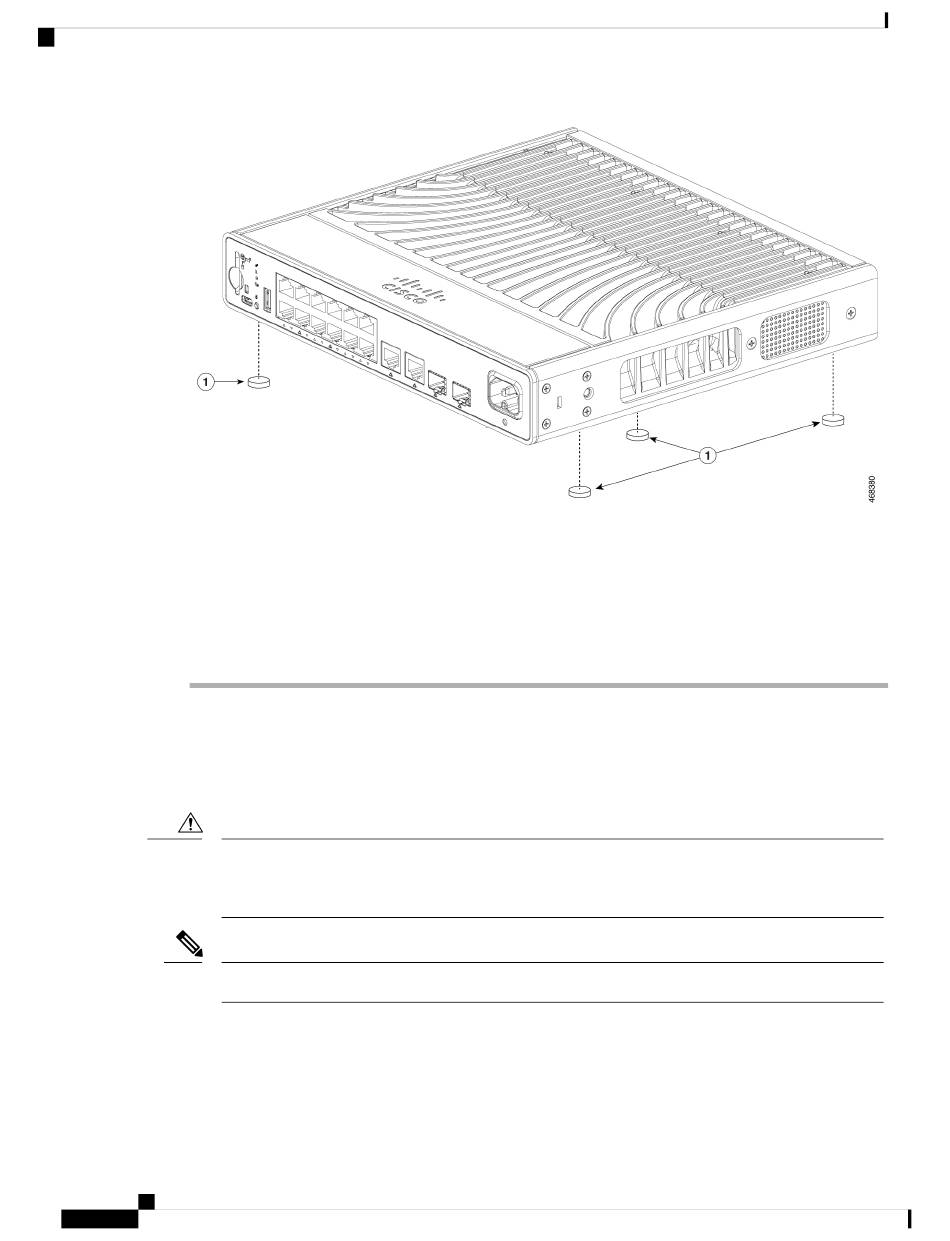

We strongly recommend that you attach the rubber feet to the specified location and place the side
of the switch with Cisco logo facing upwards. Doing so helps prevent airflow restriction and
overheating.
To prevent airflow restriction, allow clearance around the ventilation openings to be at least 3 inches
(7.6 cm). Statement 1076
Do not wall-mount the switch with its front panel facing up. Following safety regulations, wall-mount
the switch with its front panel facing down or to the side, to allow sufficient airflow and to provide easier
access to the cables.
To avoid thermal issues, do no use this mounting method for under-table scenarios.
