Mounting using the Mounting Tray and Magnet
• Phillips screwdriver
Procedure
Step 1
Place one side of the magnet against the bottom of the mounting tray.

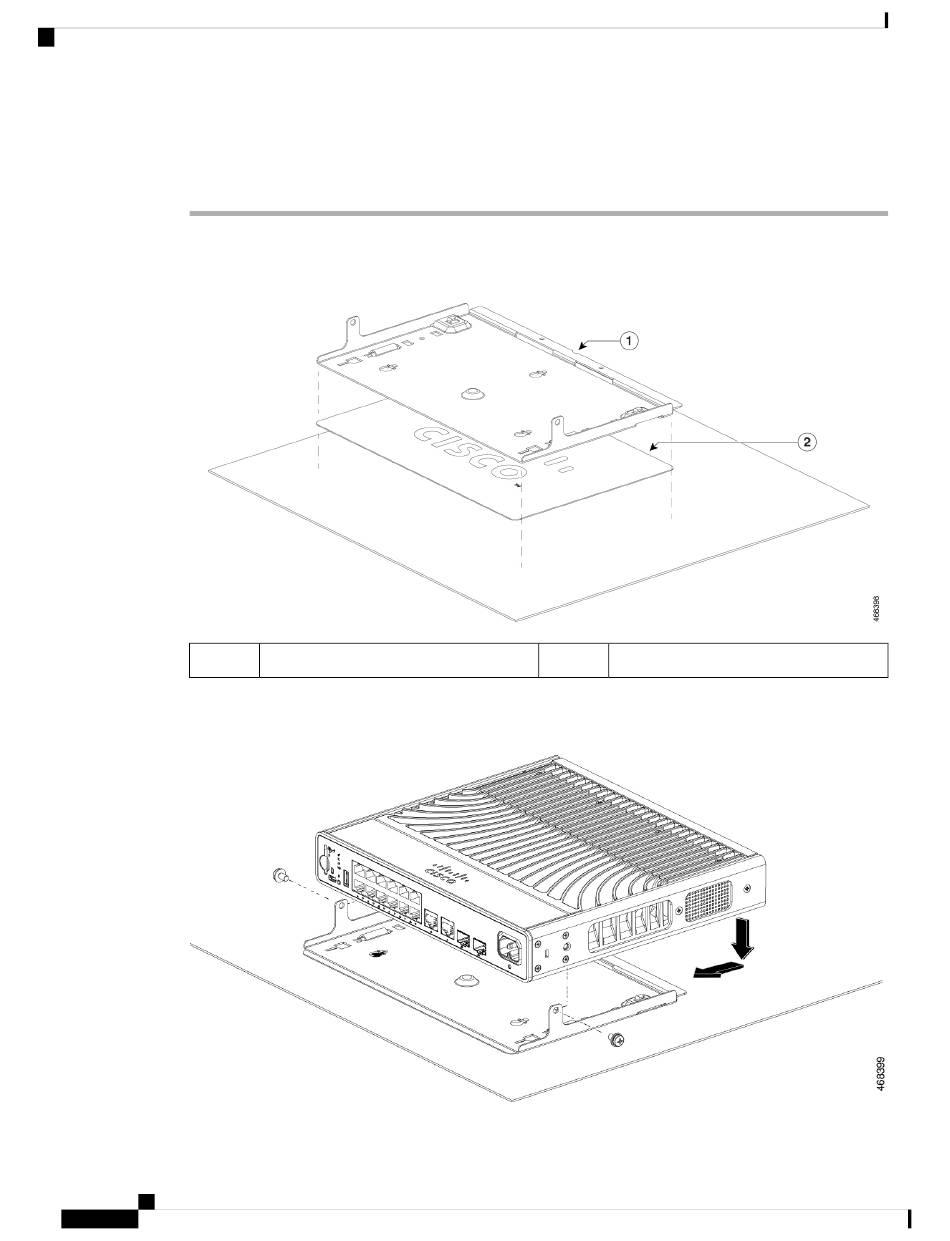

Figure 8: Placing the Mounting Tray on the Magnet
1
Step 2
Place the switch on the mounting tray and secure it using the two 10-32 Phillips pan-head screws.
Figure 9: Securing the Switch to the Mounting Tray
Cisco Catalyst 9200CX Compact Series Switches Hardware Installation Guide
28
Mounting tray
2
Magnet
Installing a Compact Switch
