Installing a Compact Switch
1
Step 3 Slide the switch slightly forward after placing on to the mounting tray so that the mounting tray hooks engage
with the switch.

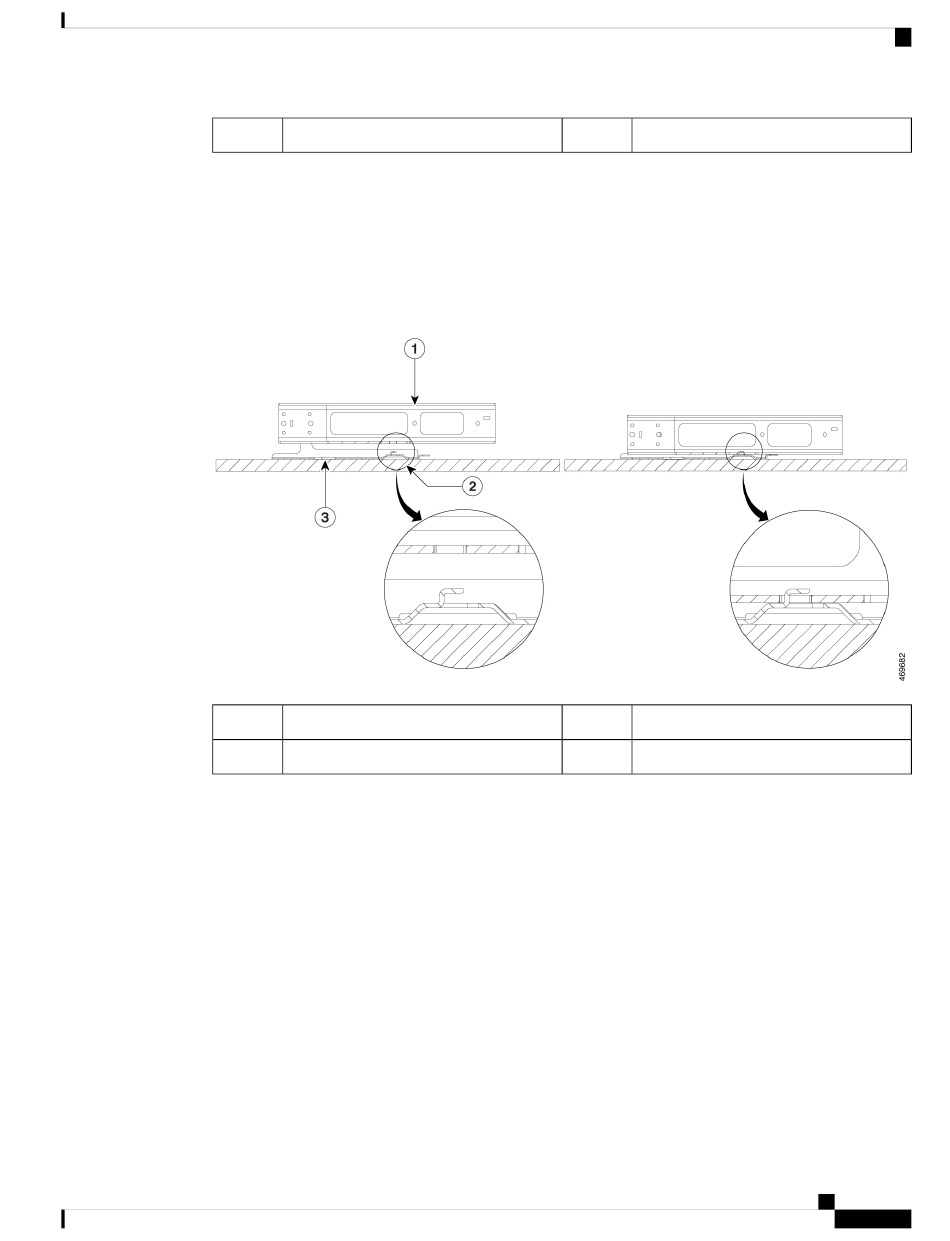

Figure 10: Aligning the Mounting Tray Hooks with the Switch
1
2
Step 4 Mount the magnet and the switch on a metal surface.
Warning
Caution
Warning
Two 10-32 Phillips pan-head screws
Switch
Mounting tray hook
Read the wall-mounting instructions carefully before beginning installation. Failure to use the correct
hardware or to follow the correct procedures could result in a hazardous situation to people and
damage to the system. Statement 378
Do not wall-mount the switch with its front panel facing up. Following safety regulations, wall-mount
the switch with its front panel facing down or to the side, to allow sufficient airflow and to provide
easier access to the cables.
To prevent airflow restriction, allow clearance around the ventilation openings to be at least: 3 in.
(7.6 cm) Statement 1076
Cisco Catalyst 9200CX Compact Series Switches Hardware Installation Guide
Mounting using the Mounting Tray and Magnet
- -
3 Mounting tray
- -
