Switch LEDs
4

PD Power LED

The PD Power LED indicates the status of the additional LED under the PD port of C9200CX-12T.

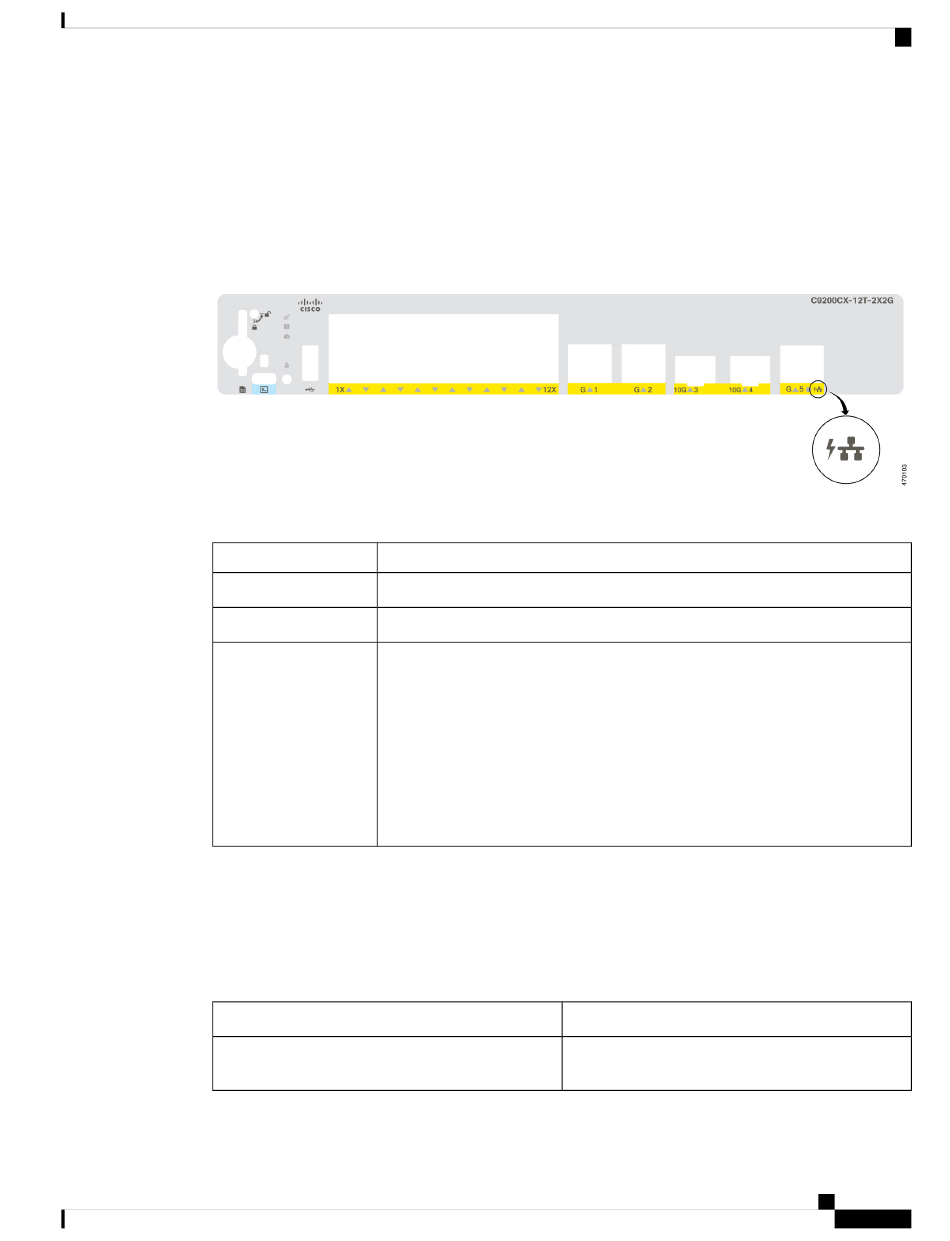

Figure 31: PD port LED on C9200CX-12T
Table 12: PD Power LED
Color
Off
Green
Amber

Beacon LED

The beacon LED on the front panel of the switch can be turned on by the administrator to indicate that the
switch needs attention. It helps the administrator identify the switch. The beacon can be turned on by either
pressing the button on the switch front panel, or by using the CLI.
Color/State
Solid blue
Only switches with PoE or PoE+ ports.
Description
PD power is not active.
System is powered by PD power.
System has detected and classified PD power that is insufficient to power the
system.
Note
Cisco Catalyst 9200CX Compact Series Switches Hardware Installation Guide
• The LED glows amber to indicate a host PSE system in 802.3at
mode where Class 6 Single Signature PD is not detected.
• UPOE+ system, if using 802.3bt mode, can power up the system.
• Auxiliary power input is of high priority and will be used, if
available.
Description
The operator has indicated that the system needs
attention.

PD Power LED

59
