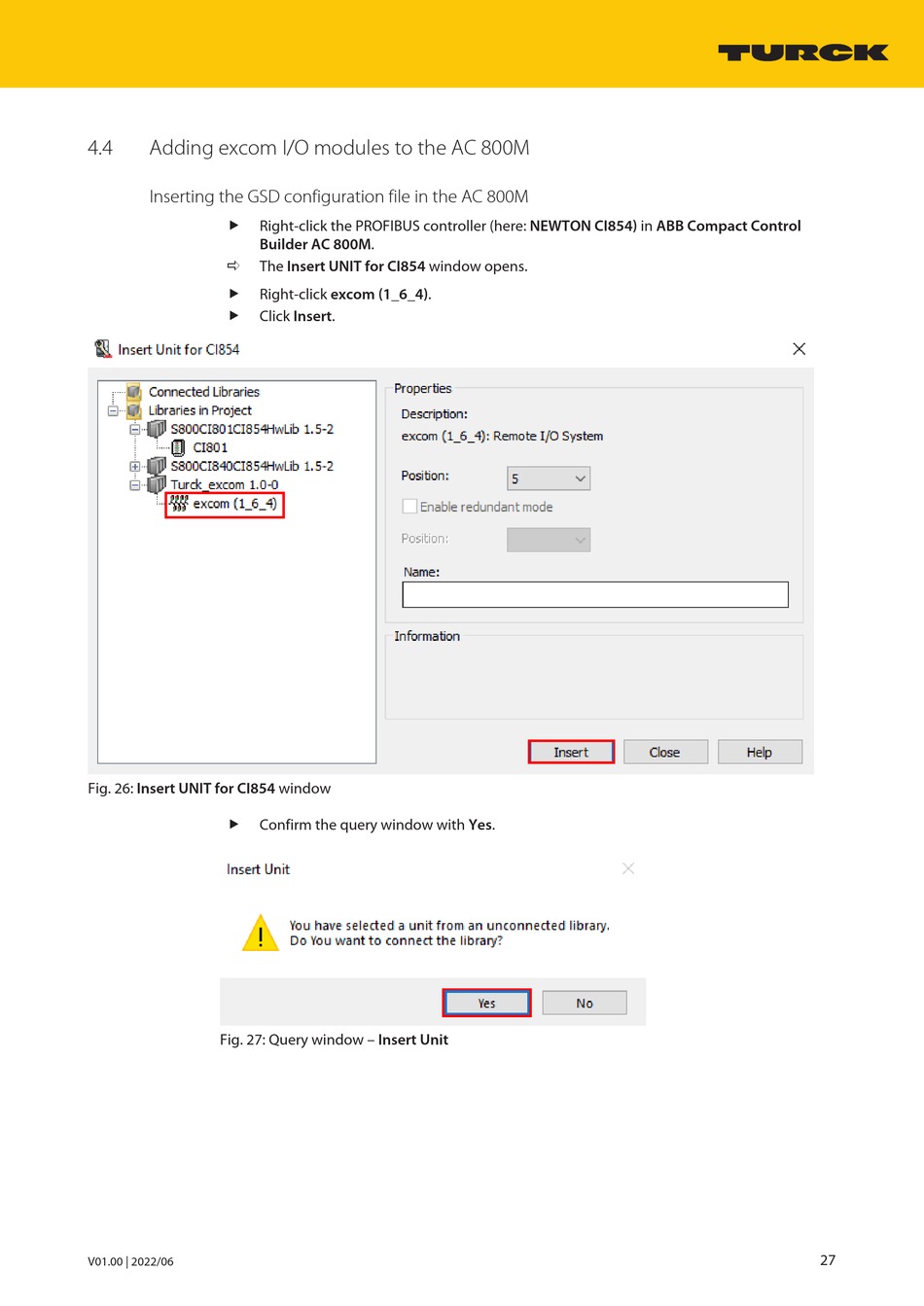

4.4

Adding excom I/O modules to the AC 800M

Inserting the GSD configuration file in the AC 800M
„ Right-click the PROFIBUS controller (here: NEWTON CI854) in ABB Compact Control
Builder AC 800M.
a The Insert UNIT for CI854 window opens.
„
Right-click excom (1_6_4).
„ Click Insert.
Fig. 26: Insert UNIT for CI854 window
„ Confirm the query window with Yes.
Fig. 27: Query window – Insert Unit
