Integrating an excom system in ABB Compact Control Builder M
Defining the GSD signal
4.3.2 GSD signals – setting diagnostics
„ Select ChannelDiagCommon in the left sidebar in PROFIBUS GSD file import –
Diagnostics settings window at excom (1_6_4).
„ Tick Enable diagnostics, Use identifier area for module diagnostics and Map device
related diagnostics to module diagnostics on the right.
„
If the Diagnostics pattern confirmation/edit appears, use the default settings and click
OK.

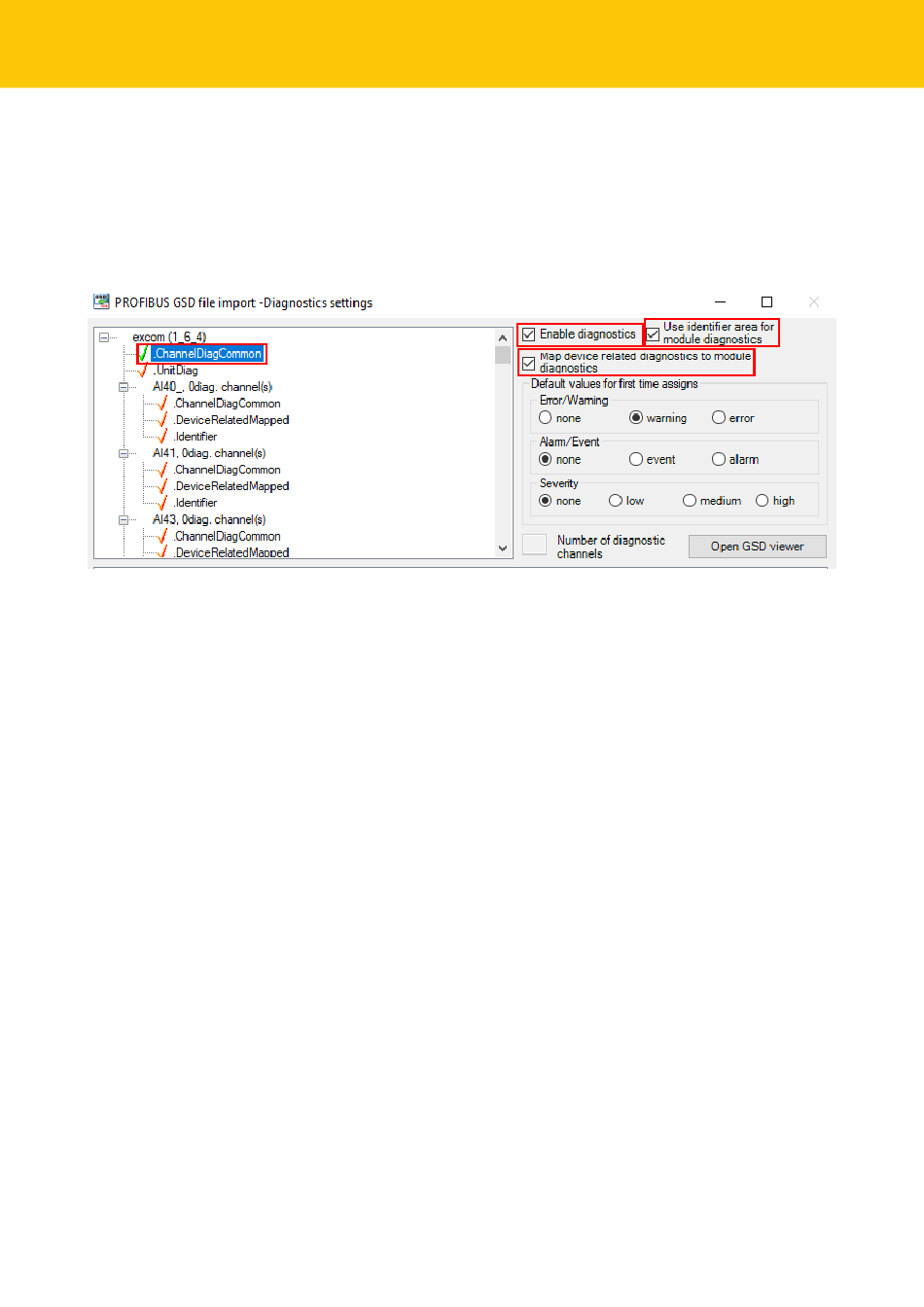

Fig. 23: PROFIBUS GSD file import – Diagnostics settings
