excom-RMD1-BU
Wiring Diagram
x1
x2
x3
x4
DE
Kurzbetriebsanleitung
Widerstandsmodul excom-RMD1-BU
Weitere Unterlagen
Ergänzend zu diesem Dokument finden Sie im Internet unter
www.turck.com
folgende Unterlagen:
■
Datenblatt
■
Handbuch excom – Remote I/O für eigensichere Stromkreise
■
EU-Konformitätserklärung (aktuelle Version)
Zu Ihrer Sicherheit
Bestimmungsgemäße Verwendung
Das Gerät ist nur zum Einsatz im industriellen Bereich bestimmt.
Das Widerstandsmodul ist ein einfaches elektrisches Betriebsmittel nach
EN 60079-14 und darf nur innerhalb des I/O-Systems excom für eigensichere
Stromkreise mit den zuge lassenen Modulträgern MT... (PTB 00 ATEX 2194 U
bzw. IECEx PTB 13.0040 U) eingesetzt werden.
Das Widerstandsmodul unterdrückt Fehlermeldungen bei excom-Ein-
gangsmodulen im explosionsgefährdeten Bereich.
Jede andere Verwendung gilt als nicht bestimmungsgemäß. Für daraus
resultierende Schäden übernimmt Turck keine Haftung.
Allgemeine Sicherheitshinweise
■
Nur fachlich geschultes Personal darf das Gerät montieren, installieren,
betreiben und instand halten.
■
Die Geräte erfüllen ausschließlich die EMV-Anforderungen für den indus-
triellen Bereich und sind nicht zum Einsatz in Wohngebieten geeignet.
■
Nur Geräte miteinander kombinieren, die durch ihre technischen Daten
für den gemeinsamen Einsatz geeignet sind.
Hinweise zum Ex-Schutz
■
Bei Einsatz des Geräts in Ex-Kreisen muss der Anwender über Kenntnisse
im Explosionsschutz (EN 60079-14 etc.) verfügen.
■
Nationale und internationale Vorschriften für den Explosionsschutz
beachten.
■
Gerät nur innerhalb der zulässigen Betriebs- und Umgebungsbedingun-
gen (siehe Technische Daten) einsetzen.
Produktbeschreibung
Geräteübersicht

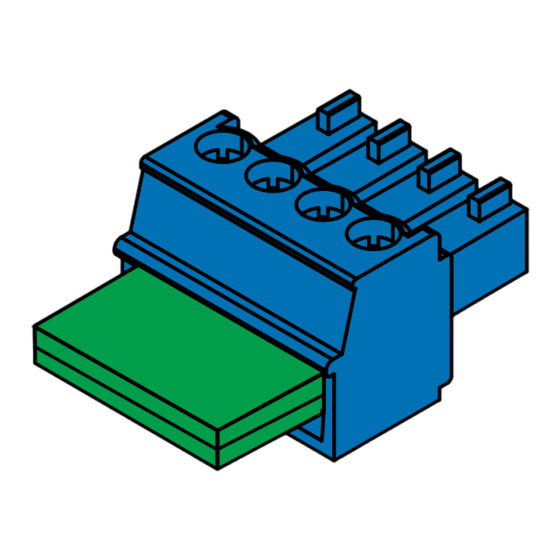

Siehe Abb. 1
EN
Quick Start Guide
Resistor module excom-RMD1-BU
Other documents
Besides this document, the following material can be found on the Internet
at www.turck.com:
■
Data sheet
■
excom manual — remote I/O for intrinsically safe circuits
■
EU declaration of conformity (current version)
For your safety
Intended use
The device is designed only for use in industrial areas.
The device is classified as simple apparatus according to EN 60079-14 and
may be used only as part of the excom I/O system for intrinsically safe
circuits with the approved module racks MT... (PTB 00 ATEX 2194 U or IECEx
PTB 13.0040 U).
The resistor module suppresses error messages for excom input modules in
hazardous areas.
Any other use is not in accordance with the intended use. Turck accepts no
liability for any resulting damage.
General safety instructions
■
The device must only be mounted, installed, operated and maintained by
trained and qualified personnel.
■
The devices only meet the EMC requirements for industrial areas and are
not suitable for use in residential areas.
■
Only combine devices if their technical data renders them suitable to be
used in a combined manner.
Notes on explosion protection
■
When using the device in Ex circuits, the user must also have knowledge
of explosion protection (EN 60079-14, etc.).
■
Observe national and international regulations for explosion protection.
■
Use the device only within the permissible operating and ambient condi-
tions (see technical data).
Product description
Device overview
See Fig. 1
