Integrating an excom system in ABB Compact Control Builder M
Defining the GSD signal
To set the diagnostics settings for all modules:
„ Right-click the configured ChannelDiagCommon.
„
Click Apply to all.

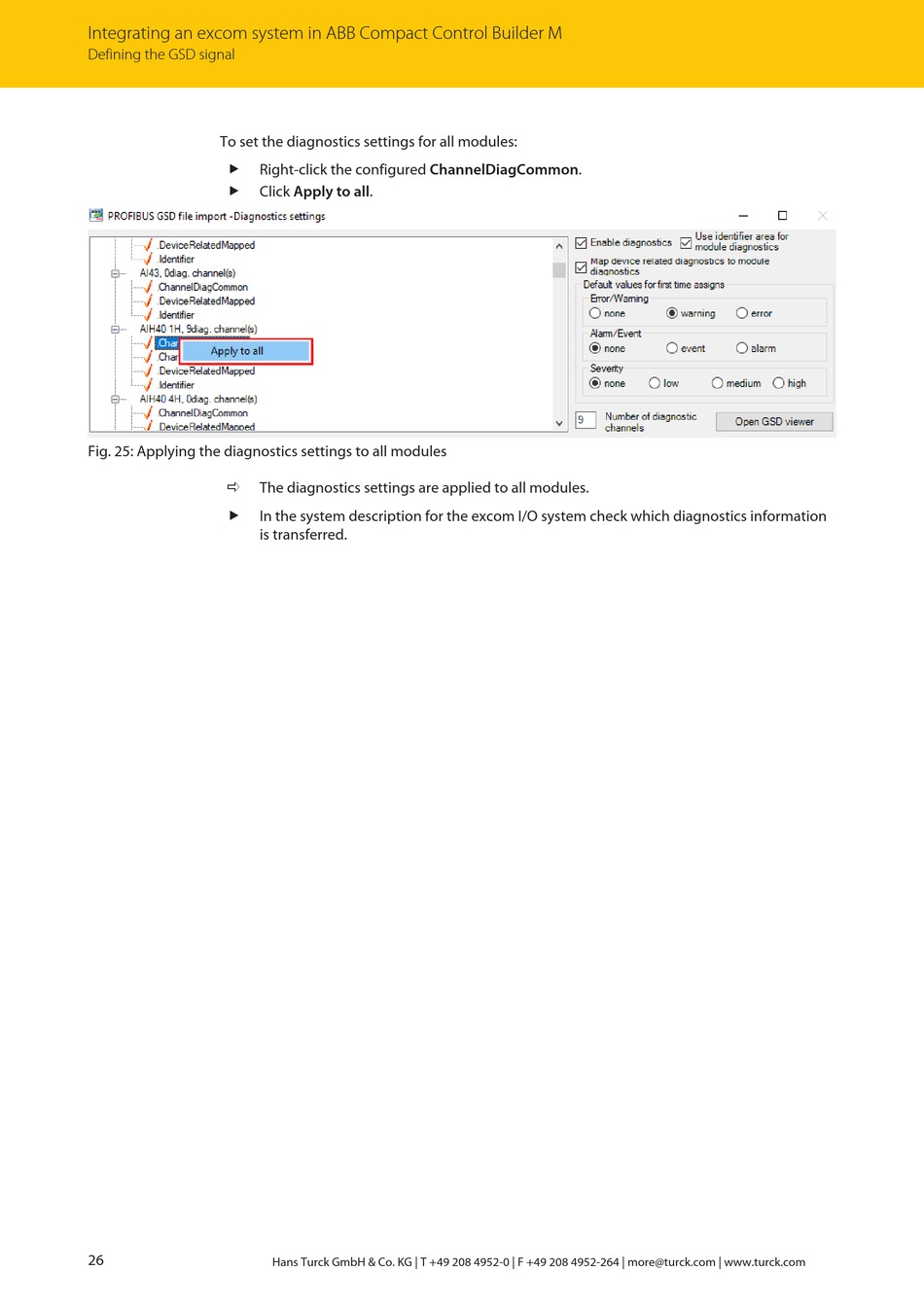

Fig. 25: Applying the diagnostics settings to all modules
a
The diagnostics settings are applied to all modules.
„
In the system description for the excom I/O system check which diagnostics information
is transferred.
