Integrating an excom system in ABB Compact Control Builder M
Defining the GSD signal
„
Select 15 bits for channel 1 in the PROFIBUS GSD file import – In area of AIH40 1H
window at Input area. In this example, Bit 0...6 of Byte 0 and Bit 0...7 of Byte 1.
„ The drop-down menu opens automatically. Select UInt 16=>DInt.

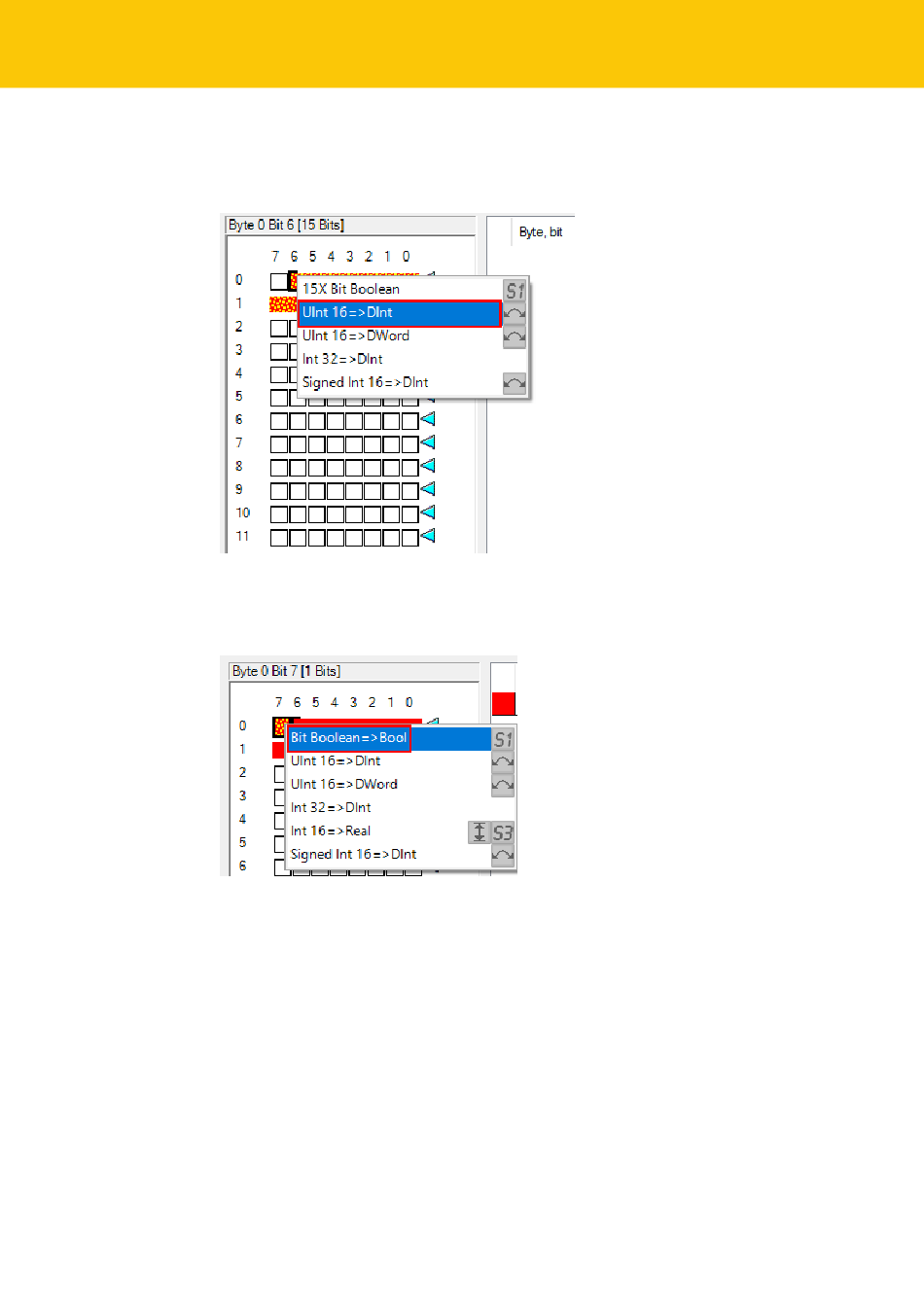

Fig. 11: Selecting UInt 16=>DInt in the drop-down menu
„ Select Bit 7 of Byte 0 as the status bit.
„
The drop-down menu opens automatically. Select Bit Boolean =>Bool.
Fig. 12: Selecting Bit Boolean =>Bool in the drop-down menu
„
Configure the other three channels with the remaining bits following the same
procedure. Click OK.
