turck excom I/O System Integration Manual page 19

„

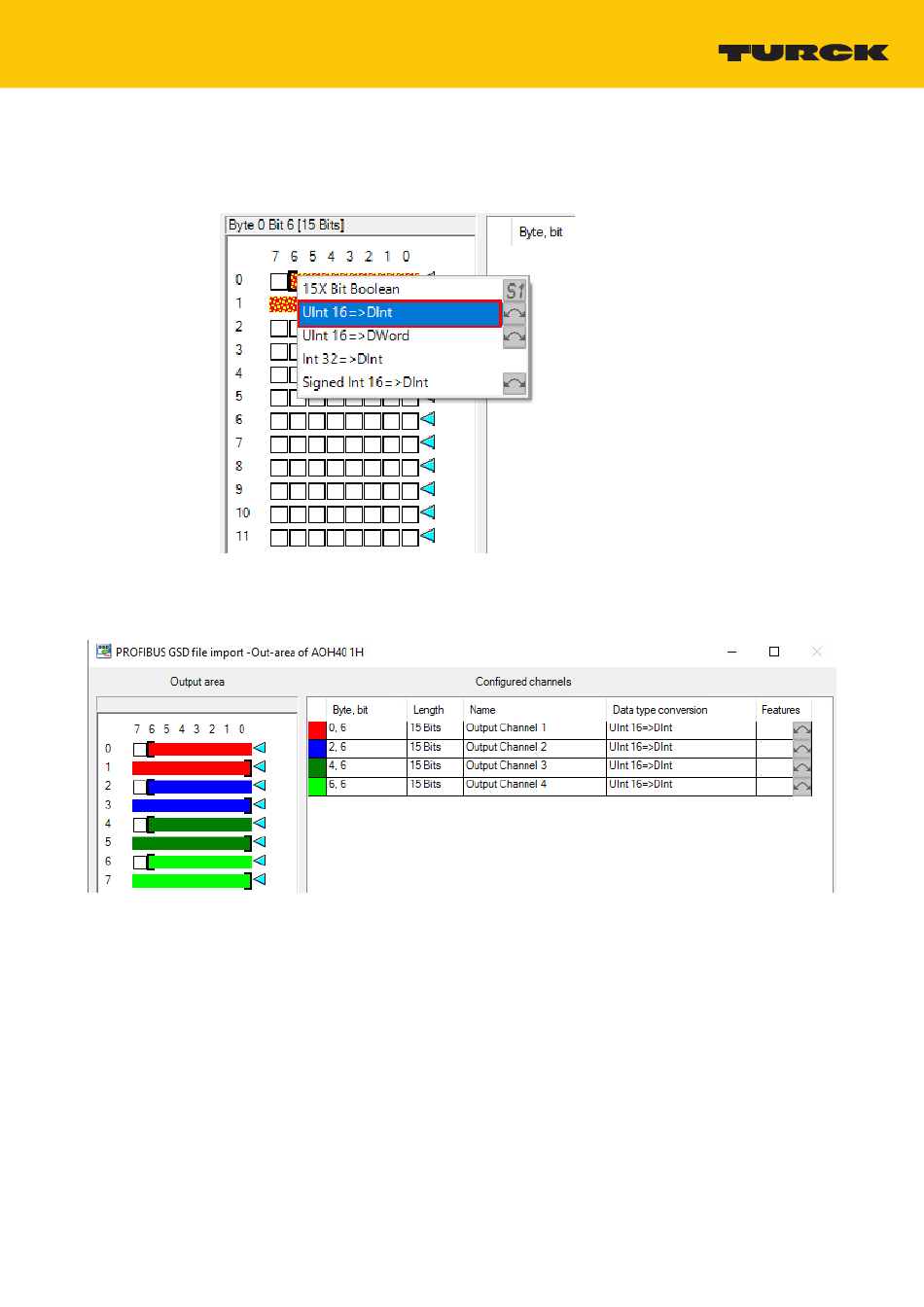

Select 15 bits for channel 1 in the PROFIBUS GSD file import – Out area of AOH40
window at Output area. In this example, Bit 0...6 of Byte 0 and Bit 0...7 of Byte 1.
„ The drop-down menu opens automatically. Select UInt 16=>DInt.
Fig. 15: Selecting UInt 16=>DInt in the drop-down menu
„ Configure the other channels with the remaining bits following the same procedure.
Click OK.
Fig. 16: AOH40 – all channels are set
V01.00 | 2022/06
19
