Cleco 55NJLT Operation & Service Manual page 9

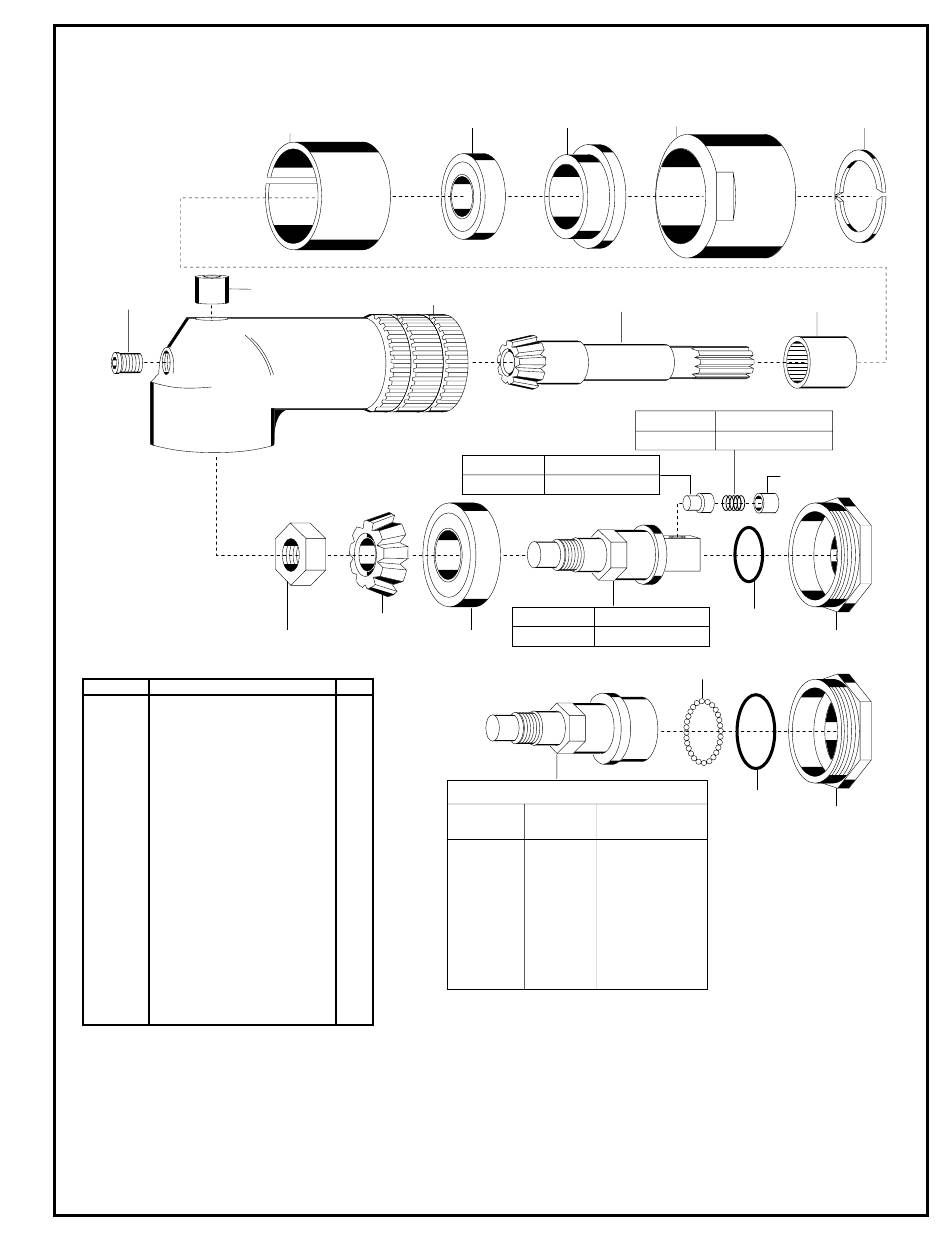

"P" RIGHT ANGLE HEAD
382633
864105
867546
203248
PARTS LIST — "P" Right Angle Head
PART NO. NAME OF PART
203247 Angle Head
203248 Spindle Retainer Nut
203249 1/2" Sq. Dr. Spindle
203250 Spindle Cap
203251 Driven Gear (14T)
203252 Pinion Gear (9T)
203253 Pinion Gear Needle Bearing
203439 3/8" Sq. Dr. Spindle
382633 Spline Protector
842517 Ball Bearing
844011 Socket Lock Pin
844013 Spring Retainer
844014 Lock Pin Spring
844016 Socket Lock Pin
844017 Lock Pin Spring
847272 "O"-Ring 5/8" x 3/4"
864105 Needle Cap Bearing
867520 Housing Make-Up Plate*
867521 Housing Lock Nut*
867522 Housing Clamp Ring*
867546 Grease Plug
* Denotes parts not included in subassemblies
listed below.
The "P" right angle gears can be purchased as a
set using Part No. 201376.
The "P" right angle head 1/2" sq. dr. can be
purchased as a subassembly using Part No.
201373.
The "P" right angle head 3/8" sq. dr. can be
purchased as a subassembly using Part No.
201464.
842517
203247
844016 3/8" SQ. DR.
844011 1/2" SQ. DR.
203251
842517
QTY.
1
1
1
1
1
1
1
FLUSH SOCKET SPINDLE
1
SIZE
1
2
10mm
1
11mm
1
13mm
1
1 14mm
1
15mm
1
16mm
1
17mm
1
9/16"
1
1
1
867520 867521
203252
844017 3/8" SQ. DR.
844014 1/2" SQ. DR.
203439 3/8" SQ. DR.
203249 1/2" SQ. DR.
842980
SPINDLE CONVERSION
PART NO. KIT* PART NO.
203766 201512
203767 201513
203768 201514
203769 201515
203770 201516
203962 201569
203771 201517
203807 201528
867522
203253
844013
847272
203250
847445
203772
*Conversion kit contains all
parts needed to convert a
"P" right angle head to flush
socket operation.
9
