Cleco 55NJLT Operation & Service Manual page 10

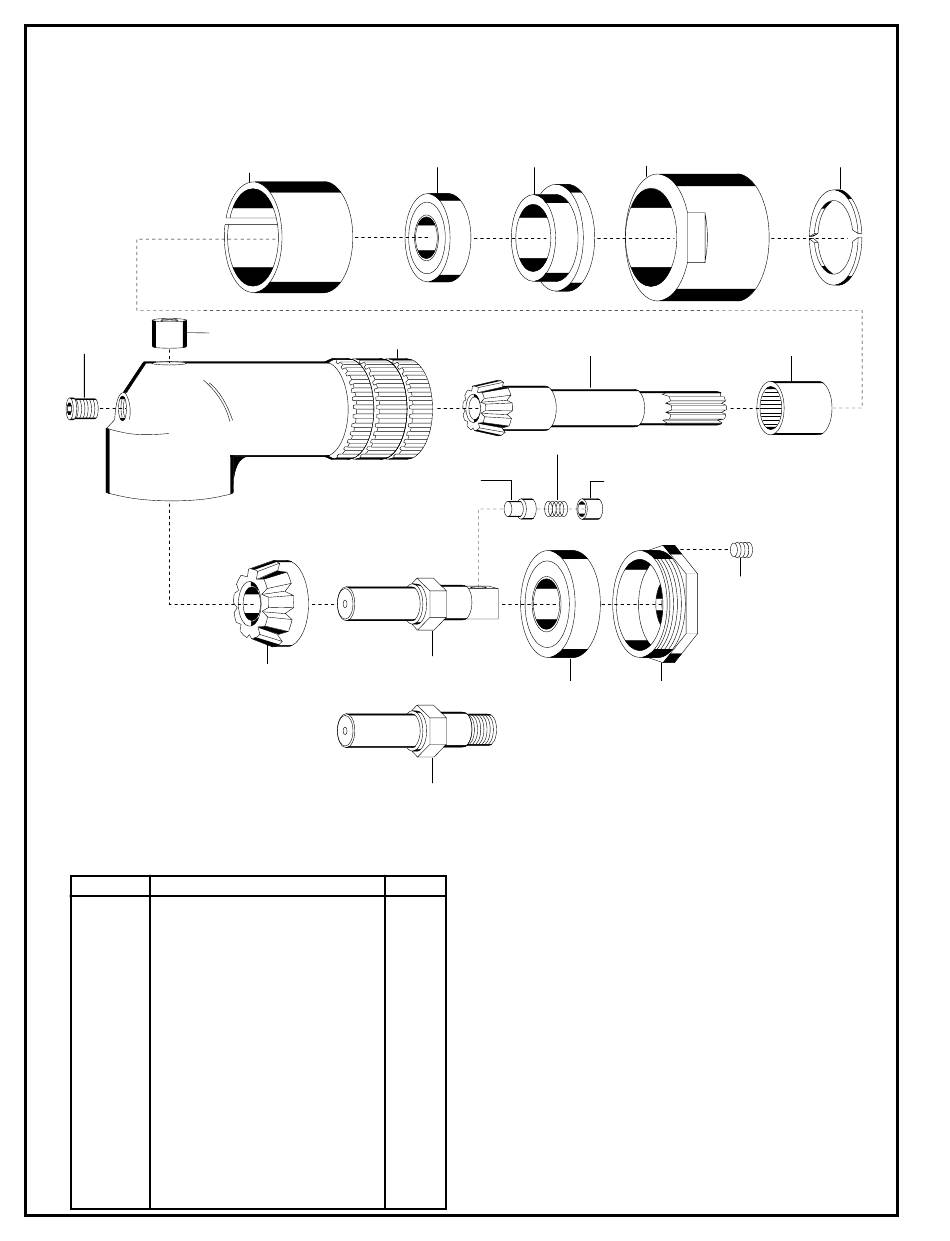

"T" RIGHT ANGLE HEAD
867546
PARTS LIST—"T" Right Angle Head
Part No.
382633 Spline Protector
842517 Ball Bearing
844011 Socket Lock Pin
844013 Spring Retainer
844014 Lock Pin Spring
867507 "T" Right Angle Head
867509 Bearing Cap (incl. 867997)
867510 l/2" Sq. Dr. Spindle (incl.
844011, 844013, 844014-l)
867511 "T" Pinion Gear
867512 Driven Gear
867520* Housing Make-Up Plate
867521* Housing Lock Nut
867522* Housing Clamp Ring
867546 Grease Plug
867547 Spindle Ball Bearing
867548 Pinion Needle Bearing
867997 Bearing Cap Set Screw
882661 Spindle Needle Bearing
10
382633
882661
867507
867512
1/2 - 20 Thd.
DRILL SPINDLE
Name of Part
842517 867520
867511
844014
844011
867510
867547
867787
* Denotes parts not included in subassemblies listed below.
Qty.
The 'T' right angle gears can be purchased as a set using
1
Part No. 861478.
1
The "T" right angle head can be purchased as a subassembly using
1
Part No. 861496.
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
867521
867548
844013
867997
867509
867522
